Allen-Bradley 1762-OF4 Analog Output Module – Obsolete MicroLogix Spare Part

Technical Dossier

Product Details And Specifications

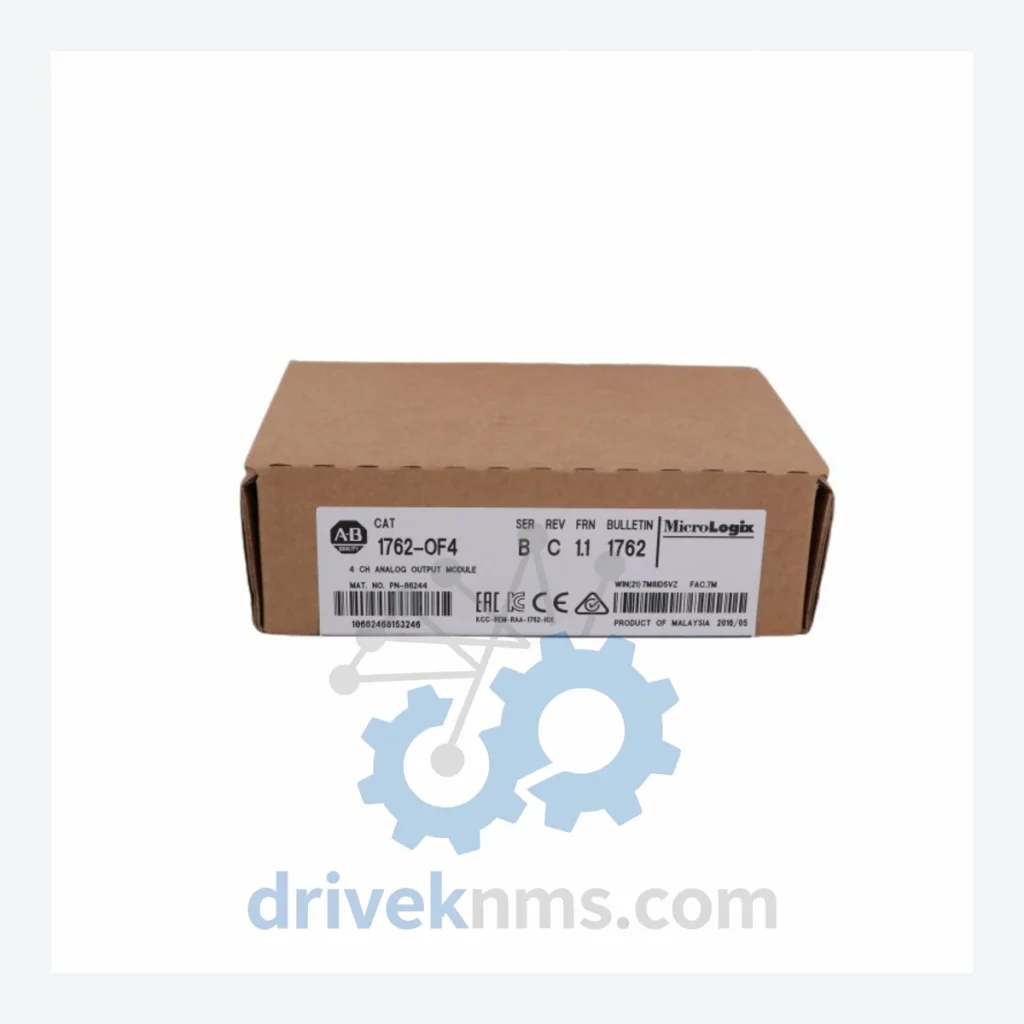

Allen-Bradley 1762-OF4 Analog Output Module – Obsolete MicroLogix Spare Part

DriveKNMS maintains sourced inventory of the 1762-OF4 for facilities that cannot afford to treat a discontinued module as a reason to retire an otherwise productive system.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The MicroLogix 1200 and 1500 platforms were deployed extensively throughout the 2000s and early 2010s in food and beverage, water treatment, material handling, and light manufacturing. Many of these installations remain operational today — not because of inertia, but because the control logic embedded in these systems represents years of process tuning that cannot be trivially migrated.

The 1762-OF4 sits at the intersection of analog process control and the MicroLogix expansion bus. It handles the 4–20 mA and voltage output signals that drive variable-speed drives, control valves, and proportional actuators. There is no plug-compatible substitute from within the current Rockwell catalog. Any replacement requires a controller platform change, which cascades into I/O module replacement, software migration from RSLogix 500 to Studio 5000, and in many cases, a full panel redesign.

Condition & Reliability Assurance

Sourcing discontinued industrial components from the secondary market carries inherent risk. DriveKNMS applies a structured 5-step qualification process to every 1762-OF4 unit before it is offered for sale:

• Visual and mechanical inspection: Housing integrity, connector pin condition, and label verification against known genuine part markings.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in modules of this vintage. Units showing signs of capacitor bulge, leakage, or ESR deviation are rejected.
• Firmware version verification: Where accessible, firmware revision is confirmed against documented compatible versions for MicroLogix 1200 and 1500 host controllers.
• Pin and connector corrosion inspection: Expansion bus connector pins are inspected under magnification for oxidation, pitting, or mechanical deformation that would cause intermittent communication faults.
• Functional output channel test: Each of the four output channels is exercised across the full voltage and current output range to confirm linearity and channel isolation.

Units that do not pass all five stages are not offered for sale. Condition is disclosed at the time of quotation: new-in-box (NIB), new-surplus (open box, unused), or professionally refurbished.

Key Features for System Maintenance

How do I confirm the unit is genuine and not counterfeit?
All units are inspected against Rockwell Automation's published part marking standards. Serial number format, date code, and label typography are verified. We do not source from regions or channels with documented counterfeit risk for this product family.

Can this module be used with MicroLogix 1100?
The 1762 expansion bus is not supported by the MicroLogix 1100. The 1762-OF4 is compatible with MicroLogix 1200 and MicroLogix 1500 only.
