The Evolution of MicroLogix 1400 Architecture

The MicroLogix 1400 was introduced by Rockwell Automation circa 2008 as a successor to the MicroLogix 1200, addressing demand for embedded Ethernet/IP connectivity and expanded analog I/O without migrating to the CompactLogix platform. The core CPU architecture is based on a 32-bit processor running RSLogix 500 / Studio 5000 Logix Designer (via CCW — Connected Components Workbench) firmware. Key architectural milestones include:

Generation 1 (FRN 1.x – 5.x): Initial release with embedded 10/100 Ethernet, RS-232 (Channel 0), RS-232/485 (Channel 1), and 6 analog I/O channels. Data logging via microSD card introduced. Modbus RTU master/slave support added in early firmware revisions.

Generation 2 (FRN 6.x – 21.x): Expanded PID instruction set, enhanced data logging triggers, and improved EtherNet/IP explicit messaging. Firmware 21 represents the final major feature release. Compatibility with 1762-series MicroLogix 1200 expansion I/O modules is maintained throughout all revisions, allowing up to 7 expansion modules for a maximum of 256 I/O points.

End-of-Life Transition: Rockwell Automation announced the MicroLogix 1400 series as end-of-life (EOL) with last-time-buy windows closing progressively from 2022 onward. The recommended migration path is to the Micro820 (2080-series) or Micro850 (2080-series) controllers for new designs, or CompactLogix 5380 for applications requiring higher throughput. However, the installed base remains substantial, and spare parts demand for 1766-series controllers and 1762-series expansion modules continues across maintenance and MRO procurement channels.

MicroLogix 1400 Full Catalog & Functionalities (SKU List)

The following catalog covers the primary 1766-series base units and 1762-series expansion I/O modules compatible with the MicroLogix 1400 platform. All SKUs are genuine Rockwell Automation / Allen-Bradley part numbers.

Base Controller Units (1766-series):

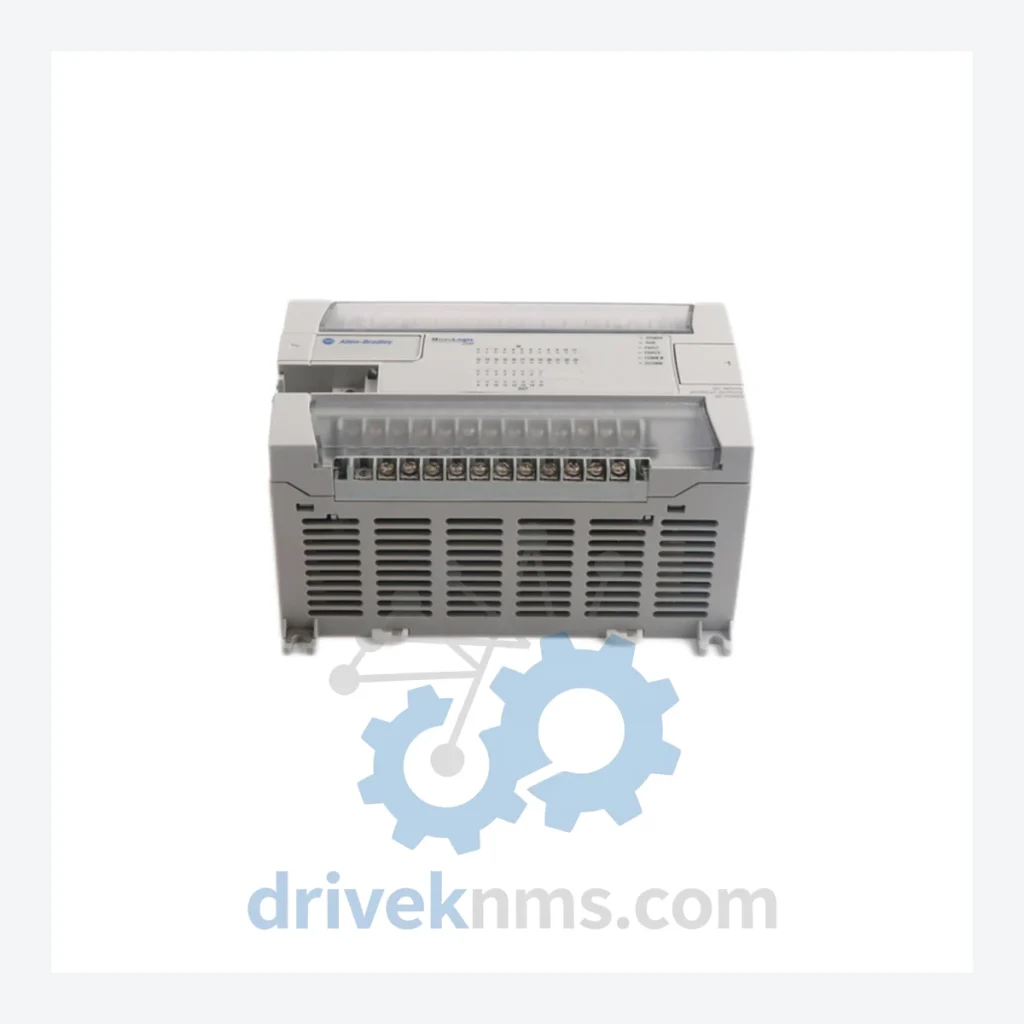

1766-L32AWA: 20 DI / 12 relay DO, 120/240V AC power, embedded Ethernet, RS-232/485, 6 analog I/O, microSD slot — standard AC-powered relay output base unit.

1766-L32BWA: 20 DI / 12 relay DO, 24V DC power supply input, relay outputs — DC-powered variant of the relay output base unit.

1766-L32BXB: 20 DI / 12 transistor (sourcing) DO, 24V DC power — high-speed transistor output base unit for pulse train and encoder applications.

1766-MM1: 1 MB microSD memory card — factory-supplied data logging and recipe storage media for 1766-series controllers.

Expansion I/O Modules (1762-series — MicroLogix 1200/1400 compatible):

1762-IA8: 8-point 120V AC digital input expansion module — extends AC input capacity for field device integration.

1762-IQ8: 8-point 24V DC digital input expansion module — standard DC input expansion for sensor arrays.

1762-IQ16: 16-point 24V DC digital input expansion module — high-density DC input for large I/O count applications.

1762-OA8: 8-point 120/240V AC digital output expansion module — relay-free AC output for solenoid and contactor control.

1762-OB8: 8-point 24V DC sourcing digital output expansion module — transistor output for DC load switching.

1762-OB16: 16-point 24V DC sourcing digital output expansion module — high-density DC output expansion.

1762-OW8: 8-point relay output expansion module — dry contact relay outputs for mixed voltage load control.

1762-OW16: 16-point relay output expansion module — high-density relay output for multi-circuit switching.

1762-IF2OF2: 2 analog inputs / 2 analog outputs expansion — 0–10V / 4–20mA configurable analog I/O for process variable control.

1762-IF4: 4-channel analog input expansion module — 0–10V / 4–20mA / ±10V configurable inputs for multi-sensor process monitoring.

1762-OF4: 4-channel analog output expansion module — 0–10V / 4–20mA configurable outputs for multi-loop control.

1762-IT4: 4-channel thermocouple / RTD input expansion module — direct thermocouple (J, K, T, E, R, S, B) and RTD (Pt100) input for temperature measurement.

1762-IQ8OW6I: 8 DC inputs / 6 relay outputs combination module — mixed I/O expansion for compact panel designs.

1762-NC4: 4-axis high-speed counter / encoder input module — quadrature encoder, pulse, and frequency measurement for motion feedback applications.
