Allen-Bradley Stratix 5700 Modules – 1783-BMS10CGP

Technical Dossier

Product Details And Specifications

Allen-Bradley Stratix 5700 Series Technical Notes

The Evolution of Stratix 5700 Architecture

The Stratix 5700 was introduced as a successor to the Stratix 6000 and Stratix 8000 platforms, consolidating managed switching capability into a unified, DIN-rail and panel-mount form factor optimized for control cabinet integration. Early firmware revisions (pre-15.x) supported basic IGMP snooping, VLAN segmentation, and QoS prioritization for EtherNet/IP traffic. Subsequent firmware generations introduced NAT routing, integrated firewall rules, and enhanced DHCP server functionality, progressively reducing the need for separate network appliances in OT environments.

The architecture is built on a Cisco IOS-based software stack, co-developed with Cisco under the Rockwell-Cisco Converged Plantwide Ethernet (CPwE) alliance. This gives Stratix 5700 units full CLI compatibility with Cisco IOS commands while adding Rockwell-specific Add-On Profiles (AOPs) for seamless integration into Studio 5000 Logix Designer. Hardware revisions introduced SFP fiber uplink options, PoE+ variants, and conformal coating for harsh-environment deployment. As of 2024, the Stratix 5700 series has entered a mature/end-of-life transition phase for select SKUs, with Rockwell directing new designs toward the Stratix 5200 platform. However, the installed base remains extensive, and long-term maintenance support — including spare module sourcing — remains commercially critical through at least 2035 for most plant operators.

Stratix 5700 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core Stratix 5700 product range, classified by port count, uplink type, and feature set. All models support EtherNet/IP, IGMP v1/v2/v3, VLAN (802.1Q), QoS (802.1p/DSCP), RSTP/MSTP, and DLR unless otherwise noted.

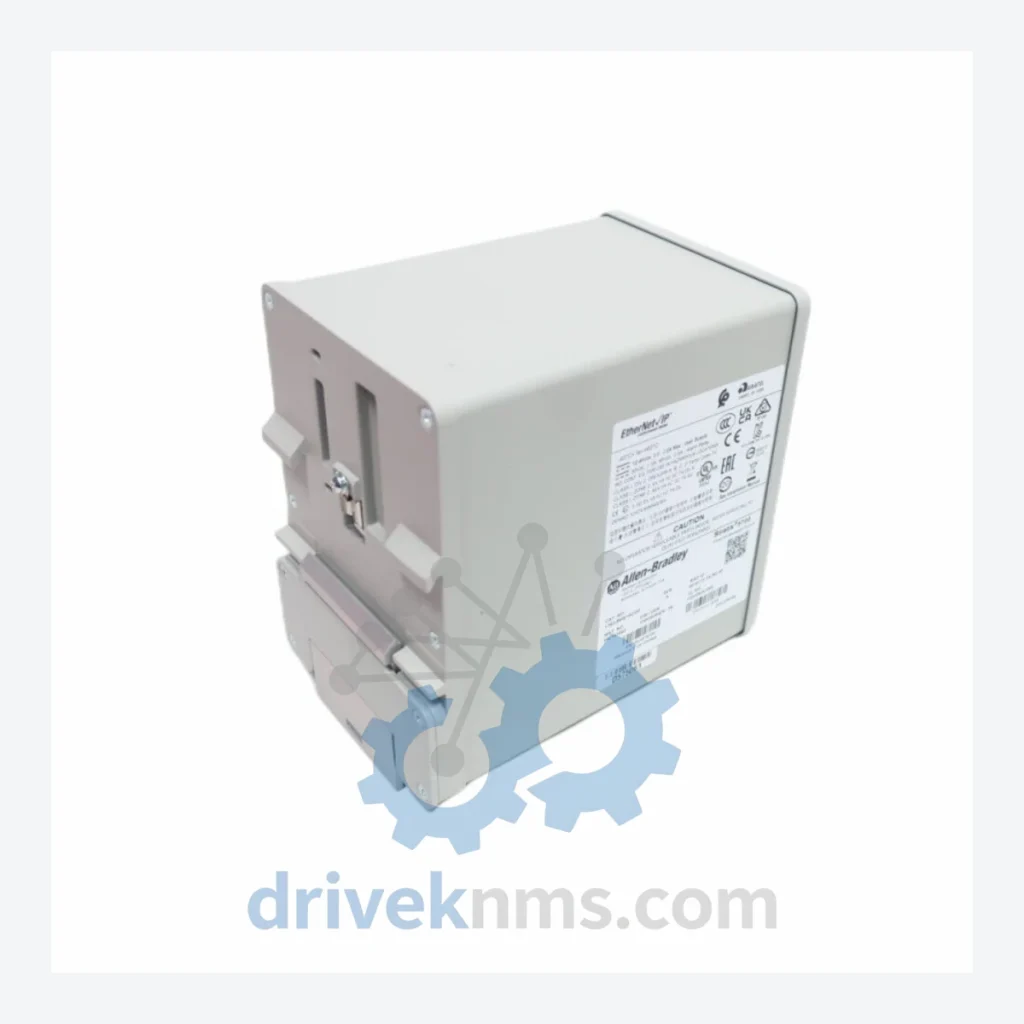

1783-BMS10CGP: 10-port managed switch, 8x 10/100/1000 copper + 2x GE SFP combo uplinks, standard feature set, DIN-rail mount.
1783-BMS10CGN: 10-port managed switch, 8x copper + 2x GE SFP, NAT routing enabled, enhanced security feature set.
1783-BMS10CGR: 10-port managed switch with conformal coating, rated for extended temperature and humidity environments.
1783-BMS20CGL: 20-port managed switch, 16x 10/100/1000 copper + 4x GE SFP combo uplinks, Layer 2 managed.
1783-BMS20CGN: 20-port managed switch with NAT routing, integrated firewall, DHCP server, suitable for cell/area zone segmentation.
1783-BMS20CGR: 20-port conformal-coated variant, extended environmental rating, DIN-rail mount.
1783-BMS06SL: 6-port compact managed switch, 4x 10/100 copper + 2x 100 Mbps SFP fiber uplinks, space-constrained panel applications.
1783-BMS06SA: 6-port managed switch, all copper, standard feature set, entry-level Stratix 5700 configuration.

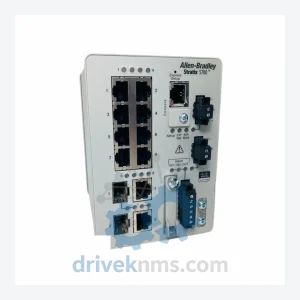

1783-BMS10CGL: 10-port managed switch, 8x copper + 2x GE SFP, Layer 2 only, no NAT, cost-optimized variant.
1783-BMS20CGA: 20-port all-copper managed switch, no SFP uplinks, standard feature set, high-density copper environments.
1783-BMS10CGP-DNA: 10-port variant with Cisco DNA license entitlement for advanced network analytics integration.
1783-BMS20CGP: 20-port managed switch, 16x copper + 4x GE SFP combo, PoE+ capable ports for powered device support.
1783-BMS20CGP-DNA: 20-port PoE+ variant with Cisco DNA license, advanced telemetry and network assurance features.
1783-BMS10CGP-CC: 10-port conformal-coated PoE+ variant, designed for outdoor enclosures and high-humidity industrial zones.
1783-BMS06SGL: 6-port managed switch, 4x copper + 2x GE SFP, compact form factor with gigabit fiber uplink capability.
1783-BMS20SGL: 20-port managed switch, mixed copper/SFP configuration, optimized for fiber backbone ring topologies in large plant networks.
