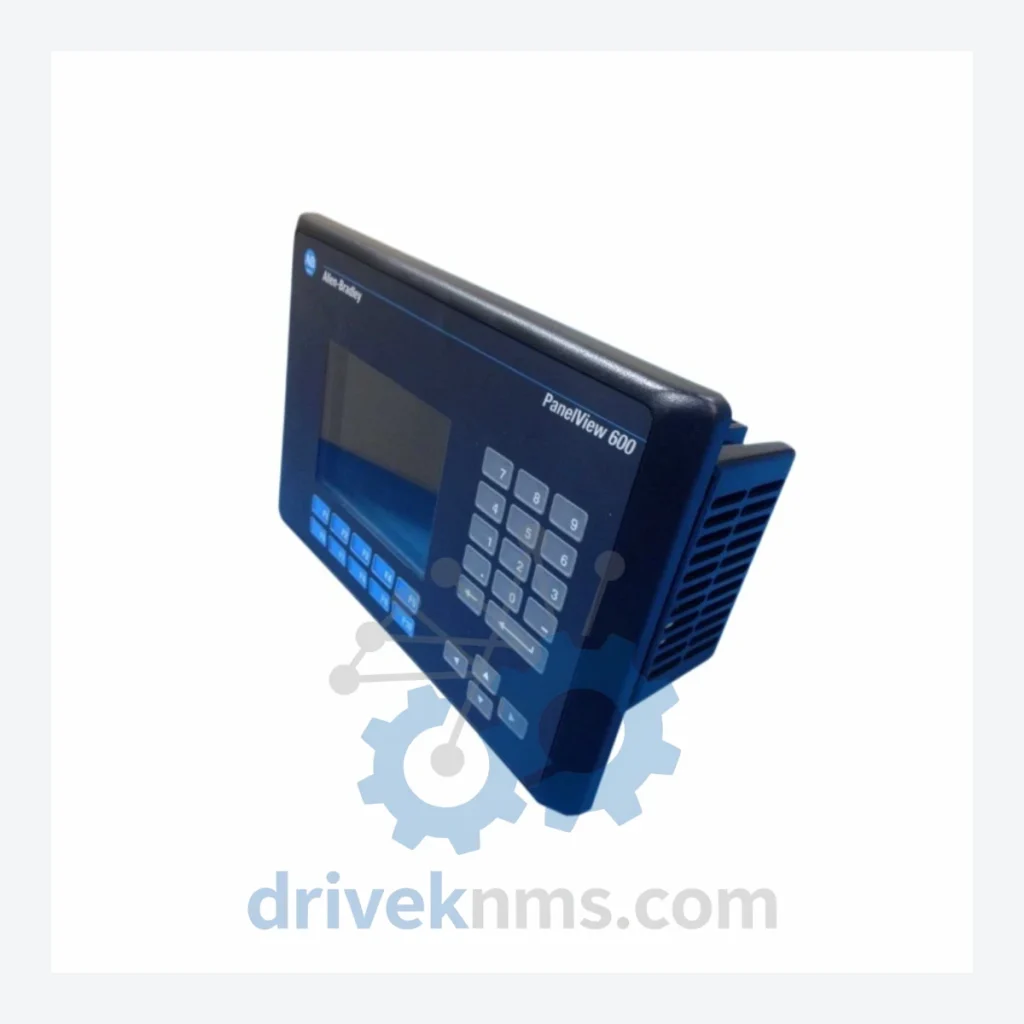

Allen-Bradley PanelView 600 Modules – 2711-K6C9L1

Technical Dossier

Product Details And Specifications

Allen-Bradley PanelView 600 Series Technical Notes

The Allen-Bradley PanelView 600 series, manufactured by Rockwell Automation, is a fixed-panel human-machine interface (HMI) platform with a 6-inch display footprint. It has been deployed across global heavy industry sectors including petrochemical processing plants, oil refineries, nuclear auxiliary systems, pulp and paper mills, and automotive assembly lines. The PanelView 600 occupies a critical position in the Rockwell Automation HMI hierarchy as a mid-range operator terminal designed for machine-level control visualization, replacing earlier PanelView 550 installations and itself succeeded by the PanelView Plus 600 and PanelView Plus 7 Standard platforms. Its installed base remains extensive, with tens of thousands of units still active in legacy DCS and PLC environments worldwide, making spare parts availability a primary operational concern for maintenance engineers.

The Evolution of PanelView 600 Architecture

The PanelView 600 platform was introduced in the early 1990s as part of Rockwell Automation's broader PanelView fixed-panel HMI family. The original architecture used a proprietary DH-485 and DH+ communication backplane, targeting Allen-Bradley SLC 500 and PLC-5 controller ecosystems. As industrial networking evolved, Rockwell expanded the series to support Remote I/O (RIO), DF1 serial, and eventually DeviceNet and EtherNet/IP communication adapters, allowing integration with ControlLogix and CompactLogix platforms.

Display technology progressed from monochrome LCD (keypad-only models) through grayscale touchscreen variants to full color TFT displays. The keypad interface models — including the 2711-K6C9L1 — use a membrane keypad overlay with function keys, numeric entry, and navigation controls, eliminating the need for a touchscreen digitizer and improving reliability in high-vibration environments. The series entered end-of-life status, with Rockwell Automation issuing discontinuation notices, making long-term maintenance support and certified refurbished unit sourcing the primary procurement strategy for facilities that cannot justify a full HMI migration project.

PanelView 600 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified PanelView 600 product range. Models are classified by display type (Color/Grayscale/Monochrome), interface type (Keypad/Touch/Keypad+Touch), and communication protocol.

Color Keypad Models:

2711-K6C9L1: 6-inch color keypad, EtherNet/IP, 24VDC, Series L, catalog revision 1
2711-K6C9: 6-inch color keypad, EtherNet/IP, 24VDC, standard catalog base
2711-K6C8: 6-inch color keypad, DeviceNet communication, 24VDC input
2711-K6C1: 6-inch color keypad, DH-485 serial communication, 24VDC
2711-K6C2: 6-inch color keypad, DH+ communication, 24VDC
2711-K6C3: 6-inch color keypad, Remote I/O (RIO) communication, 24VDC
2711-K6C5: 6-inch color keypad, DF1 full-duplex serial, 24VDC

Color Touch Models:

2711-T6C9L1: 6-inch color touchscreen, EtherNet/IP, 24VDC, Series L
2711-T6C8: 6-inch color touchscreen, DeviceNet, 24VDC
2711-T6C1: 6-inch color touchscreen, DH-485 serial, 24VDC
2711-T6C2: 6-inch color touchscreen, DH+ communication, 24VDC
2711-T6C3: 6-inch color touchscreen, Remote I/O, 24VDC

Grayscale Keypad Models:

2711-K6C20: 6-inch grayscale keypad, DH-485, 24VDC, standard catalog
2711-K6C21: 6-inch grayscale keypad, DH+, 24VDC
2711-K6C22: 6-inch grayscale keypad, Remote I/O, 24VDC

Monochrome / Keypad+Touch Combination Models:

2711-B6C1: 6-inch monochrome keypad+touch, DH-485, 24VDC — early-generation base model
2711-B6C2: 6-inch monochrome keypad+touch, DH+, 24VDC
2711-B6C3: 6-inch monochrome keypad+touch, Remote I/O, 24VDC

Sourcing Hard-to-Find & Obsolete PanelView 600 Parts

Customers requiring specific firmware versions, catalog series designations, or matched replacement units for existing panel configurations are encouraged to submit detailed specifications directly to the procurement team.

Quality Control for the PanelView 600 Range

Each PanelView 600 unit processed by DriveKNMS undergoes a structured inspection and functional verification protocol prior to dispatch. The procedure addresses the specific failure modes documented for this platform:

Display verification: Full-screen pixel mapping test to identify dead pixels, backlight degradation, and color calibration drift on TFT panels. Grayscale uniformity check on non-color variants.
Keypad membrane integrity: Each key actuation is tested for contact resistance and tactile response. Membrane overlay adhesion is inspected for delamination, a common failure mode in high-humidity environments.
Communication port testing: Protocol-specific loopback tests are performed on DH-485, DH+, RIO, DeviceNet, and EtherNet/IP ports using matched controller hardware to verify signal integrity and baud rate compliance.
Power supply validation: Input voltage tolerance is verified across the rated 24VDC range. Inrush current and ripple measurements are recorded.
Firmware and application memory: Internal EEPROM and flash memory are verified for data retention. Units are shipped with factory-default firmware unless a specific revision is requested.
Environmental inspection: Enclosure sealing, connector pin condition, and mounting hardware are inspected. Units showing corrosion, cracked bezels, or compromised IP ratings are quarantined and not dispatched.
