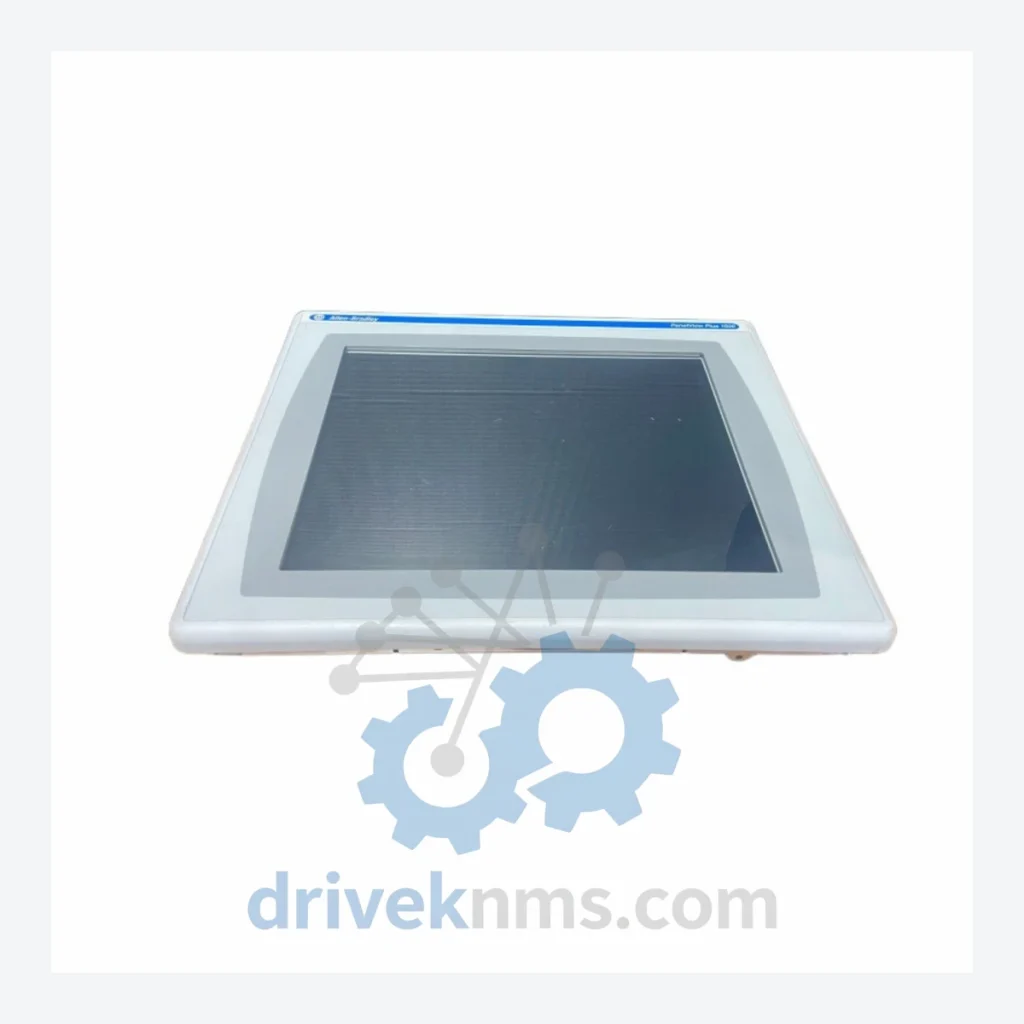

Model: 2711P-RDT15C
Product Overview
Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.
Datasheet Preview
Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.
Commercial Path
Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.
Technical Dossier
The Allen-Bradley PanelView Plus 1500 series, manufactured by Rockwell Automation, is a 15-inch industrial human-machine interface (HMI) platform deployed across heavy-process industries including petrochemical refineries, nuclear power generation facilities, offshore oil platforms, and continuous-process chemical plants. The 2711P-RDT15C and its variants represent the 15-inch color touch display tier within the broader PanelView Plus 6 and PanelView Plus 7 product families. These terminals operate on Windows CE and Windows Embedded Standard environments, interfacing natively with Allen-Bradley ControlLogix, CompactLogix, MicroLogix, and SLC 500 controllers via EtherNet/IP, DH+, DF1, and DeviceNet communication protocols. Global installed base estimates place PanelView Plus 1500-class terminals in tens of thousands of active industrial sites, many of which are now in long-term maintenance cycles as Rockwell Automation has transitioned its HMI roadmap toward the PanelView 5500 and FactoryTalk Optix platforms.
The PanelView Plus platform was introduced in the early 2000s as a successor to the PanelView Standard and PanelView Enhanced families, consolidating HMI functionality onto a unified Windows CE-based runtime. The 1500-class (15-inch) terminals were positioned as the high-visibility, high-interaction tier for control room and machine-side operator panels requiring large display real estate.
Generation 1 — PanelView Plus (2711P, 2003–2010): Initial release with 256 MB RAM, CompactFlash storage, and support for FactoryTalk View ME 4.x–6.x. Communication options included DH-485, DH+, DF1, EtherNet/IP, and DeviceNet. Display resolution fixed at 1024×768 (XGA) for the 15-inch class.
Generation 2 — PanelView Plus 6 (2711P-RDT15C and variants, 2010–2018): Upgraded processor, expanded RAM to 512 MB, USB host ports added, and FactoryTalk View ME 6.x–8.x compatibility. The 2711P-RDT15C is the definitive catalog number for the 15-inch color touch display in this generation. Keypad, touch+keypad, and touch-only configurations were offered. This generation introduced the standardized 2711P catalog prefix that remains the primary spare parts reference today.
Generation 3 — PanelView Plus 7 Standard / Performance (2711P-T15C21D8S, 2018–present): Transition to Windows Embedded Standard 7, faster processors, SD card storage replacing CompactFlash, and FactoryTalk View ME 9.x–11.x. Rockwell Automation has announced end-of-life timelines for PanelView Plus 6 hardware, making Generation 2 units increasingly dependent on aftermarket spare parts supply chains.
Compatibility Note: PanelView Plus 6 and PanelView Plus 7 applications are not directly cross-compatible without re-compilation in FactoryTalk View Studio. Sites maintaining Generation 2 hardware must source like-for-like replacement units to avoid application migration costs.
The following catalog numbers represent verified Allen-Bradley PanelView Plus 1500-class terminals and directly associated display/communication modules, classified by primary function.
15-Inch Color Touch Display Terminals
2711P-RDT15C: 15" color touch, PanelView Plus 6, EtherNet/IP, DC power input
2711P-RDT15C4: 15" color touch, PanelView Plus 6, EtherNet/IP + DH+/RS-232, DC
2711P-RDT15C4D: 15" color touch, PanelView Plus 6, dual EtherNet/IP ports, DC
2711P-RDT15C4D9: 15" color touch, PanelView Plus 6, dual EtherNet/IP, AC/DC power
2711P-RDT15C4D9L: 15" color touch, PanelView Plus 6, dual EtherNet/IP, logix-optimized firmware
2711P-T15C21D8S: 15" color touch, PanelView Plus 7 Standard, EtherNet/IP, DC power
2711P-T15C21D8S-B: 15" color touch, PanelView Plus 7 Standard, conformal coated variant
2711P-T15C22D9P: 15" color touch, PanelView Plus 7 Performance, dual EtherNet/IP
15-Inch Color Touch + Keypad Combination Terminals
2711P-RDK15C: 15" color touch + keypad, PanelView Plus 6, EtherNet/IP, DC
2711P-RDK15C4: 15" color touch + keypad, PanelView Plus 6, EtherNet/IP + DH+
2711P-RDK15C4D: 15" color touch + keypad, PanelView Plus 6, dual EtherNet/IP
Display & Backlight Replacement Modules
2711P-RP8D: Replacement display assembly for PanelView Plus 6 15" terminals
2711P-RP8: Replacement backlight kit, PanelView Plus 6 15-inch class
2711P-RN15S: Replacement logic module, PanelView Plus 6 15" series
Communication & Expansion Modules
2711P-RN6: EtherNet/IP communication module for PanelView Plus 6
2711P-RN15S2: Serial/DH+ communication expansion, PanelView Plus 6 15"
2711P-RCF8: CompactFlash memory card, 256 MB, PanelView Plus 6 compatible
PanelView Plus 1500-class terminals present specific quality verification challenges due to their integrated touch digitizer, backlight inverter circuitry, and Windows CE/WES7 runtime environment. DriveKNMS applies the following test protocol to all units processed through its facility:
Display Verification: Full-screen pixel mapping test using automated pattern generation to identify dead pixels, backlight uniformity defects, and touch digitizer calibration drift. Acceptance threshold: zero dead pixels in the active display area, touch accuracy within ±2mm across the full 15-inch surface.
Communication Port Validation: Each EtherNet/IP port is tested for 100/1000 Mbps link negotiation, packet integrity under sustained load, and correct MAC address assignment. DH+ and RS-232 ports are validated using loopback test fixtures against known-good protocol frames.
Runtime Environment Integrity: FactoryTalk View ME runtime is verified for correct version, license integrity, and absence of file system corruption. CompactFlash or SD card storage is tested for read/write speed and sector health using industrial-grade diagnostic tools.
Power Supply Cycling: Units are subjected to 50 power-on/power-off cycles with voltage monitoring to verify capacitor health and inrush current behavior within OEM specifications.
Thermal Soak: Functional operation is verified at 0°C and 55°C to confirm performance across the rated operating temperature range of the 2711P-RDT15C (IEC 60068-2-1/2-2 compliant).
Continue The Model Path
Move from this exact model into the matching system hub, brand archive, model-family archive or lifecycle sourcing route before sending a final RFQ list.
Related Paths
Allen-Bradley 2711P-RDT15C SER B is listed for PanelView Plus 1500 RFQ review. Confirm quantity, condition and destination before quotation.
Allen-Bradley 2711P-T19C22D9P is listed for PanelView Plus 7 RFQ review. Confirm quantity, condition and destination before quotation.
Allen-Bradley 2706-M1N1 is listed for 2706 Series RFQ review. Confirm quantity, condition and destination before quotation.
