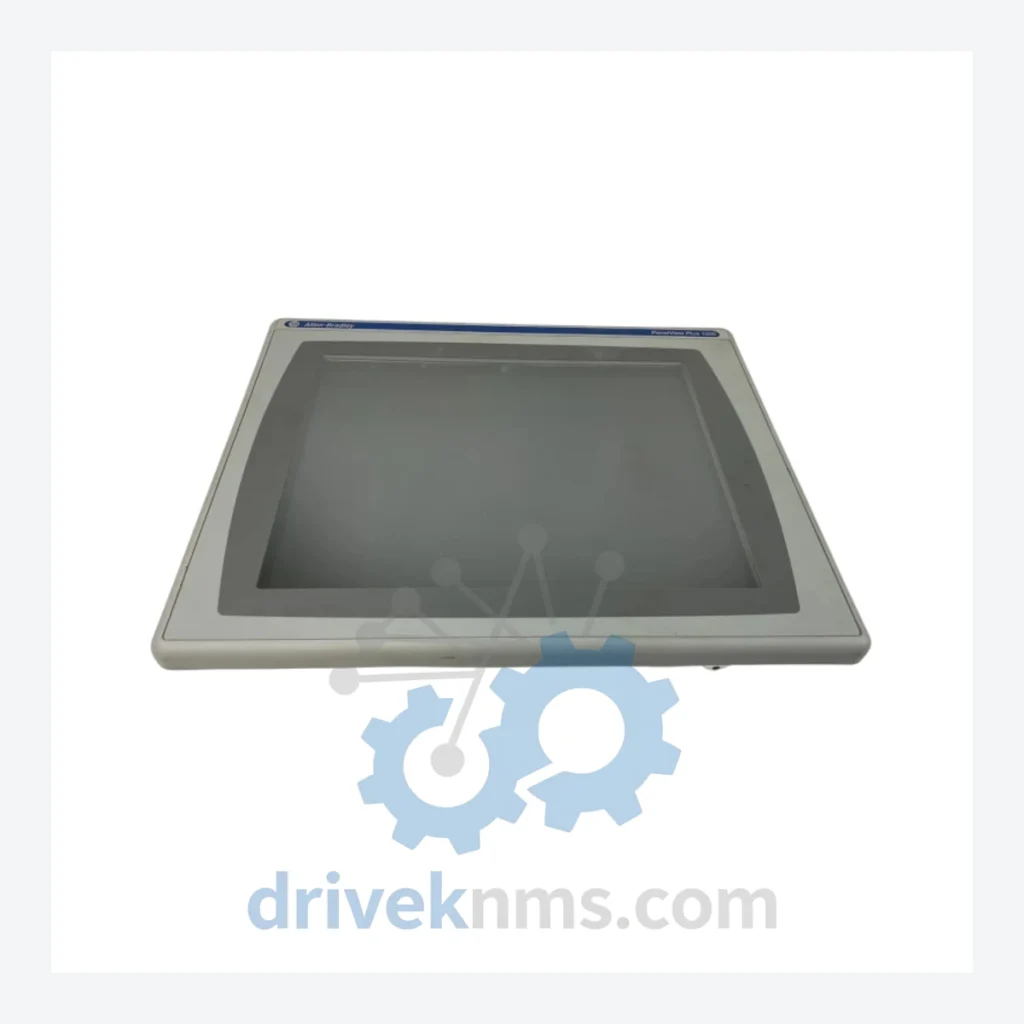

Allen-Bradley 2711P-RDT15C SER B Display Module – Obsolete PanelView Plus 1500 Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 2711P-RDT15C SER B Display Module – Obsolete PanelView Plus 1500 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The PanelView Plus 1500 platform was deployed extensively in discrete manufacturing, automotive assembly, food and beverage processing, and water treatment facilities throughout the 2000s and 2010s. Many of these installations are embedded within larger control architectures — Allen-Bradley ControlLogix or CompactLogix PLCs, DeviceNet or EtherNet/IP networks — where the HMI terminal is not a standalone device but a critical operator interface node. Replacing the terminal is not a matter of swapping hardware. It requires application migration, screen layout redesign, tag remapping, and in many cases, a full Factory Acceptance Test.

The 2711P-RDT15C SER B display module is the component most frequently responsible for terminal failure. Backlight degradation, touch membrane wear, and LCD panel failure are the primary failure modes after 10–15 years of continuous operation. In each case, the display module is the field-replaceable unit — the logic module and power supply remain serviceable. Sourcing a replacement display module extends the operational life of the entire terminal without triggering a platform migration.

How to extend your automation asset life by 5–10 years through strategic spare parts management:

Condition & Reliability Assurance

Discontinued hardware sourced outside the original manufacturer's supply chain requires a structured verification process. DriveKNMS applies a 5-step QA protocol to every 2711P-RDT15C SER B unit before it is offered for sale:

1. Visual and mechanical inspection. Physical examination of the display panel, bezel, touch membrane, and connector pins. Units with cracked panels, delamination, or pin corrosion are rejected at this stage.
2. Electrolytic capacitor assessment. Capacitor aging is the primary cause of latent failure in legacy HMI display modules. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either recapped or rejected.
3. Firmware version verification. The installed firmware version is documented and cross-referenced against known compatibility matrices for PanelView Plus 1500 logic modules. Incompatible firmware versions are flagged prior to shipment.
4. Functional power-on test. Each unit is powered and tested for display uniformity, touch response accuracy, and backlight output. Units that fail functional testing are not offered for sale.
5. Pin and connector integrity check. Connector pins are inspected for oxidation, mechanical deformation, and contact resistance. Affected pins are cleaned and treated where recoverable; units with structural connector damage are rejected.

Key Features for System Maintenance

• Drop-in replacement. The 2711P-RDT15C SER B is a direct physical and electrical replacement for the original display module in PanelView Plus 1500 terminals. No panel modification, no wiring change.
• No application reprogramming required. The display module does not store the HMI application. Replacing it does not affect the FactoryTalk View ME application stored on the logic module. Operator screens, tag databases, and alarm configurations remain intact.
• Avoids engineering re-scoping. A display module replacement is a maintenance task. A platform migration is a capital project. This distinction matters to both maintenance budgets and project approval timelines.
• Preserves operator familiarity. Operators trained on the existing PanelView Plus 1500 interface continue working without retraining. This is a non-trivial operational consideration in facilities with high shift turnover.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for manufacturer markings, label authenticity, and hardware construction consistent with genuine Allen-Bradley production. We do not source from unverified secondary markets. Provenance documentation is available on request.
