ABB 3BHE012276R0101 UAD143A101 Control Module – Obsolete UNITROL Spare Part

Technical Dossier

Product Details And Specifications

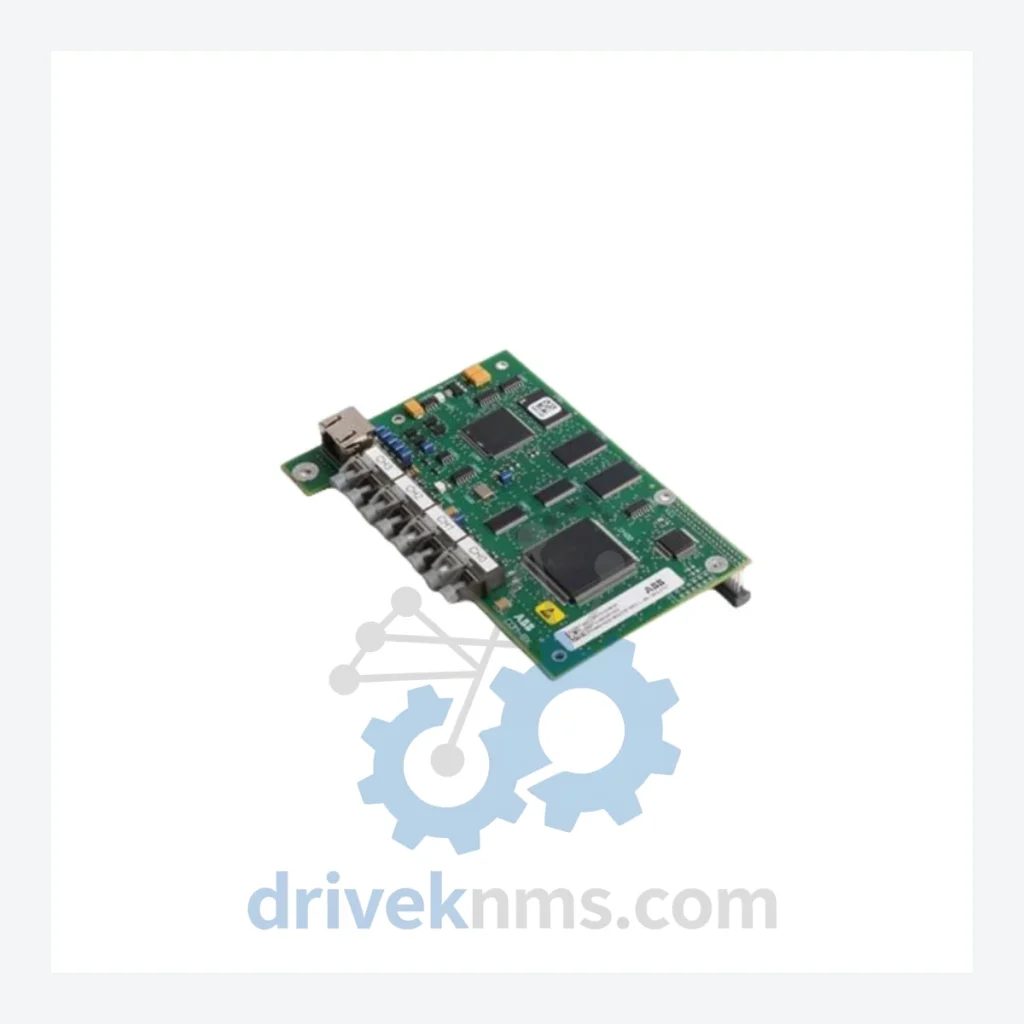

ABB 3BHE012276R0101 UAD143A101 Control Module – Obsolete UNITROL Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage ratings and I/O specifications are not published here to prevent misapplication. Contact our technical team for verified datasheet access before ordering.

Solving the Discontinued Hardware Crisis

The ABB UNITROL excitation control platform has been the backbone of power generation facilities — hydro, thermal, and gas turbine plants — across multiple decades. The UAD143A101 module performs a defined role within this architecture: its removal from the BOM does not make the surrounding system obsolete, but its unavailability on the open market effectively forces operators into that position.

Plant managers facing end-of-life hardware decisions are typically presented with two options: a full system retrofit at capital expenditure levels that require board approval and multi-year planning cycles, or sourcing the discontinued component through a specialist supplier to extend the operational life of the existing asset by 5 to 10 years.

Condition & Reliability Assurance

All ABB 3BHE012276R0101 UAD143A101 units offered by DriveKNMS pass a structured 5-step inspection protocol before dispatch:

• Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy control modules. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.
• Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatible revisions for the target UNITROL platform. Mismatched firmware is flagged before dispatch review.
• Step 3 – Pin and Connector Inspection: All edge connectors and backplane pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned or the unit is rejected.
• Step 4 – Functional Bench Test: Where test infrastructure permits, modules are powered and subjected to basic functional verification. Results are documented.
• Step 5 – Packaging and ESD Protection: Units are packed in anti-static shielding bags with desiccant, inside rigid foam-lined cartons, to prevent transit damage and moisture ingress.

Condition is disclosed accurately — new surplus, tested refurbished, or as-removed — prior to order confirmation. No unit is shipped without a condition declaration.

Key Features for System Maintenance

• Drop-in replacement: The 3BHE012276R0101 UAD143A101 installs directly into the existing UNITROL backplane slot. No hardware modification to the host system is required.
• No reprogramming required: The module retains its hardware configuration. Plant engineers do not need to re-enter system parameters or reconfigure the excitation controller after swap-out, provided firmware versions are matched.
• Avoids engineering retrofit costs: Replacing this module in-kind eliminates the need for a system integrator engagement, new I/O mapping, or control logic revalidation — costs that routinely exceed the value of the module by two orders of magnitude.
• Maintains existing safety certifications: Operating within the original certified hardware configuration preserves the plant's existing safety and compliance documentation. A platform change would require re-certification.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are sourced through documented industrial channels. Physical markings, PCB revision codes, and component dates are inspected for consistency with known genuine ABB production. We do not source from unverified secondary markets.

Q: Can you provide documentation or a datasheet?
A: We can provide available technical documentation upon request. Contact our team before quotation confirmation to confirm compatibility with your specific system revision.
