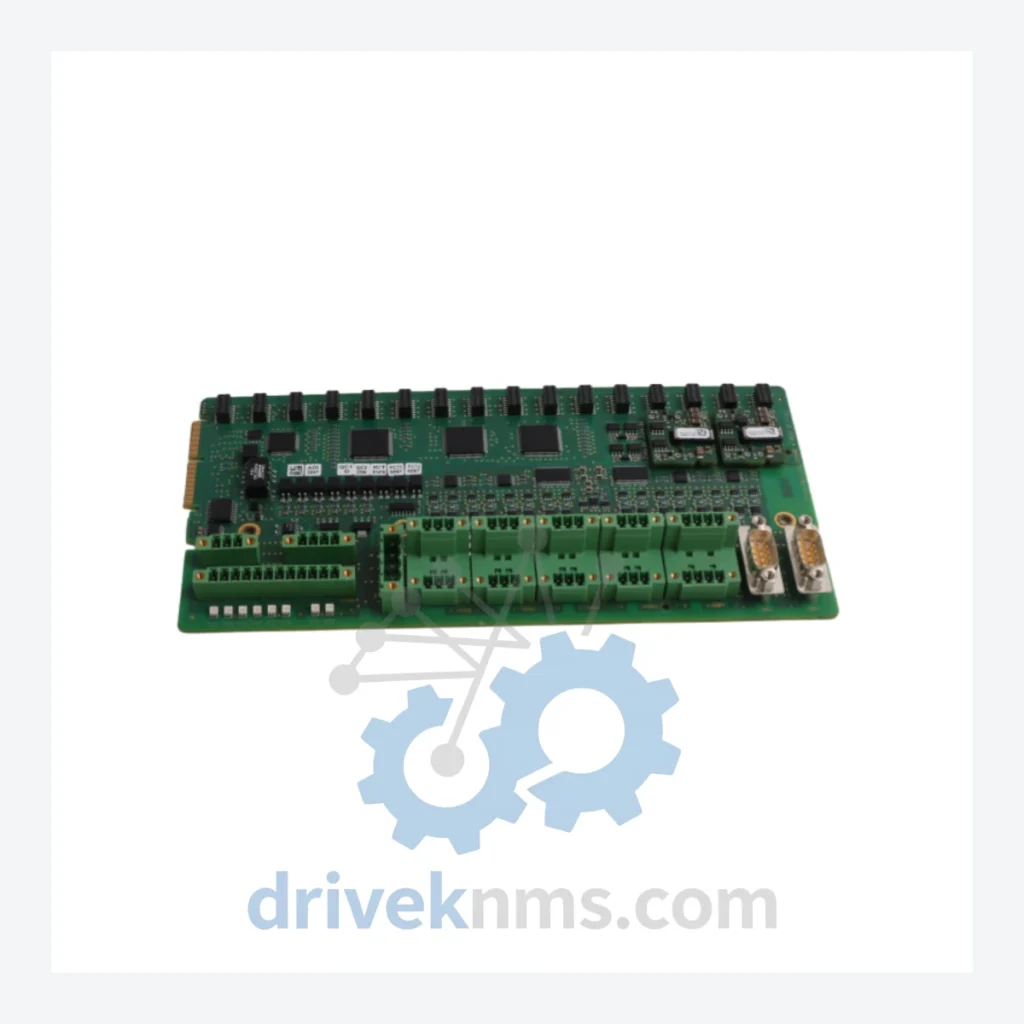

ABB 3BHE027632R0101 Control Board: UNITROL 6000 Series

Technical Dossier

Product Details And Specifications

ABB UNITROL 6000 Series Technical Notes

The ABB UNITROL 6000 is a digital automatic voltage regulator (AVR) and excitation control system deployed across heavy industrial sectors including petrochemical refineries, nuclear power stations, hydroelectric plants, and offshore platforms. Built on ABB's AC800PEC real-time control platform, the UNITROL 6000 series provides closed-loop excitation control for synchronous generators ranging from small industrial units to large utility-scale turbogenerators. Its modular hardware architecture — comprising CPU boards, I/O interface boards, field bus communication adapters, and power supply units — allows site-specific configuration without hardware redesign. The 3BHE027632R0101 is a core control board within this platform, responsible for real-time AVR computation, PSS (Power System Stabilizer) functions, and inter-module communication via the internal backplane bus.

The Evolution of UNITROL 6000 Architecture

The UNITROL 6000 platform succeeded the UNITROL 5000 (analog/hybrid) and UNITROL 1000/3000 (early digital) families. The architectural transition from UNITROL 5000 to UNITROL 6000 introduced full digital signal processing, replacing analog summing amplifiers with DSP-based control loops running at sub-millisecond cycle times. The AC800PEC controller — the computational core shared with ABB's PEC (Power Electronics Controller) product line — provides the real-time OS environment for AVR, PSS, and limiters.

Early UNITROL 6000 hardware (circa 2002–2008) used the UFC760BE101 CPU module paired with first-generation I/O boards such as the SDCS-IOB-3. From 2009 onward, ABB introduced revised board revisions (R0101, R0201) with improved EMC shielding and extended temperature tolerance for tropical and arctic deployment. The 3BHE027632R0101 represents the R0101 revision of the primary control board, optimized for compatibility with both legacy UNITROL 6000 cabinets and the updated UNITROL 6800 transition kits. Firmware compatibility spans UNITROL 6000 software versions 3.x through 6.x, with version 7.x requiring the R0201 or later board revision.

For sites still operating on UNITROL 5000 hardware, ABB has published migration guides (document 3BHS135153 E01) detailing the signal interface adapter requirements when retrofitting UNITROL 6000 boards into existing excitation cubicles.

UNITROL 6000 Full Catalog & Functionalities (SKU List)

CPU / Main Control Boards

• 3BHE027632R0101: Primary AVR control board, AC800PEC platform, R0101 revision, real-time DSP, PSS-ready firmware interface.
• 3BHE027632R0201: Revised control board, R0201 revision, extended firmware compatibility to v7.x, improved EMC rating.
• 3BHE024577R0101: UFC760BE101 CPU module, AC800PEC real-time controller, primary computation unit for UNITROL 6000 cabinet.
• 3BHE022294R0101: SDCS-CON-4 control board, DC drive interface variant, used in excitation thyristor bridge control.
• 3BHE009681R0001: SDCS-CON-2 control board, earlier generation, compatible with UNITROL 6000 retrofit kits.

Digital I/O Modules

• 3BHE013084R0001: SDCS-IOB-3 I/O board, 16 DI / 8 DO, backplane-mounted, status signal interface for generator protection relay.
• 3BHE013085R0001: SDCS-IOB-4 I/O board, extended I/O variant, 24 DI / 16 DO, used in dual-channel redundant configurations.
• 3BHE025541R0001: UFC719BE101 digital I/O interface board, fiber optic isolated, for high-voltage environments.
• 3BHE028959R0001: Analog I/O board, 8 AI / 4 AO, 16-bit resolution, for generator voltage and current transducer inputs.

Communication Adapters

• 3BHE021887R0001: NDBU-95C PROFIBUS DP adapter, connects UNITROL 6000 to plant DCS via PROFIBUS, supports GSD file configuration.
• 3BHE023584R0001: NETA-21 remote monitoring adapter, Ethernet-based, enables ABB DriveWindow Light remote diagnostics.
• 3BHE024852R0001: NCAN-01 CANopen communication module, used in multi-drive synchronization topologies.
• 3BHE031245R0001: NMOD-01 Modbus RTU/TCP gateway module, for legacy SCADA integration.

Power Supply Units

• 3BHE013086R0001: SDCS-POW-4 power supply board, 24 VDC regulated output, internal cabinet supply for control electronics.
• 3BHE025540R0001: UFC760BE102 auxiliary power board, redundant supply input, hot-swap capable in N+1 configurations.
• 3BHE009682R0001: SDCS-POW-1 power supply, earlier generation, compatible with UNITROL 6000 legacy cabinets pre-2008.

Sourcing Hard-to-Find & Obsolete UNITROL 6000 Parts

ABB has formally transitioned several first-generation UNITROL 6000 boards (pre-2008 hardware revisions) to the RFQ availability review and Obsolete lifecycle categories. Affected part numbers include the SDCS-CON-2 (3BHE009681R0001), SDCS-POW-1 (3BHE009682R0001), and early UFC760BE101 variants. ABB's standard recommendation is migration to UNITROL 6800; however, for sites where a full cabinet replacement is not operationally or economically viable, DriveKNMS provides lifecycle extension support through three sourcing channels:

Quality Control for the UNITROL 6000 Range

The UNITROL 6000 control boards present specific test challenges due to their multi-layer backplane bus architecture and real-time firmware dependencies. DriveKNMS applies the following test protocol to all UNITROL 6000 boards prior to dispatch:

• Visual Inspection: IPC-A-610 Class 2 standard. Inspection of solder joints, component seating, connector pin integrity, and conformal coating condition.
• Power-On Functional Test: Board powered via regulated 24 VDC bench supply. Boot sequence verified against known-good firmware log. Watchdog timer response confirmed.
• Backplane Bus Communication Test: Board installed in a UNITROL 6000 test rack. Internal CI522 communication interface verified for correct token-passing behavior on the AC800PEC backplane.
• I/O Channel Verification: All digital and analog I/O channels exercised via automated test script. Channel-to-channel isolation resistance measured (>10 MOhm at 500 VDC).
• Firmware Version Audit: Firmware version read from board EEPROM and logged. Customer notified of version; upgrade service available on request.
• Burn-In: 48-hour thermal cycling at 0°C to +55°C under simulated load. Eliminates infant mortality failures in reconditioned units.

All test results are documented and shipped with the unit. Traceability records retained for 5 years.
