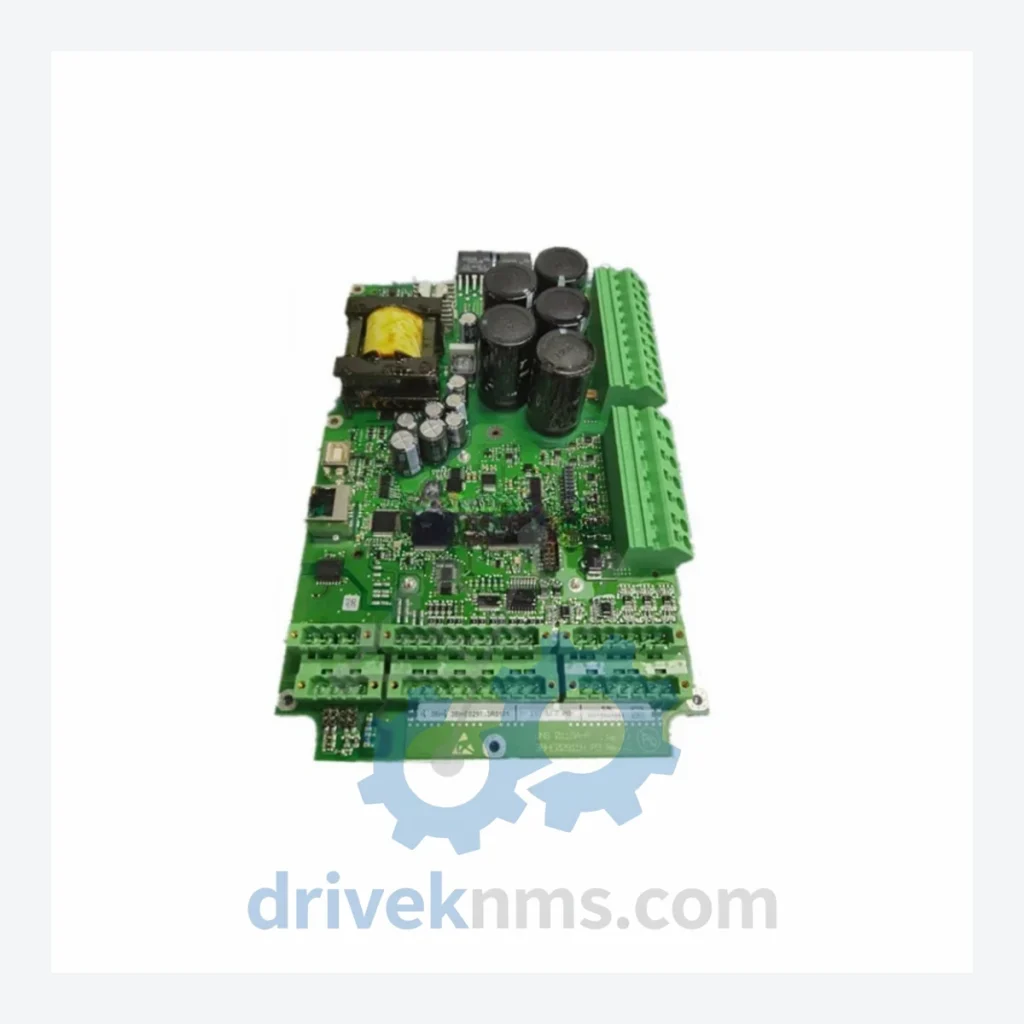

ABB 3BHE029153R0101 Control Board – Obsolete UNITROL Series Spare Part

Technical Dossier

Product Details And Specifications

ABB 3BHE029153R0101 Control Board – Obsolete UNITROL Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Solving the Discontinued Hardware Crisis

ABB's UNITROL excitation control platform has been the backbone of generator and motor excitation management in power plants, steel mills, and heavy process industries for decades. The 3BHE029153R0101 control board sits at the core of this architecture—managing voltage regulation feedback loops and protection logic that cannot simply be replicated by a generic substitute.

The alternative is a structured spare parts strategy. A single verified 3BHE029153R0101 board, held in controlled storage, eliminates the emergency procurement scramble and keeps the existing system operational for an additional 5 to 10 years. This is not a workaround. It is the standard practice of asset-intensive industries that understand the true cost of unplanned capital expenditure.

DriveKNMS specializes in sourcing and verifying obsolete ABB control hardware. Our inventory is not sourced from unknown channels. Each unit is traceable, inspected, and documented before dispatch review.

Condition & Reliability Assurance

Obsolete control boards carry risks that standard procurement does not address. Our 5-step QA process is designed specifically for legacy industrial electronics:

• Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burn marks, cracked solder joints, and corrosion on connector pins and edge contacts.
• Step 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary failure point in aged PCBs. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with degraded capacitors are either recapped or rejected.
• Step 3 – Firmware Version Verification: The firmware version (0119A-P V101) is confirmed against the board's onboard identifiers. Mismatched firmware versions can cause silent compatibility failures in excitation control loops.
• Step 4 – Pin and Connector Integrity: All I/O connectors, bus connectors, and edge pins are cleaned, inspected under magnification, and tested for continuity where applicable.
• Step 5 – Functional Burn-In (where test fixtures are available): Boards are powered under controlled conditions to confirm basic operational response before packaging.

Key Features for System Maintenance

• Drop-in replacement: The 3BHE029153R0101 is a direct hardware substitute for the original board position. No mechanical modification to the host chassis is required.
• No reprogramming required: The V101 firmware version is pre-loaded. The board does not require re-flashing or parameter re-entry when installed in a compatible UNITROL host system.
• Avoids engineering reconstruction costs: Replacing this board preserves the existing excitation control architecture. There is no need to engage system integrators for re-engineering, re-commissioning, or updated protection studies.
• Long-term storage compatibility: Units held in our inventory are stored in ESD-safe, climate-controlled conditions. Boards sourced for strategic spare holding can be re-packaged for long-term storage on request.

How do I confirm the board is genuine ABB and not a counterfeit?
Each unit is inspected for ABB part markings, PCB layer identification codes, and component date codes consistent with the known production window of this series. We do not source from markets where counterfeit risk is uncontrolled. Documentation is available on request.

Can you source related obsolete ABB UNITROL components?
Yes. DriveKNMS maintains sourcing networks for the broader ABB UNITROL and UNITROL 5000/6000 spare parts ecosystem. Contact us with your full BOM for a consolidated availability check.
