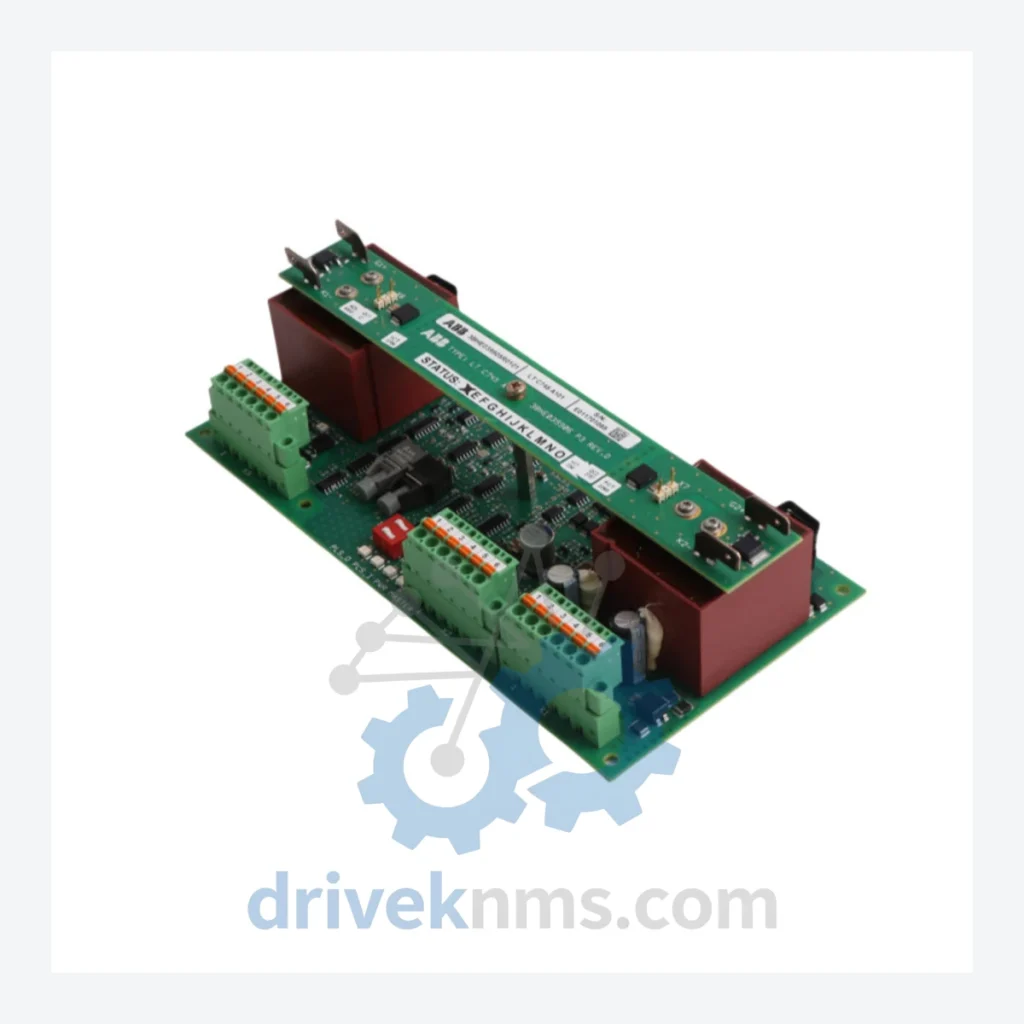

ABB 3BHE039905R0101 LTC745A101 Circuit Board – Obsolete UNITROL Spare Part

Technical Dossier

Product Details And Specifications

ABB 3BHE039905R0101 LTC745A101 Circuit Board – Obsolete UNITROL Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on known system context. No parameters are fabricated.

Solving the Discontinued Hardware Crisis

The ABB UNITROL excitation control platform has been deployed across power generation facilities, steel mills, cement plants, and large-scale pumping stations for decades. The 3BHE039905R0101 LTC745A101 board functions as a core control element within these systems — handling regulation logic that cannot be replicated by a generic substitute without full system re-engineering.

ABB's transition away from this hardware generation has left a significant gap. Replacement with current-generation ABB excitation systems requires not only new hardware but updated communication protocols, revised I/O mapping, new HMI configuration, and in many cases, updated protection relay coordination. For a mid-sized power plant or industrial facility, this is a 12–24 month capital project. The alternative — sourcing a verified spare of the original board — extends the operational life of the existing system by 5 to 10 years at a fraction of the cost.

The strategic approach for aging UNITROL and AC800PEC installations is not to defer the eventual upgrade indefinitely, but to control its timing. Sourcing critical spares now allows engineering teams to plan migrations on their own schedule — during planned outages, with adequate budget allocation, and without production pressure.

Condition & Reliability Assurance

Every 3BHE039905R0101 LTC745A101 unit processed by DriveKNMS passes a structured 5-step quality protocol before dispatch:

• Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, solder joint integrity, and connector pin condition. Corroded or oxidized pins are documented and assessed.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in boards of this generation. Each capacitor is checked for bulging, leakage, and ESR deviation. Units with degraded capacitors are flagged and handled separately.
• Step 3 – Firmware Version Verification: Where accessible, firmware or EPROM version is recorded and cross-referenced against known compatible revisions for UNITROL system integration.
• Step 4 – Functional Bench Test: Boards are powered and tested under controlled conditions to verify basic operational response prior to packaging.
• Step 5 – Anti-Static Packaging and Documentation: Units are sealed in ESD-safe packaging with condition report documentation included in shipment.

Key Features for System Maintenance

How do I know the unit is genuine and not counterfeit?
All units are sourced through verified industrial channels. Physical markings, board revision codes, and component layouts are cross-checked against known authentic references. We do not source from unverified secondary markets.
