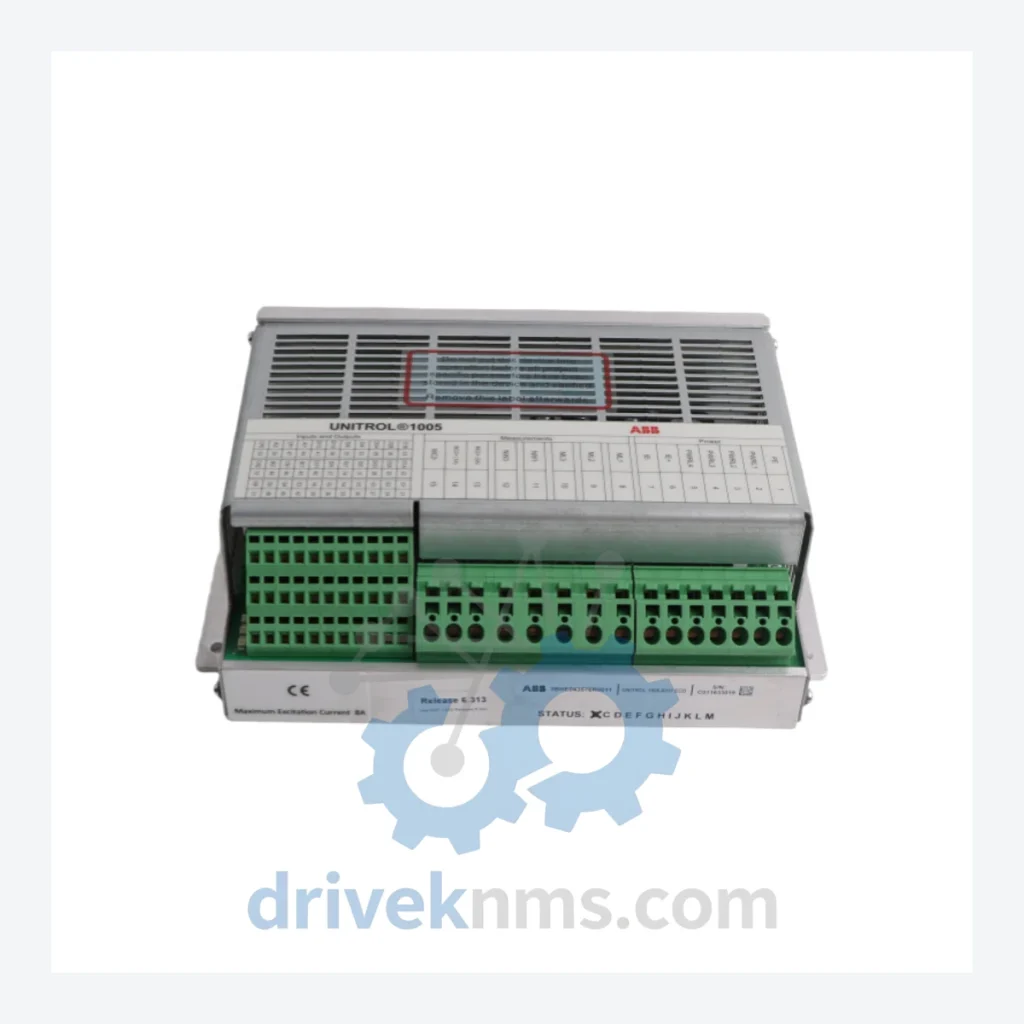

ABB UNITROL 1005 Modules: 3BHE043576R0011

Technical Dossier

Product Details And Specifications

ABB UNITROL 1005 Series Technical Notes

The ABB UNITROL 1005 is a compact, fully digital Automatic Voltage Regulator (AVR) designed for synchronous generators in the range of 0.5 kVA to several MVA. It has established a significant installed base across global heavy industry sectors including petrochemical plants, nuclear auxiliary power systems, offshore platforms, and oil refineries. The UNITROL 1005 replaced earlier analog excitation controllers and introduced field-proven digital closed-loop voltage regulation with integrated protection functions. Its modular hardware architecture allows for flexible configuration across single-phase and three-phase sensing topologies. The series is manufactured in Switzerland and complies with IEC 60034-16 and relevant IEEE excitation system standards.

The Evolution of UNITROL 1005 Architecture

ABB's UNITROL excitation product line traces its origins to the analog UNITROL-D and UNITROL-F controllers of the 1980s and 1990s. The UNITROL 1005 represented the first generation of fully embedded digital AVR in the compact class, introduced in the early 2000s. Its core processing is based on a fixed-point DSP with analog front-end signal conditioning for generator terminal voltage (Ug), stator current (Ig), and field current (If) measurement.

The architecture uses a single-board design integrating the voltage measurement circuit, firing pulse generation for the thyristor bridge, and the serial communication interface on one PCB. This contrasts with the later UNITROL 1010 and UNITROL 1020 platforms, which separated these functions into distinct plug-in modules for improved maintainability. The UNITROL 5000 and UNITROL 6800 represent the current-generation successors for large-machine applications, while the UNITROL 1005 remains the reference design for small-to-medium generator sets where its compact form factor is decisive.

Compatibility note: UNITROL 1005 firmware versions prior to V2.x are not directly interchangeable with V3.x hardware revisions. The ECO variant (as in 3BHE043576R0011) denotes a cost-optimized hardware configuration with a reduced I/O complement compared to the standard variant.

UNITROL 1005 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB UNITROL 1005 product family. Each entry reflects a distinct hardware configuration or revision level.

3BHE043576R0011: UNITROL 1005-0011 ECO AVR board, single-phase sensing, compact DIN-rail mount, standard thyristor firing output.
3BHE043576R0001: UNITROL 1005-0001 standard AVR module, three-phase voltage sensing, full I/O complement, RS-232 interface.
3BHE043576R0101: UNITROL 1005-0101 AVR with extended temperature range (-20°C to +70°C), for outdoor enclosure applications.
3BHE043576R0201: UNITROL 1005-0201 AVR with integrated power factor controller (PFC) function, reactive power regulation mode.
3BHE022294R0001: UNITROL 1005 power supply board, 24 VDC auxiliary input, internal DC/DC converter for AVR logic supply.
3BHE022294R0101: UNITROL 1005 power supply board, 110/220 VAC auxiliary input variant, wide-range input.
3BHE004573R0001: UNITROL 1005 firing pulse transformer module, galvanic isolation for thyristor gate drive circuits.
3BHE004573R0002: UNITROL 1005 firing pulse transformer module, revision B, improved EMC shielding.
3BHE010751R0001: UNITROL 1005 measurement input board, PT/CT signal conditioning, 3-phase, 100–690 VAC input range.
3BHE010751R0101: UNITROL 1005 measurement input board, single-phase variant, 100–480 VAC input range.
3BHE014557R0001: UNITROL 1005 communication interface module, RS-485 / Modbus RTU, for SCADA integration.
3BHE014557R0002: UNITROL 1005 communication interface module, PROFIBUS DP slave, for DCS integration.
3BHE031684R0001: UNITROL 1005 digital I/O expansion board, 8 DI / 4 DO, 24 VDC logic level.
3BHE031684R0101: UNITROL 1005 analog I/O expansion board, 4 AI (4–20 mA) / 2 AO (4–20 mA), for remote setpoint control.
3BHE038120R0001: UNITROL 1005 complete controller assembly, standard configuration, factory-tested, includes base board and PSU.
3BHE038120R0101: UNITROL 1005 complete controller assembly, ECO configuration, reduced I/O, single-phase sensing, DIN-rail.
3BHE041234R0001: UNITROL 1005 replacement thyristor bridge assembly, 25A rated, for integrated exciter configurations.
3BHE041234R0101: UNITROL 1005 replacement thyristor bridge assembly, 50A rated, for higher field current applications.

Sourcing Hard-to-Find & Obsolete UNITROL 1005 Parts

The UNITROL 1005 series entered the mature phase of its product lifecycle approximately in 2015, with ABB progressively directing new projects toward the UNITROL 1010 and UNITROL 1020 platforms. As of 2026, several sub-assemblies and PCB-level components within the UNITROL 1005 range are no longer available through standard ABB distribution channels.

Quality Control for the UNITROL 1005 Range

UNITROL 1005 modules present specific test challenges due to their integrated analog measurement front-end and high-voltage thyristor firing circuits. DriveKNMS applies the following test protocol to all UNITROL 1005 units prior to dispatch:

1. Visual inspection of PCB for corrosion, damaged SMD components, and capacitor condition (electrolytic capacitors are a known wear item in this series).
2. Auxiliary power supply verification: output voltage regulation and ripple measurement under load.
3. Analog input channel calibration check: PT/CT input accuracy verified against reference signals at 50 Hz and 60 Hz.
4. Thyristor firing pulse output verification: pulse timing, amplitude, and isolation resistance measured per ABB test specification.
5. Communication interface functional test: RS-232/RS-485 loopback and Modbus register read/write verification where applicable.
6. Burn-in: 48-hour powered soak at 40°C ambient prior to final inspection and packaging.
