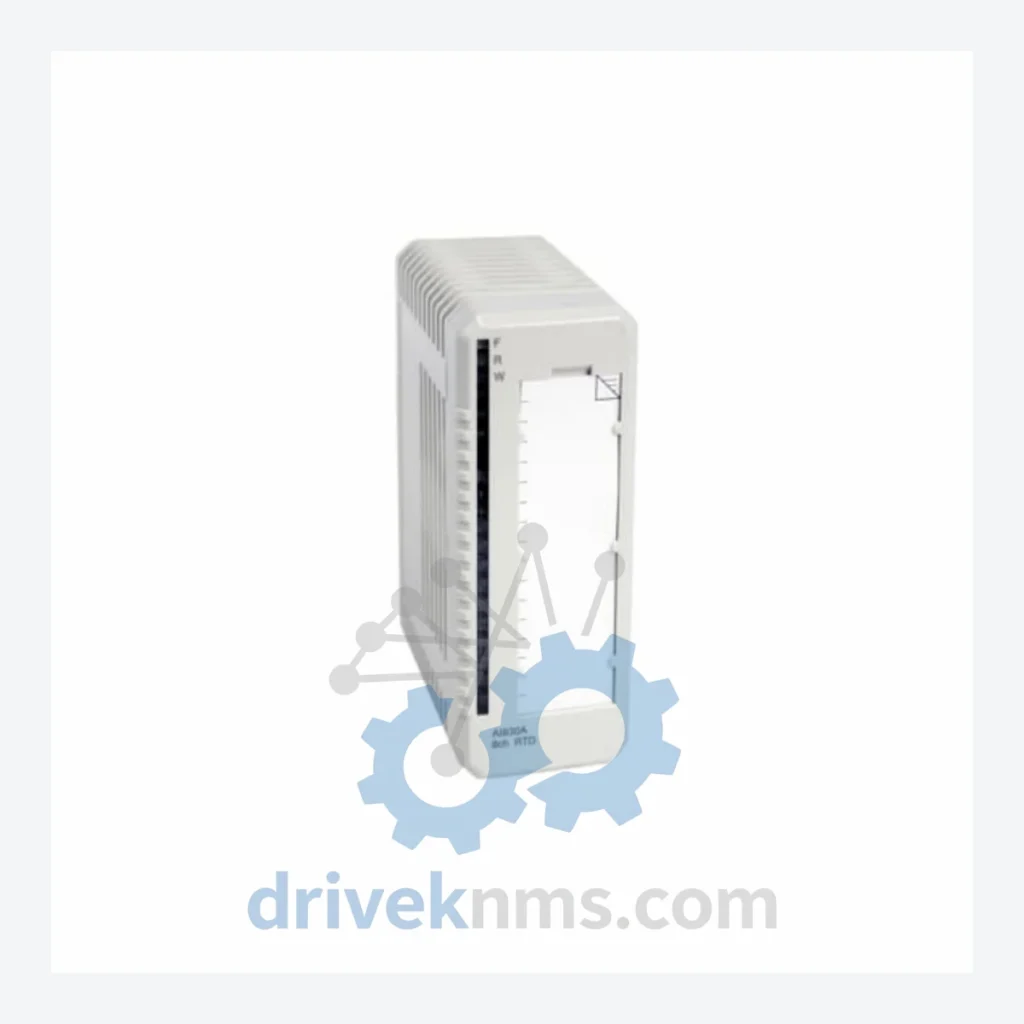

ABB S800 I/O Modules – AI830A

Technical Dossier

Product Details And Specifications

ABB S800 I/O Series Technical Notes

The ABB S800 I/O system is a distributed I/O platform engineered for integration with the ABB AC 800M process controller family. It is deployed across the full spectrum of heavy industrial environments — petroleum refining, chemical processing, pulp and paper manufacturing, nuclear power generation, and offshore oil and gas platforms. The S800 I/O system's modular backplane architecture, combined with its support for redundant fieldbus communication via the ModuleBus protocol, has made it a de facto standard in process automation installations globally. Installed base counts in the hundreds of thousands of nodes across facilities operated by major industrial corporations in Europe, Asia, and the Americas. The system's long production lifecycle — spanning from the mid-1990s through the present — means that a significant proportion of installed units are now in the maintenance and lifecycle extension phase, creating sustained demand for spare parts, replacement modules, and technical support.

S800 I/O Full Catalog & Functionalities (SKU List)

The following catalog covers the primary module types within the S800 I/O system, organized by functional category. Each entry represents a verified, commercially available or historically shipped SKU within the ABB S800 product family.

Analog Input Modules

• AI830A: 8-channel RTD/resistance analog input, configurable per channel, ModuleBus interface, supports Pt100/Pt1000/Ni100
• AI820: 8-channel 4–20 mA / 0–20 mA analog input, single-ended, 12-bit resolution, HART-capable on select revisions
• AI835A: 8-channel thermocouple analog input, supports types J/K/T/E/R/S/B, cold junction compensation integrated
• AI843: 4-channel high-accuracy analog input, 16-bit resolution, differential input, for precision measurement loops
• AI845: 8-channel analog input with HART communication, 4–20 mA, supports field device parameter access

Analog Output Modules

• AO820: 8-channel 4–20 mA analog output, 12-bit resolution, short-circuit protected, ModuleBus interface
• AO845A: 8-channel analog output with HART pass-through, 4–20 mA, supports valve positioner diagnostics
• AO890: 4-channel high-accuracy analog output, 16-bit resolution, for precision control applications

Digital Input Modules

• DI810: 24-channel 24 VDC digital input, sink/source configurable, LED status per channel
• DI811: 24-channel 48 VDC digital input, for higher-voltage field wiring environments
• DI814: 24-channel 24 VDC digital input with diagnostics, open-wire and short-circuit detection per channel
• DI821: 8-channel 120/230 VAC digital input, for direct connection to AC field devices

Digital Output Modules

• DO810: 24-channel 24 VDC digital output, 0.5 A per channel, source type, LED status indication
• DO814: 24-channel 24 VDC digital output with diagnostics, load monitoring and open-load detection
• DO821: 8-channel relay output, 250 VAC / 2 A per channel, for AC load switching

Communication & Backplane Infrastructure

• TB820V2: ModuleBus Modem, copper interface, connects I/O cluster to AC 800M controller via ModuleBus optical or electrical
• TB840A: Redundant ModuleBus Modem, dual-channel fiber-optic, for redundant I/O cluster configurations
• TB807: 8-slot I/O baseplate, standard cluster backplane for S800 I/O modules
• TB811: 5-slot I/O baseplate, compact cluster configuration
• SD821: 24 VDC power supply unit, 3 A, for S800 I/O cluster power distribution
• SD822: 24 VDC power supply unit, 6 A, for larger cluster configurations or redundant power setups

Quality Control for the S800 I/O Range

S800 I/O modules present specific test challenges due to their integrated ModuleBus backplane communication logic and channel-level diagnostic circuitry. DriveKNMS applies a structured test protocol to each unit prior to dispatch. Analog input modules (including the AI830A) are bench-tested against calibrated RTD simulators across all 8 channels, with linearity and offset error verified against ABB factory specifications. Analog output modules are loaded with precision resistive loads and output accuracy is measured at 0%, 25%, 50%, 75%, and 100% of span. Digital I/O modules are cycled through all channels under rated voltage and current conditions. ModuleBus modem units (TB820V2, TB840A) are tested for optical power budget compliance and communication integrity using an AC 800M controller test bench. All test results are documented and supplied with the unit on request. Modules that fail any parameter are quarantined and not offered for sale.
