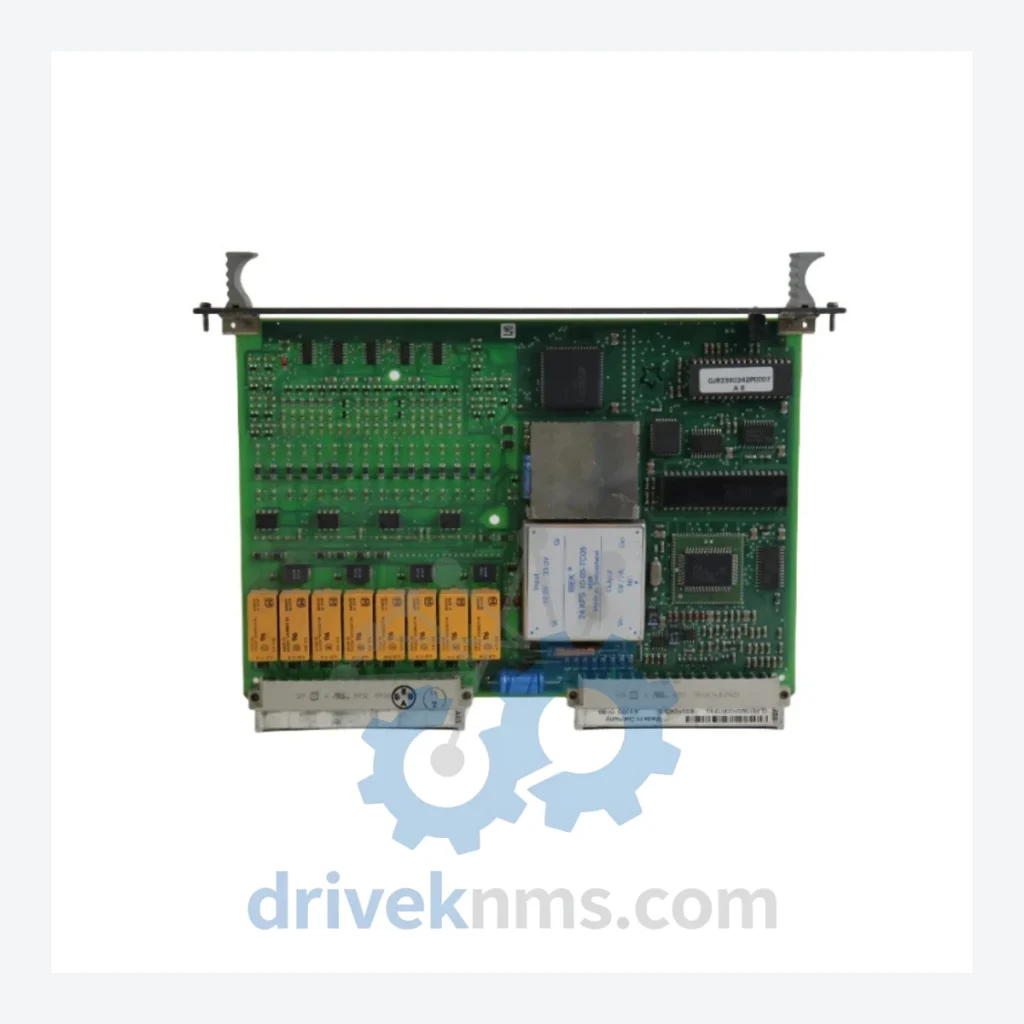

ABB GJR2390200R1210 83SR04G-E – Advant Controller MOD 300 Control Board Modules

Technical Dossier

Product Details And Specifications

ABB Advant MOD 300 Series Technical Notes

The ABB Advant MOD 300 (also referenced under the Masterpiece 200/1 and AC 400 platform families) is a distributed control system (DCS) architecture deployed extensively across global heavy industry verticals including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, and offshore oil and gas platforms. The GJR-prefix module family — of which the GJR2390200R1210 83SR04G-E is a representative control board — forms the backbone of the MOD 300 I/O and controller subsystem. Installed base estimates place MOD 300 deployments in over 40 countries, with a significant concentration in European and Asian process industries. Due to the long operational lifecycle of DCS infrastructure (typically 20–30 years), demand for original spare boards such as the GJR2390200R1210 remains active well beyond the platform's commercial production end-of-life.

The Evolution of ABB Advant MOD 300 Architecture

The MOD 300 platform was introduced by ABB (then Asea Brown Boveri) in the late 1980s as a successor to the MASTER series controllers. Its architecture is based on a proprietary backplane bus (MasterBus 300) that interconnects controller, I/O, and communication modules within a rack assembly. Early revisions used parallel bus addressing with discrete analog signal conditioning; later hardware revisions (identifiable by R-suffix changes in the part number, e.g., R1210 vs. R0110) introduced improved EMC shielding, extended temperature tolerance, and revised firmware ROMs for compatibility with Advant Station operator interfaces.

ABB MOD 300 / GJR Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB Advant MOD 300 and associated GJR-prefix hardware families. Each entry reflects the module's primary functional role within the DCS architecture.

GJR2390200R1210 83SR04G-E: Signal regulation control board, SR-class, Rev R1210, Eurocard format.
GJR2391500R0001: Analog input module, 8-channel, 4–20 mA, MOD 300 rack-mount.
GJR2391600R0001: Analog output module, 8-channel, 4–20 mA, isolated outputs.
GJR2392100R0001: Digital input module, 32-channel, 24 VDC, sink type.
GJR2392200R0001: Digital output module, 32-channel, 24 VDC, source type.
GJR2393000R0001: Controller processor board, MOD 300 CPU, MasterBus 300 interface.
GJR2393100R0001: Redundant controller processor board, hot-standby configuration.
GJR2394000R0001: MasterBus 300 communication adapter, coaxial interface.
GJR2394100R0001: PROFIBUS DP gateway module, MOD 300 to field device interface.
GJR2395000R0001: Power supply module, 24 VDC, 10 A, rack-internal distribution.
GJR2395100R0001: Redundant power supply module, automatic switchover, 24 VDC.
GJR2396000R0001: Thermocouple input module, 8-channel, J/K/T/E type, cold junction compensated.
GJR2396100R0001: RTD input module, 8-channel, Pt100/Pt1000, 3-wire configuration.
GJR2397000R0001: Pulse counter input module, 4-channel, 24 VDC, up to 10 kHz.
GJR2397100R0001: Frequency/speed input module, 2-channel, HTL/TTL encoder compatible.
GJR2398000R0001: Serial communication module, RS-232/RS-485, Modbus RTU protocol.
GJR2399000R0001: Rack backplane termination board, MOD 300 standard 8-slot chassis.

Quality Control for the ABB MOD 300 / GJR Series Range

GJR-series control boards present specific test challenges due to their proprietary MasterBus 300 backplane protocol and multi-layer PCB construction with surface-mount ASIC components. DriveKNMS applies the following verification procedures to all MOD 300 boards prior to dispatch:

1. Visual inspection: Component-level examination under 10× magnification for solder joint integrity, capacitor ESR degradation, and corrosion on DIN 41612 connector pins.
2. Powered functional test: Each board is energized in a MOD 300-compatible test rack with live MasterBus 300 traffic to verify register read/write, interrupt response, and watchdog timer function.
3. Signal path verification: For SR-class boards (including the 83SR04G-E designation), analog signal conditioning circuits are tested across the full 4–20 mA range with calibrated reference sources.
4. Firmware revision check: ROM version is read and documented; boards with non-standard firmware revisions are flagged and disclosed prior to sale.
5. Burn-in cycle: 48-hour continuous operation at 40°C ambient to screen latent component failures before dispatch review.
