ABB HIEE400103R0001 CSA463AE Monitoring Module – Obsolete Advant OCS Spare Part

Technical Dossier

Product Details And Specifications

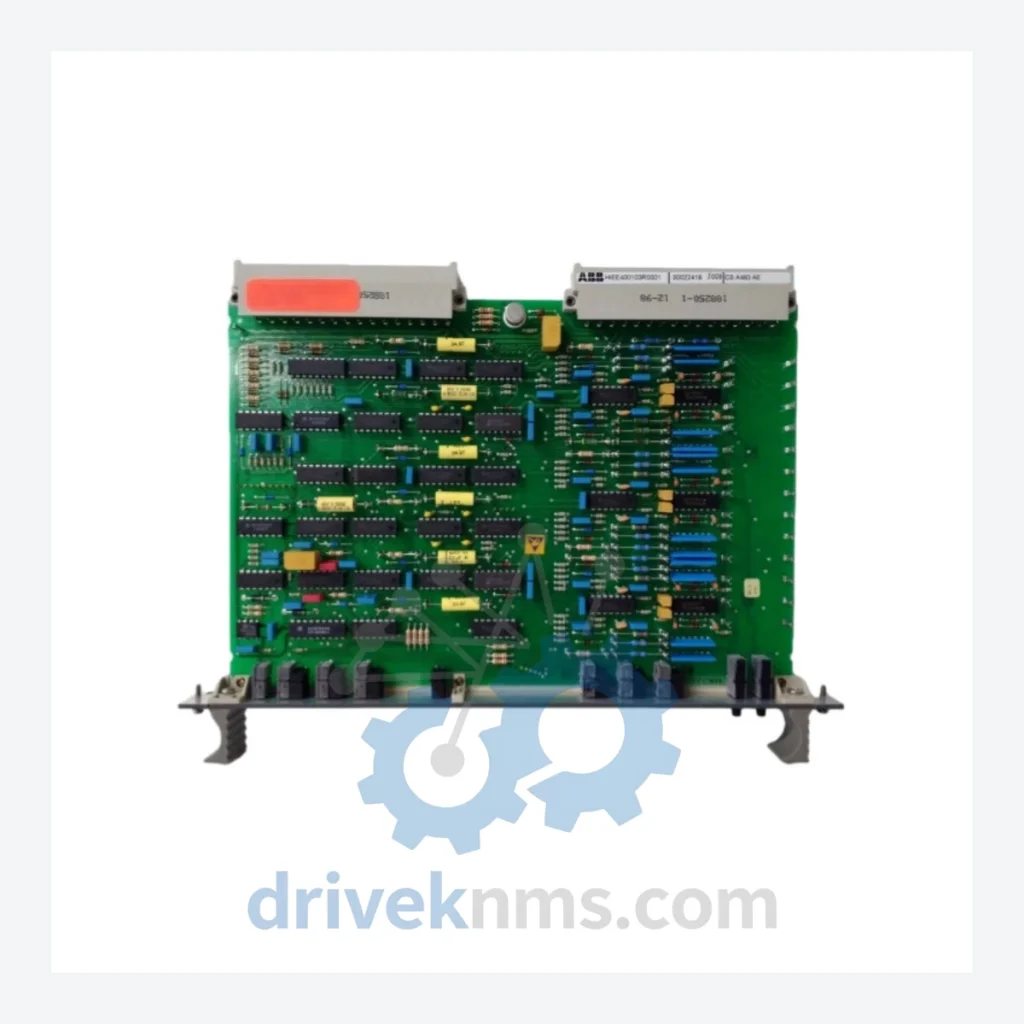

ABB HIEE400103R0001 CSA463AE Monitoring Module – Obsolete Advant OCS Spare Part

When a monitoring module fails inside an ABB Advant OCS or MasterPiece control system, the consequences are not limited to a single loop going offline. The entire supervisory layer that governs process visibility, alarm management, and interlock logic can become inoperable. A full system migration to a modern DCS platform — engineering, hardware, software licensing, site commissioning, and production downtime — routinely costs between USD 1.5 million and USD 5 million for a mid-scale process plant. The HIEE400103R0001 CSA463AE is a discontinued component. ABB no longer manufactures or supports it through standard channels. DriveKNMS holds verified physical stock of this module, sourced through controlled industrial asset recovery pipelines. Securing one unit today is not a purchasing decision — it is a risk management decision.

Technical Specifications

Note: Electrical parameters not independently verified for this listing. Specifications are based on platform documentation. Do not assume values not stated here.

Solving the Discontinued Hardware Crisis

The ABB Advant OCS and MasterPiece control architectures were deployed extensively across oil & gas, pulp & paper, power generation, and chemical processing facilities from the 1980s through the early 2000s. Many of these installations remain in active production today — not because operators are unaware of the obsolescence risk, but because the cost and operational disruption of a full DCS migration cannot be justified within current capital budgets.

The HIEE400103R0001 CSA463AE monitoring module sits at a critical junction in these architectures. It handles supervisory monitoring functions that, if lost, remove operator visibility into process conditions. In a safety-critical environment, operating blind — even temporarily — is not an acceptable state. There is no software patch, no firmware workaround, and no modern substitute that installs without re-engineering the surrounding I/O and communication infrastructure.

For plant managers facing board-level pressure to defer capital expenditure, the calculus is straightforward: one verified spare module at a fraction of a percent of migration cost buys 5 to 10 additional years of controlled, documented system operation. That is not a compromise — it is a defensible asset protection strategy.

Facilities that have successfully extended Advant OCS system life beyond original end-of-support dates share a common practice: they maintain a documented critical spare parts register, they source obsolete modules from verified industrial suppliers rather than unvetted online marketplaces, and they conduct periodic functional testing of stored spares. DriveKNMS operates within this framework.

Condition & Reliability Assurance

Every HIEE400103R0001 CSA463AE unit that leaves our facility has passed a structured 5-step quality process designed specifically for discontinued industrial electronics:

Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in modules of this era. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned with matched-specification replacements or rejected from inventory.

Step 2 – Firmware Version Verification: Where firmware is embedded, the revision is documented and cross-referenced against known compatible versions for the target Advant OCS platform. Incompatible firmware versions are flagged before shipment.

Step 3 – Pin and Connector Inspection: Backplane connectors and edge pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned and treated where required.

Step 4 – Board-Level Visual Inspection: PCB traces, solder joints, and passive components are inspected for cold joints, cracking, and heat damage consistent with long-term thermal cycling.

Step 5 – Functional Verification (where test infrastructure permits): Modules are powered and tested against baseline operational parameters. Units that cannot be functionally verified are clearly designated and priced accordingly.

Condition grade is disclosed in full prior to order confirmation. We do not ship modules without a condition declaration.

Key Features for System Maintenance

The HIEE400103R0001 CSA463AE is a drop-in replacement for the same part number within the Advant OCS backplane architecture. Installation does not require reprogramming of the host controller, re-configuration of the supervisory layer, or modification of existing I/O mapping — provided the replacement unit carries a compatible firmware revision, which we verify prior to shipment.

This matters operationally. A replacement that requires engineering intervention to commission is not a spare part — it is a mini-project, with associated labor costs, downtime scheduling, and risk of configuration error. A verified, compatible HIEE400103R0001 CSA463AE restores system function without touching the surrounding architecture. That is the standard DriveKNMS holds its inventory to.

For facilities maintaining multiple Advant OCS nodes, we recommend evaluating a small buffer stock of two to three units. The carrying cost is negligible relative to the exposure created by a single-point-of-failure with no spare on hand.

FAQ

Q: What warranty applies to an obsolete module like this?
A: We provide a 90-day warranty against DOA (dead on arrival) and functional failure under normal operating conditions. Warranty terms are confirmed in writing at the time of order. Extended warranty arrangements can be discussed for volume purchases.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are sourced from decommissioned industrial facilities or verified asset recovery channels — not from anonymous secondary markets. Physical markings, board revision codes, and component profiles are cross-checked against known genuine references. We provide photographic documentation of the specific unit prior to shipment upon request.

Q: Should we buy more than one unit as a long-term reserve?
A: For any Advant OCS installation that is expected to remain in service for more than three years, holding at least one cold spare of every critical module is standard practice. The HIEE400103R0001 CSA463AE is not a module that will become easier to source over time. Current availability reflects recovered stock — once this inventory is depleted, lead times for equivalent units are measured in months, not days.

Q: Can you source other ABB Advant OCS or MasterPiece modules?
A: Yes. DriveKNMS specializes in hard-to-find and obsolete industrial automation components across multiple platforms. Contact us with your full BOM or critical spare list for availability assessment.
