ABB 63HAC037534-001 Cable Harness – IRB4601 / IRB1600 Series Critical Spare Part

Technical Dossier

Product Details And Specifications

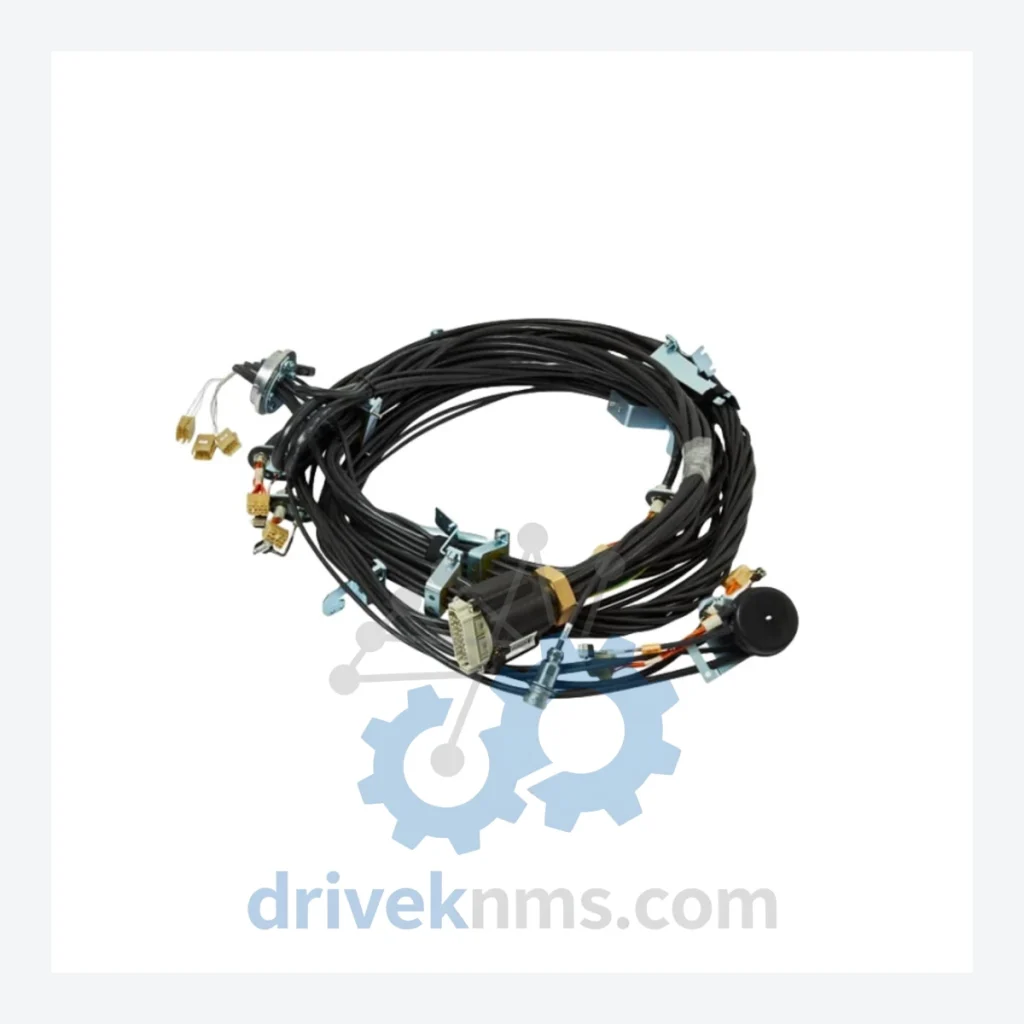

ABB 63HAC037534-001 Cable Harness – IRB4601 / IRB1600 Series Critical Spare Part

A single failed cable harness does not just stop one robot — it stops a production cell. For facilities running ABB IRB4601 or IRB1600 series manipulators, the internal cable harness assemblies (63HAC037534-001, 63HAC070081-001, 63HAC021828-001) are the nervous system of the robot arm. When these harnesses degrade — through flex fatigue, connector corrosion, or insulation breakdown — the robot becomes unreliable, then inoperable. The cost of sourcing a replacement through standard channels for aging robot models can stretch into weeks of lead time. The cost of an unplanned production stoppage, or worse, a forced line upgrade, runs into the hundreds of thousands of dollars. DriveKNMS maintains verified stock of these harness assemblies specifically to prevent that outcome.

Technical Specifications

Solving the Discontinued Hardware Crisis

ABB's IRB4601 and IRB1600 robot families have been deployed across automotive, electronics, and general manufacturing lines worldwide for over a decade. Many of these installations remain mechanically sound and operationally viable — the robots themselves have years of service life remaining. The problem is not the robot. The problem is component availability.

Cable harnesses are high-wear items. They route through joints that cycle thousands of times per shift. Flex fatigue, connector pin wear, and insulation degradation are predictable failure modes — not exceptional events. When OEM supply chains deprioritize aging model support, procurement teams are left with two options: pay a premium for the rare available unit, or face a forced system retirement that no capital budget was prepared for.

Extending the operational life of an IRB4601 or IRB1600 installation by 5 to 10 years is not a theoretical exercise. It is a documented maintenance strategy used by plant engineering teams who understand that a robot with a replaced harness and recalibrated axes outperforms the disruption cost of a full cell redesign. The math is straightforward: a replacement harness assembly at a fraction of the cost of a new robot, combined with a structured preventive maintenance schedule, preserves production continuity without triggering a capital expenditure cycle.

DriveKNMS sources and holds stock of exactly these components — not as a secondary business, but as a primary focus. Our inventory exists because plant managers and maintenance engineers need a reliable source when OEM channels go quiet.

Condition & Reliability Assurance

Every cable harness unit that leaves our facility has passed a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Visual and Physical Inspection: Full external examination of connector housings, cable jacket integrity, and strain relief points. Any unit showing mechanical damage is rejected.
• Step 2 – Connector Pin Inspection: Each connector is inspected under magnification for pin corrosion, deformation, or contamination. Corroded pins are a primary cause of intermittent signal faults in aging harnesses.
• Step 3 – Insulation Resistance Check: Conductors are tested for insulation breakdown — a failure mode that develops in harnesses exposed to thermal cycling over years of operation.
• Step 4 – Continuity and Wiring Verification: Full point-to-point continuity test against the original wiring schematic to confirm no open circuits or cross-wiring.
• Step 5 – Part Number and Revision Verification: Label, part number, and where applicable, revision markings are confirmed against ABB documentation to ensure compatibility with the target robot model and software revision.

Units that do not pass all five steps are not sold. There are no exceptions to this protocol.

Key Features for System Maintenance

• Drop-in Replacement: These harness assemblies are direct OEM-equivalent replacements. No wiring modifications, no adapter brackets, no firmware changes required.
• No Reprogramming Required: Replacing the cable harness does not affect robot programs, tool data, or calibration offsets stored in the controller. The robot returns to service with its existing configuration intact.
• Avoids Engineering Rework Costs: A forced robot replacement triggers a cascade of costs — mechanical integration, safety validation, program migration, and production downtime during commissioning. A harness replacement eliminates all of that.
• Supports Long-Term Spare Parts Strategy: Facilities managing multiple IRB4601 or IRB1600 units should consider holding at least one harness assembly per robot model variant as a strategic buffer. Lead times on hard-to-find components are unpredictable. On-hand stock is the only reliable hedge.

FAQ

Q: What warranty applies to these cable harness assemblies?
A: We provide a 90-day warranty covering defects in the part itself as supplied. This covers failures attributable to the component condition at the time of sale, not damage resulting from installation errors or pre-existing robot faults.

Q: How do I confirm whether I am receiving a new or refurbished unit?
A: Condition is confirmed in writing at the time of quotation. New Old Stock (NOS) units are identified as such. Refurbished units are accompanied by a summary of the inspection steps completed. We do not mix condition grades within a single order without explicit customer agreement.

Q: Should I purchase more than one unit?
A: For facilities operating more than two IRB4601 or IRB1600 robots, holding one spare harness assembly per model variant is a defensible maintenance investment. The cost of a second unit is a fraction of the cost of a single unplanned production stoppage. Availability of these parts is not guaranteed to improve over time — the installed base ages while OEM support contracts.

Q: Can you source other ABB IRB4600 or IRB1600 series spare parts?
A: Yes. Contact us with your full part number list. We maintain sourcing relationships for a broad range of ABB robot components and can advise on availability and lead time.
