ABB IRB6640 Series: Comprehensive Module Range and Technical Overview

The ABB IRB6640 is a high-payload industrial articulated robot platform engineered for heavy-duty manufacturing environments including automotive body-in-white assembly, foundry operations, chemical processing facilities, nuclear maintenance cells, and petroleum refinery material handling. With a payload capacity ranging from 130 kg to 235 kg and a reach envelope of up to 3.2 meters, the IRB6640 occupies a dominant position in the global heavy industrial robot installed base. Its modular axis drive architecture — built around discrete motor-and-gearbox assemblies per axis — means that individual axis motors, including the motor with integrated pinion (3HAC057547-004 / 3HAC057547-005), are the primary field-replaceable units for long-term asset maintenance.

The IRB6640 platform is deployed across Tier 1 automotive suppliers, steel processing lines, and large-scale logistics automation. Its installed base spans North America, Europe, and Asia-Pacific, making spare parts availability a critical operational concern for maintenance engineers and procurement teams worldwide.

The Evolution of IRB6640 Architecture

The IRB6640 was introduced as a successor to the IRB6600 series, inheriting the same S4C+ and IRC5 controller compatibility while delivering improved payload-to-reach ratios and reduced axis backlash through redesigned gearbox interfaces. Early production variants (pre-2010) used a different motor flange standard on Axis 1 and Axis 2, which is incompatible with later pinion-integrated motor assemblies such as the 3HAC057547-004.

From approximately 2012 onward, ABB standardized the IRB6640 motor assemblies around the 3HAC05xxxx part number family, consolidating Axis 1 through Axis 6 motors into a unified procurement catalog. The pinion-integrated motor design (as in 3HAC057547-004 and 3HAC057547-005) eliminates a separate pinion press-fit step during field replacement, reducing mean time to repair (MTTR) on Axis 1 and Axis 2 assemblies.

As of 2024, the IRB6640 series has entered the mature/end-of-active-production phase. ABB continues to supply spare parts under its long-term service agreement framework, but lead times for OEM components have extended. Third-party MRO suppliers such as DriveKNMS provide an essential buffer for facilities requiring rapid turnaround on critical axis motor replacements.

IRB6640 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB IRB6640 spare parts ecosystem, organized by functional category. Each entry reflects a discrete, field-replaceable unit.

Axis Drive Motors (Motor incl. Pinion)

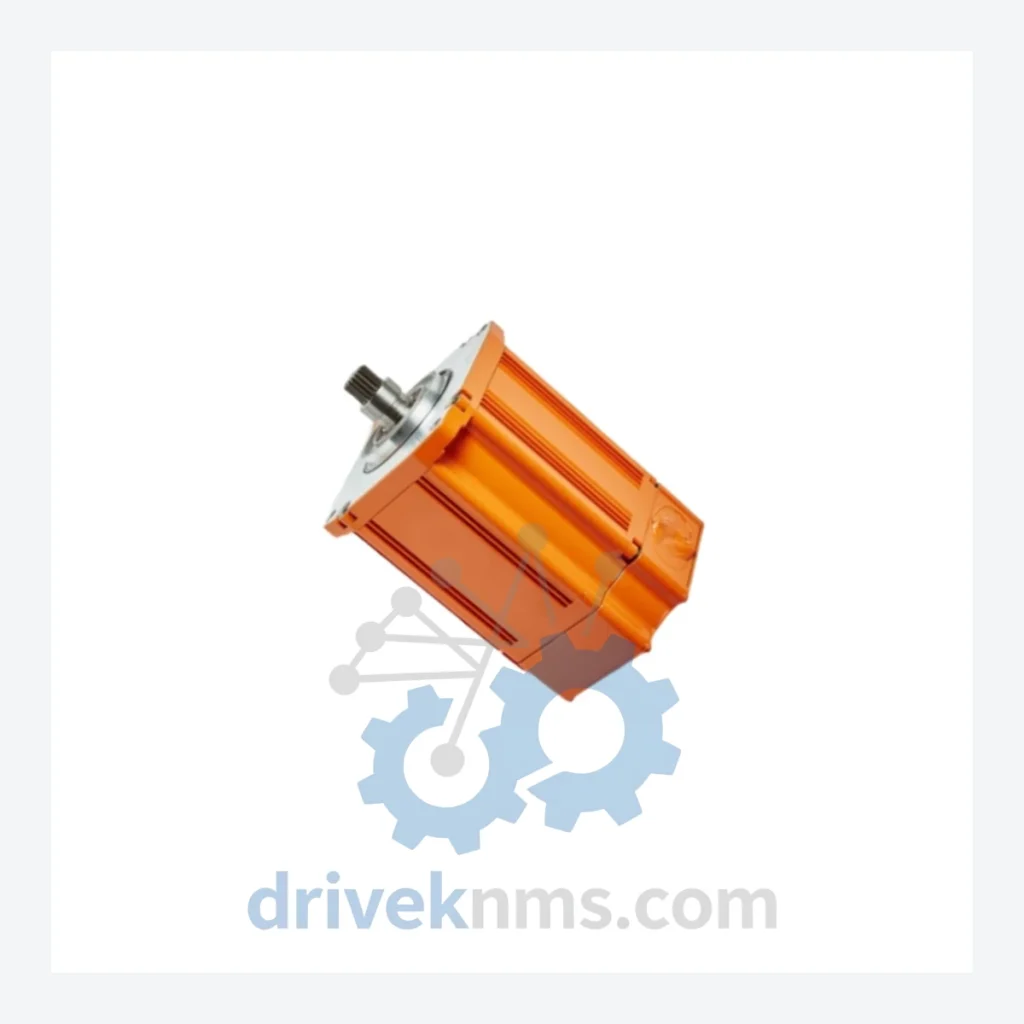

• 3HAC057547-004: Axis 1/2 motor assembly with integrated pinion, IRC5 compatible, standard payload variant
• 3HAC057547-005: Axis 1/2 motor assembly with integrated pinion, high-cycle duty rating variant
• 3HAC028780-001: Axis 3 drive motor, flange-mount, 400V AC servo
• 3HAC028781-001: Axis 4 drive motor, compact frame, encoder integrated
• 3HAC028782-001: Axis 5 drive motor, wrist assembly interface, low-inertia design
• 3HAC028783-001: Axis 6 drive motor, tool-flange end, high-resolution resolver

Gearbox & Mechanical Transmission

• 3HAC025562-001: Axis 1 gearbox unit, helical-planetary stage, grease-lubricated
• 3HAC025563-001: Axis 2 gearbox unit, single-stage reduction, cast iron housing
• 3HAC025564-001: Axis 3 gearbox unit, compact planetary, sealed bearing pack
• 3HAC040194-001: Axis 1 pinion gear, standalone replacement, hardened steel

Controller & Drive Electronics (IRC5 Compatible)

• 3HAC026254-001: Drive unit, axis computer board, IRC5 main computer
• 3HAC031670-001: Axis computer DSQC668, IRC5 single cabinet
• 3HAC026257-001: I/O module DSQC652, 24VDC digital I/O, 16DI/16DO
• 3HAC025338-001: Power supply unit, IRC5 cabinet, 400V input

Cables & Harnesses

• 3HAC031683-001: Axis 1–3 motor cable harness, 7-meter standard reach
• 3HAC031684-001: Axis 4–6 motor cable harness, upper arm routing
• 3HAC026560-001: SMB (Serial Measurement Board) cable, resolver signal

Structural & Balancing Components

• 3HAC028350-001: Spring balancing unit, Axis 2 counterbalance, nitrogen-charged
• 3HAC040082-001: Lower arm assembly, structural weldment, IRB6640-185/2.8

Sourcing Hard-to-Find & Obsolete IRB6640 Parts

DriveKNMS maintains a dedicated inventory program for IRB6640 components that have been discontinued from ABB's active production catalog or carry extended OEM lead times exceeding 12 weeks. Our sourcing protocol covers:

• Pre-inspected pull-out units from decommissioned IRB6640 cells, including motor assemblies with verified run-hours below threshold
• New-old-stock (NOS) components sourced from authorized ABB distributor liquidations
• Remanufactured axis motors with full winding resistance, insulation resistance (IR), and encoder signal verification
• Cross-reference matching for superseded part numbers — for example, earlier motor variants that have been replaced by 3HAC057547-004 in the current ABB spare parts catalog

For facilities operating IRB6640 robots under long-term maintenance contracts (10+ years post-installation), DriveKNMS offers a standing purchase order program to reserve critical axis motor stock against scheduled preventive maintenance intervals.

Quality Control for the IRB6640 Range

All IRB6640 motor and drive components processed by DriveKNMS undergo a structured inspection protocol before dispatch:

• Winding resistance test: Phase-to-phase and phase-to-ground resistance measured against ABB factory specification tolerances
• Insulation resistance (IR) test: 500V DC Megger test, minimum 100 MΩ acceptance threshold
• Encoder/resolver signal verification: Sine/cosine output amplitude and phase offset checked against reference values for the specific motor frame
• Pinion gear inspection: Tooth profile checked for pitting, spalling, and flank wear using optical comparator; backlash measured against gearbox interface specification
• Functional run test: Where test bench infrastructure permits, motors are run under no-load conditions at rated speed to verify bearing noise, thermal rise, and commutation stability
• Packaging: Anti-static bag, foam-lined export carton, desiccant pack; shaft and connector protected with end caps
