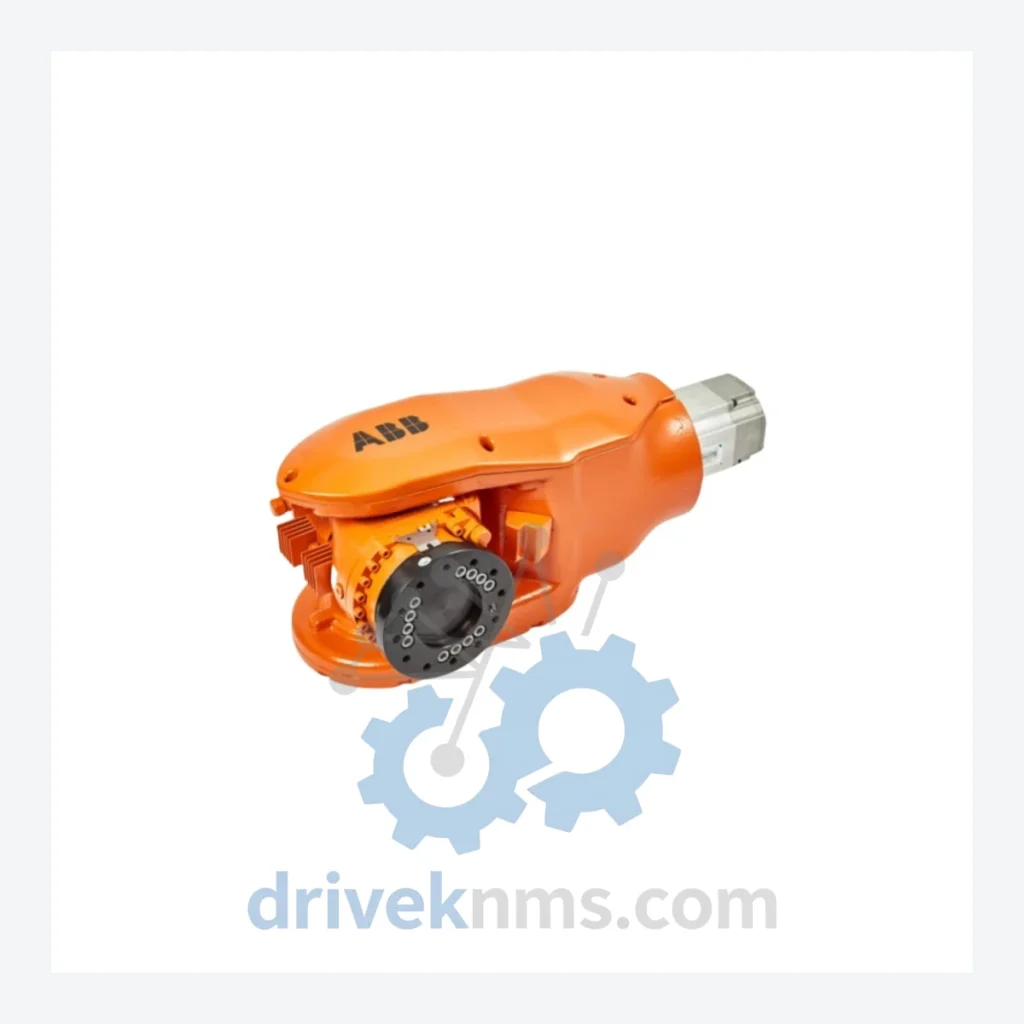

ABB IRB Series Servo Motors: 3HAC063644-002 / 3HAC024621-002 / 3HAC024631-001

Technical Dossier

Product Details And Specifications

ABB IRB Series: Comprehensive Servo Motor Range and Technical Overview

The ABB IRB series of industrial robots and their associated servo motor modules represent one of the most widely deployed motion control platforms in global heavy industry. IRB6650S, IRB1600, and IRB6600 variants are installed across petrochemical refineries, nuclear facility material handling systems, automotive body-in-white welding lines, and continuous-process chemical plants. The servo motors within these robot families — identified by ABB's 3HAC part numbering system — are precision-wound AC servo units integrated with the robot's S4C+, S4Cplus, IRC5, and OmniCore controller generations. Their global installed base, spanning facilities in Europe, the Middle East, East Asia, and North America, creates sustained demand for replacement units, particularly as original equipment enters its 10–20 year service window.

The Evolution of IRB Series Architecture

ABB's IRB robot architecture has evolved through four distinct controller generations, each imposing specific servo motor compatibility constraints. The S4 and S4C controllers (introduced in the early 1990s) used resolver-based feedback servo motors with proprietary ABB drive cards. The S4Cplus generation (late 1990s to mid-2000s) introduced higher-resolution encoders and revised motor flange standards, making S4-era motors non-interchangeable without axis computer reconfiguration. The IRC5 controller (2004–present) standardized on a modular drive unit architecture, with servo motors communicating via the SREA (Serial Robot Encoder Adapter) protocol. OmniCore (2019–present) introduced EtherNet/IP-based servo feedback, requiring motors with updated encoder electronics. Procurement teams must verify controller generation before ordering replacement servo motors, as 3HAC part numbers are not universally cross-compatible across generations. IRB6650S units, for example, use axis-specific motor sizing that differs from the standard IRB6600 payload configuration despite sharing the same mechanical envelope.

ABB IRB Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the primary servo motor and associated drive components across the IRB1600, IRB6600, and IRB6650S robot families. All units are classified by functional role within the robot axis configuration.

IRB6650S — 3HAC063644-002: Axis 1–3 servo motor for IRB6650S/125/3.5 and /200/3.0 variants; high-torque primary axis unit.
IRB1600 — 3HAC024621-002: Axis 2 servo motor for IRB1600/6/1.45 and /10/1.45; mid-range payload articulation motor.
IRB6600 — 3HAC024631-001: Axis 3 servo motor for IRB6600/175/2.55 and /200/2.5; heavy-duty elbow joint drive unit.
3HAC026770-001: Axis 1 servo motor for IRB6600 and IRB6650 series; base rotation primary drive.
3HAC026771-001: Axis 2 servo motor for IRB6600/175 and /200 configurations; shoulder joint actuator.
3HAC026772-001: Axis 4 servo motor for IRB6600 series; wrist rotation drive unit.
3HAC026773-001: Axis 5 servo motor for IRB6600 series; wrist bend actuator.
3HAC026774-001: Axis 6 servo motor for IRB6600 series; tool flange rotation drive.
3HAC14178-1: Axis 1 servo motor for IRB1600 series; base rotation unit, resolver feedback type.
3HAC14179-1: Axis 3 servo motor for IRB1600 series; forearm lift actuator.
3HAC14180-1: Axis 4 servo motor for IRB1600 series; wrist rotation drive.
3HAC14181-1: Axis 5 servo motor for IRB1600 series; wrist bend actuator.
3HAC14182-1: Axis 6 servo motor for IRB1600 series; tool flange drive unit.
3HAC031683-001: Axis 1 servo motor for IRB6650S/125 and /200; high-inertia base rotation unit.
3HAC031684-001: Axis 2 servo motor for IRB6650S series; shoulder joint primary actuator.
3HAC031685-001: Axis 3 servo motor for IRB6650S series; elbow joint drive, reinforced bearing configuration.
3HAC17484-7: Resolver unit assembly for IRB6600/IRB6650S axis 1–3; feedback transducer sub-assembly.
3HAC025338-001: Brake assembly for IRB6600 axis 2–3 servo motors; spring-applied electromagnetic type.

Sourcing Hard-to-Find & Obsolete IRB Series Parts

ABB's official end-of-life policy for S4C and S4Cplus-era servo motors means that 3HAC part numbers associated with those controller generations are no longer manufactured or stocked by ABB's authorized distribution network. DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished servo motor units for the IRB1600, IRB6600, and IRB6650S families, specifically targeting the gap between ABB's production cutoff and the operational lifespan of installed robot fleets. For facilities operating IRB6600 units commissioned before 2010, the probability of requiring axis 1–3 servo motor replacement within a 5-year window is statistically significant based on bearing and winding fatigue data. DriveKNMS sources units from decommissioned robot lines, certified refurbishers, and authorized surplus channels, providing a documented chain of custody for each unit. Emergency same-day quotation is available for critical production-line failures.

Quality Control for the IRB Series Range

Servo motors for the IRB6600 and IRB6650S series present specific test challenges due to their integrated resolver feedback systems and the precision tolerances of the ABB harmonic drive gearboxes they interface with. DriveKNMS applies the following verification protocol to all IRB series servo motor units prior to dispatch: (1) Winding resistance and insulation resistance (IR) testing at 500V DC across all three phases to ground, with acceptance threshold of ≥100 MΩ. (2) Resolver signal integrity verification using a dedicated resolver-to-digital converter bench, confirming sine/cosine output amplitude and phase accuracy within ABB specification. (3) Bearing noise and runout measurement under no-load rotation at rated speed, with rejection of any unit exhibiting audible irregularity or radial runout exceeding 0.02 mm. (4) Brake engagement and release force measurement for units equipped with spring-applied electromagnetic brakes, verified against ABB's torque specification for the relevant axis. (5) Dimensional inspection of motor flange, shaft diameter, and keyway to confirm compatibility with the target robot axis gearbox interface. Each unit ships with a test report documenting all measured values.
