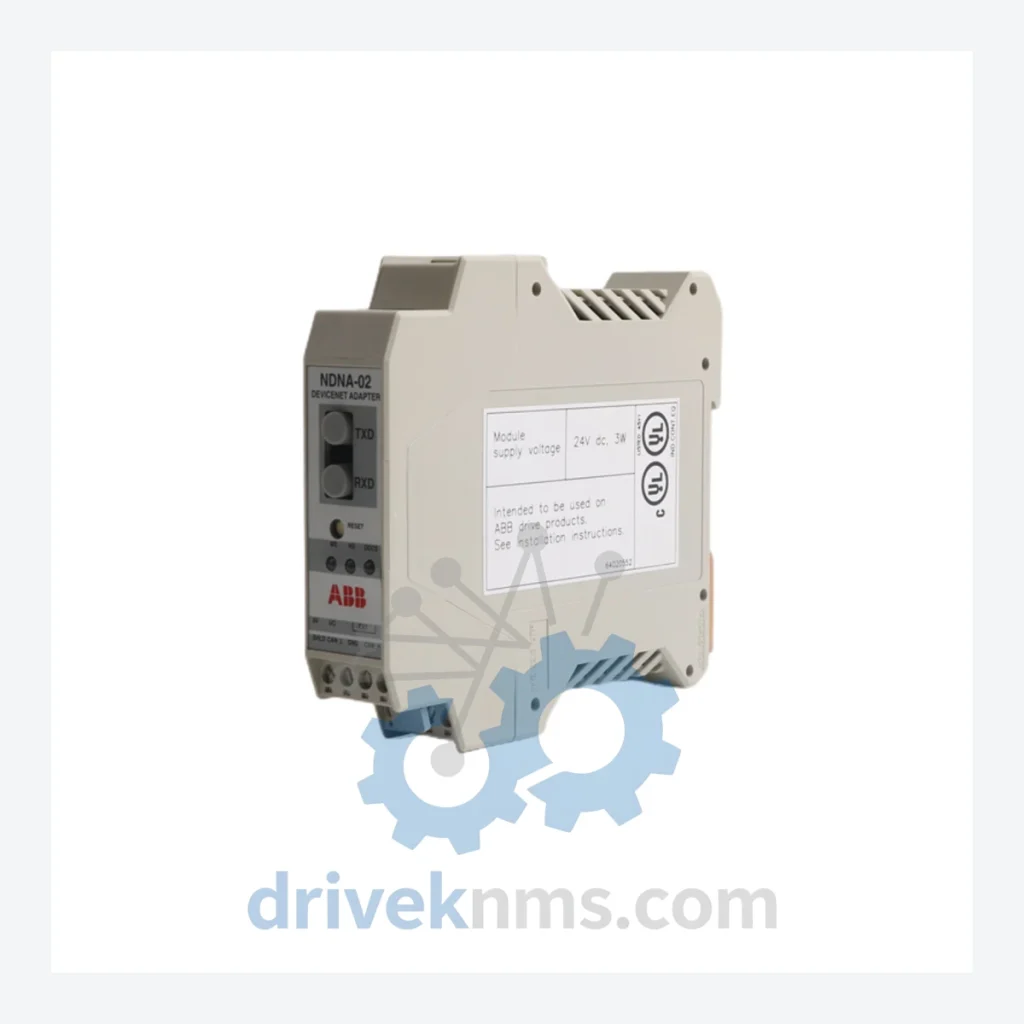

ABB NDNA-02 DeviceNet Adapter Module – Obsolete ACS Drive Spare Part

When an ABB NDNA-02 DeviceNet Adapter fails in a production environment, the consequences extend far beyond a single module replacement. This fieldbus adapter is the communication backbone between ABB ACS-series variable frequency drives and DeviceNet-based PLC control networks. Its failure severs the real-time command and feedback loop that governs motor speed, torque, and process sequencing. In facilities where this architecture has been in service for 15–20 years, the NDNA-02 is no longer manufactured — and the engineering cost of migrating an entire drive network to a modern fieldbus protocol (EtherNet/IP, PROFINET) routinely exceeds USD $500,000 when factoring in PLC reprogramming, drive replacement, commissioning downtime, and production loss. A single verified spare unit from DriveKNMS eliminates that exposure at a fraction of the cost.

Technical Specifications

Solving the Discontinued Hardware Crisis

The NDNA-02 was designed for a generation of industrial automation built on DeviceNet — a fieldbus standard that remains deeply embedded in automotive assembly lines, food processing plants, material handling systems, and water treatment facilities worldwide. ABB's decision to discontinue this module did not retire the thousands of ACS-series drives already installed in the field. Those drives continue to run critical processes, and their DeviceNet communication layer depends entirely on a functioning NDNA-02.

Replacing the drive itself is not a straightforward decision. A single ACS800 cabinet drive in a high-power application represents a capital expenditure of $30,000–$150,000 or more, and that figure does not include the engineering hours required to reconfigure the control system, retrain operators, or validate the new installation against process safety requirements. For plant managers operating under tight maintenance budgets and aging infrastructure, the rational strategy is not replacement — it is asset life extension through verified spare parts procurement.

Maintaining a buffer stock of NDNA-02 units is the lowest-cost insurance policy available for any facility running ABB drives on a DeviceNet network. A single unplanned outage lasting 48–72 hours in a continuous process environment can generate production losses that dwarf the cost of a spare module by an order of magnitude. The math is straightforward; the execution requires a reliable source.

DriveKNMS specializes in sourcing and verifying obsolete ABB drive components. Our inventory is not speculative — units are physically inspected before listing.

Condition & Reliability Assurance

Obsolete modules sourced from secondary markets carry inherent risk. Our 5-step QA protocol is designed to identify and eliminate the failure modes most common in aged electronic assemblies:

Step 1 – Visual and Mechanical Inspection: Each unit is examined for physical damage, connector pin integrity, and housing condition. Bent or corroded DeviceNet connector pins are a primary failure point and are assessed under magnification.

Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the leading cause of latent failure in drive option modules stored for extended periods. We check for visible bulging, electrolyte leakage, and measure capacitance where test points are accessible.

Step 3 – PCB and Solder Joint Inspection: Cold solder joints and PCB trace corrosion are inspected under controlled lighting. Boards showing oxidation on exposed copper areas are flagged for further evaluation.

Step 4 – Firmware Version Verification: Where the module's firmware revision is readable, it is documented and cross-referenced against known compatible firmware versions for the target drive series. Mismatched firmware can cause silent communication errors that are difficult to diagnose in the field.

Step 5 – Functional Communication Test (where applicable): Units are bench-tested for DeviceNet node response where test infrastructure permits. Results are documented and available upon request.

Units that do not pass all applicable steps are not listed for sale.

Key Features for System Maintenance

The NDNA-02 is a direct drop-in replacement for any ABB ACS-series drive equipped with a compatible option slot. Installation does not require drive reprogramming, PLC logic modification, or changes to the DeviceNet network configuration. The replacement module assumes the same node address and communication parameters as the failed unit, restoring full drive-to-network communication without engineering intervention.

This characteristic — true plug-and-play replacement — is what makes verified spare stock so operationally valuable. Maintenance teams can execute the swap during a scheduled maintenance window or in response to an unplanned failure, without engaging external engineering resources or incurring commissioning costs. The alternative — migrating to a modern fieldbus adapter — requires PLC reprogramming, drive parameter reconfiguration, network topology changes, and a full functional test sequence. That process is measured in days and dollars, not hours.

For facilities managing multiple ACS-series drives on a single DeviceNet segment, holding two or three NDNA-02 units in bonded spare stock is a defensible maintenance strategy that any plant engineering review will support.

Extending Automation Asset Life by 5–10 Years: A Practical Framework

The decision to extend the service life of a legacy drive system rather than replace it is a capital allocation decision, not a technical one. The technical path is well-established. What plant managers need is a structured argument to present to finance and operations leadership.

The core calculation is straightforward: identify the total replacement cost of the drive system (hardware, engineering, installation, commissioning, lost production during cutover), then compare it against the annual cost of a proactive spare parts program. In most cases, a spare parts budget of 1–3% of the system replacement value will sustain reliable operation for an additional 5–10 years, provided the right components are available when needed.

For ABB ACS-series drive systems on DeviceNet, the critical spare list is short: the NDNA-02 adapter, the drive's main control board (RMIO or equivalent), gate driver boards for the power stage, and the keypad/panel unit. These four component categories cover the majority of field failures. Sourcing and bonding these parts before a failure occurs — rather than scrambling through obsolete parts brokers during an outage — is the operational discipline that separates facilities with 95%+ uptime from those that do not.

DriveKNMS maintains sourcing relationships specifically for this category of obsolete ABB drive components. Inquiries about multi-unit procurement or long-term supply agreements are welcome.

FAQ

Q: What warranty applies to an obsolete NDNA-02 unit?
A: We provide a 90-day warranty covering functional defects identified under normal operating conditions. Given the discontinued status of this part, we recommend treating the warranty period as a validation window and procuring additional units for long-term spare stock.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are inspected for ABB part markings, PCB labeling, and construction quality consistent with genuine ABB manufacturing. We do not source from unverified channels. If you require additional documentation, contact us before purchase.

Q: Should I buy more than one unit?
A: For any facility running more than two ACS-series drives on a DeviceNet network, holding a minimum of two NDNA-02 units in spare stock is a reasonable operational posture. The cost of a second unit is negligible relative to the cost of a single unplanned outage while waiting for sourcing.

Q: Can this module be used with ACS880 or newer ABB drives?
A: The NDNA-02 is designed for the option slot architecture of the ACS550, ACS800, and ACS600 series. Compatibility with ACS880 or other newer platforms should be verified against ABB's option module compatibility documentation before purchase. Contact us if you need assistance confirming compatibility.

Q: What is the lead time if you are out of stock?
A: Stock levels for obsolete parts fluctuate. If current inventory is depleted, contact us directly — we maintain active sourcing channels and can advise on availability and lead time.
