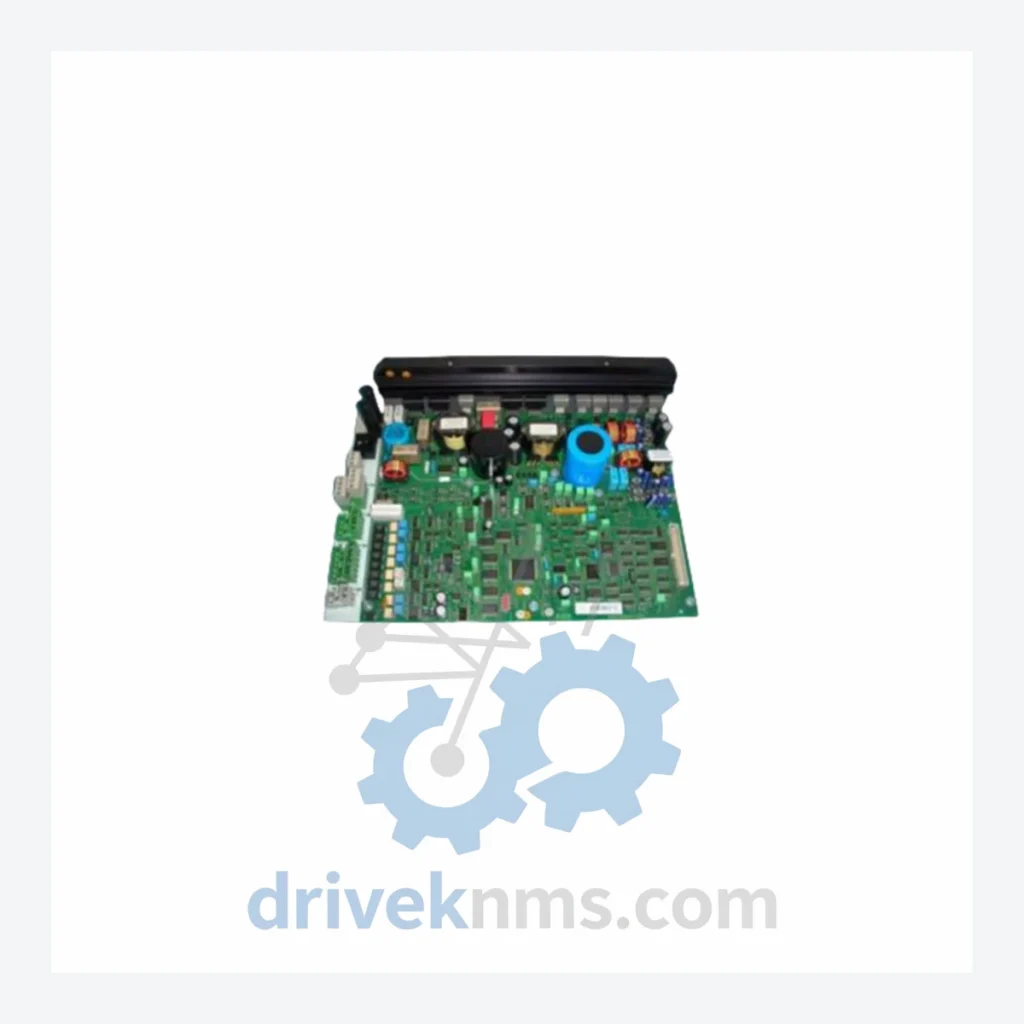

ABB PXAK401 3BSE013564R1 I/O Module – Obsolete Advant Series Spare Part

Technical Dossier

Product Details And Specifications

ABB PXAK401 3BSE013564R1 I/O Module – Obsolete Advant Series Spare Part

When a critical I/O module in your ABB Advant or MasterPiece DCS fails, the clock starts immediately. A full system migration to a modern DCS platform — engineering, commissioning, operator retraining, and production downtime — routinely exceeds USD $2–5 million for a mid-scale process plant. The PXAK401 (part number 3BSE013564R1) is a discontinued ABB component that has not been in active production for years. Finding a verified, functional unit on short notice is not a procurement exercise — it is an asset protection decision. DriveKNMS maintains sourced inventory of hard-to-find legacy ABB modules specifically to protect facilities from this scenario.

📩 Obsolete Part – Limited Inventory. Secure your spare now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Note: Electrical parameters are verified per unit during our QA process. Specifications are not published here to prevent misapplication. Contact us for a full datasheet and test report.

Solving the Discontinued Hardware Crisis

The ABB Advant and MasterPiece control platforms were workhorses of the process automation industry through the 1990s and 2000s. Many facilities — particularly in oil & gas, pulp & paper, power generation, and chemical processing — built their entire control architecture around these systems. ABB has long since ended support and parts production for this series, leaving plant operators with a stark choice: absorb the capital expenditure of a full DCS migration, or locate and stockpile the specific modules that keep the existing system operational.

The PXAK401 sits within the I/O layer of these legacy architectures. It is not a peripheral component. A failure here directly interrupts signal communication between field instruments and the controller, which in most configurations means a process shutdown. There is no software patch, no firmware workaround, and no cross-compatible modern substitute that installs without engineering rework. The only operationally safe resolution is a like-for-like replacement with a verified PXAK401 unit.

Facilities that have extended the life of their Advant/MasterPiece systems by 5–10 years beyond ABB’s end-of-support date have done so through a consistent strategy: identify every single-point-of-failure module in the control architecture, calculate the mean time between failures based on operational history, and build a strategic spare inventory before the open market dries up. The cost of holding three to five spare PXAK401 units is a fraction of one week of unplanned downtime. Plant managers who treat legacy spare procurement as a capital asset decision — rather than a reactive maintenance cost — consistently outperform peers on total cost of ownership over a 10-year horizon.

Condition & Reliability Assurance

Every PXAK401 unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Visual & Mechanical Inspection: Board-level examination for physical damage, pin corrosion, connector wear, and housing integrity.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy I/O modules. Each unit is assessed for capacitor condition; units showing ESR drift or visible degradation are either recapped with equivalent-spec components or rejected.
• Step 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for the target system. Mismatched firmware in a replacement module can cause silent communication errors that are difficult to diagnose in the field.
• Step 4 – Pin & Connector Corrosion Remediation: Backplane connectors and I/O terminal pins are cleaned and inspected under magnification. Corroded contacts are treated or the unit is rejected.
• Step 5 – Functional Burn-In Test: Units are powered and tested under load conditions before packaging. Test records are retained and available upon request.

Key Features for System Maintenance

• Drop-in replacement: The PXAK401 installs directly into the existing Advant/MasterPiece backplane slot with no hardware modification.
• No reprogramming required: The module operates within the existing system configuration. There is no need to modify controller logic, I/O mapping, or HMI tag assignments.
• Avoids engineering rework costs: Unlike migration to a modern I/O platform, a like-for-like PXAK401 replacement requires no system integrator engagement, no FAT/SAT testing cycles, and no operator retraining.
• Preserves validated process control logic: Facilities operating under regulatory frameworks (FDA, ATEX, SIL) that have validated their existing control system avoid the re-validation burden that accompanies any hardware platform change.
• Immediate dispatch: In-stock units ship within 24–48 hours of order confirmation, supporting emergency maintenance timelines.

FAQ

Q: What warranty applies to an obsolete part like the PXAK401?
A: DriveKNMS provides a 12-month warranty on all units that pass our full 5-step QA process. The warranty covers functional failure under normal operating conditions. Units sold as-is or for parts carry no warranty and are clearly identified as such.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are sourced through documented supply chains — decommissioned plant equipment, authorized surplus dealers, and verified industrial liquidators. Physical markings, board revision codes, and component profiles are cross-referenced against known genuine units. We do not source from unverified grey-market channels.

Q: Should I buy more than one unit?
A: For any facility still operating an Advant or MasterPiece system, holding a minimum of two spare PXAK401 units is a defensible maintenance strategy. Open-market availability of this module is declining. Units that are available today may not be available in 18 months. The cost of a second spare is negligible relative to the cost of a sourcing failure during an unplanned outage.

Q: Can you source additional units if I need a larger quantity?
A: Yes. Contact us with your quantity requirement and timeline. We maintain sourcing relationships across multiple regions and can often locate additional units for customers with larger strategic spare requirements.
