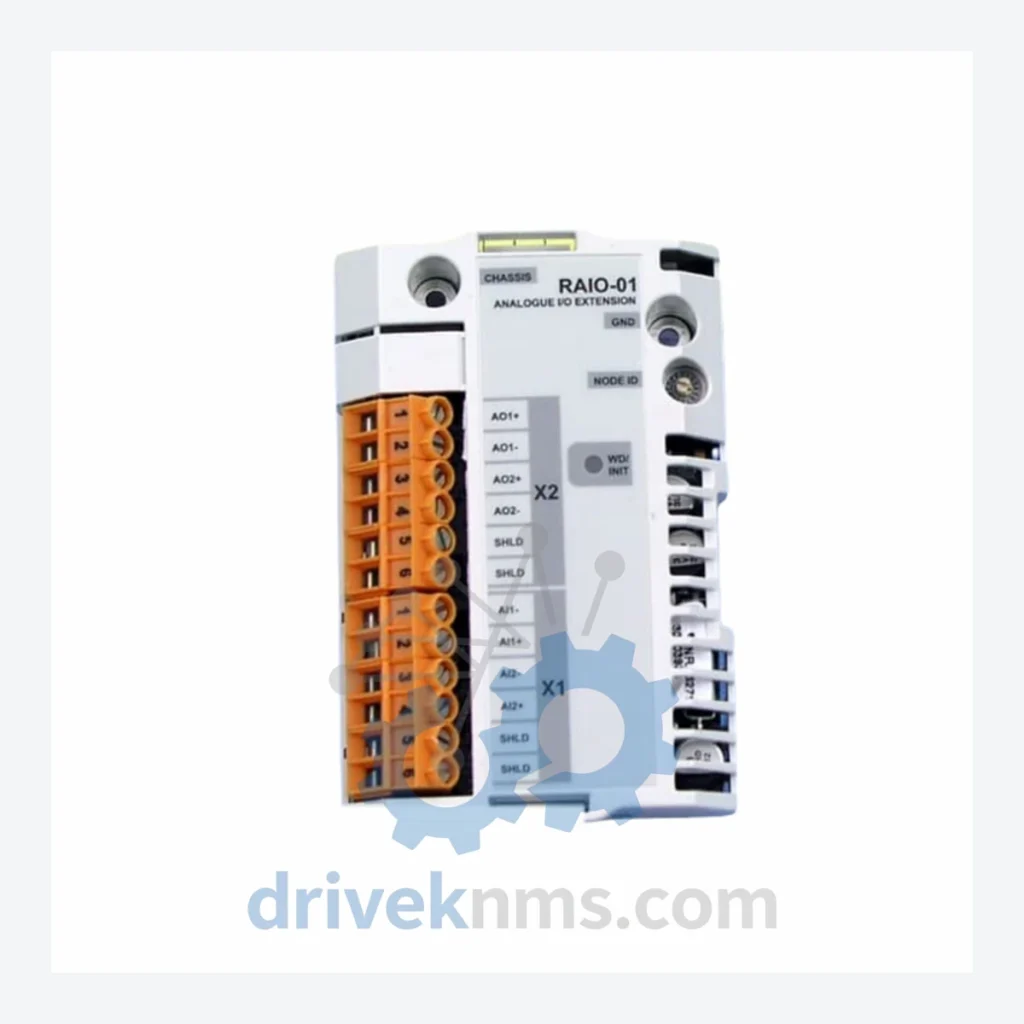

ABB RAIO-01 64379224F Analogue I/O Extension Module – Obsolete AC500 Spare Part

Technical Dossier

Product Details And Specifications

ABB RAIO-01 64379224F Analogue I/O Extension Module – Obsolete AC500 Spare Part

When an analogue I/O module fails in a legacy ABB AC500 control system, the consequences extend far beyond a single component. The RAIO-01 sits at the nerve center of process signal acquisition — temperature loops, pressure transmitters, flow meters, and actuator feedback all route through this module. Its failure does not merely interrupt a machine; it can halt an entire production line. For facilities running AC500-based automation infrastructure, the cost of a forced migration to a current-generation PLC platform — including engineering hours, new hardware, software re-commissioning, and production downtime — routinely reaches six to seven figures. DriveKNMS holds verified stock of the ABB RAIO-01 64379224F. This is not a commodity item. Availability is finite and will not be replenished from the manufacturer.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB AC500 platform was widely deployed across process industries — water treatment, pulp and paper, food and beverage, and discrete manufacturing — throughout the 2000s and 2010s. The RAIO-01 module served as the primary analogue signal interface, translating 4–20 mA and voltage signals from field instruments into data the CPU could act upon. ABB has since transitioned its automation portfolio, and the RAIO-01 is no longer available through standard distribution channels.

For plant managers and maintenance engineers, this creates a specific and serious problem: the module cannot be substituted with a current-generation ABB I/O card without modifying the hardware rack, updating the firmware, and in many cases, rewriting the control program. None of these steps are trivial. Each introduces risk, requires specialist labor, and demands a planned shutdown window that most continuous-process facilities cannot easily schedule.

The only low-disruption path is a direct replacement with an identical RAIO-01 64379224F unit. DriveKNMS sources these modules through verified industrial surplus and decommissioned asset channels. Each unit is individually inspected before dispatch.

How Replacement Spare Parts Extend Automation Asset Life by 5–10 Years

The economic case for maintaining a legacy control system — rather than replacing it — is straightforward when the right spare parts are available. A single RAIO-01 module, secured in advance, eliminates the primary failure scenario that would otherwise force a capital expenditure decision. Consider the following maintenance strategy for facilities operating AC500-based systems:

1. Conduct a single-point-of-failure audit. Identify every I/O module in the system for which no spare exists on-site. The RAIO-01, given its obsolete status, should be treated as a critical vulnerability if no backup unit is held.

2. Establish a minimum two-unit buffer. One unit for immediate swap-out on failure; one unit held in reserve. For systems running 24/7, the cost of a single unplanned shutdown will exceed the cost of both spares combined.

3. Document firmware versions before any swap. The 64379224F version code is not cosmetic — it identifies a specific firmware build. Mixing firmware versions across a rack can introduce communication errors. Confirm the version code on any replacement before installation.

4. Schedule preventive inspection cycles. Even modules in service benefit from periodic inspection: connector pin condition, backplane seating, and signal drift checks. Catching degradation before failure avoids emergency procurement under time pressure.

5. Plan the end-of-life transition on your own timeline. With a reliable spare inventory in place, the decision to migrate to a new platform becomes a scheduled capital project — not a crisis response. This alone can save hundreds of thousands of dollars in emergency engineering costs.

Condition & Reliability Assurance

Every RAIO-01 64379224F unit dispatched by DriveKNMS passes a structured 5-step quality process before shipment:

Step 1 – Visual and Mechanical Inspection: Full examination of the PCB, connector pins, and housing for physical damage, corrosion, or pin deformation. Units with any sign of pin oxidation or backplane connector wear are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are a primary failure mode in modules of this generation. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units showing capacitor degradation are either reconditioned with verified-grade replacements or removed from stock.

Step 3 – Firmware Version Verification: The firmware build code (64379224F) is confirmed against the physical module markings and, where possible, verified against known-good reference units. No unit is shipped with an unverified or mismatched firmware identifier.

Step 4 – Functional Signal Test: Where test equipment permits, analogue input and output channels are exercised to confirm signal integrity within specification.

Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with foam cushioning. Shipping packaging is selected to withstand international freight handling.

Key Features for System Maintenance

The RAIO-01 64379224F is a direct hardware replacement for the same part number within the AC500 rack system. Key maintenance advantages:

Drop-in replacement: The module slots directly into the existing AC500 I/O rack. No rack modification, no wiring changes, no hardware re-engineering.

No reprogramming required: Because the module is identical to the original, the existing CPU program requires no modification. Signal addresses, scaling parameters, and I/O mapping remain intact.

Avoids engineering reconstruction costs: Migrating to a different I/O platform requires an engineer to remap every analogue channel in the control program — a process that can take days and introduces significant commissioning risk. A like-for-like replacement eliminates this entirely.

Immediate operational restoration: With a spare unit on-site, mean time to repair (MTTR) for an analogue I/O failure is reduced from days or weeks to hours.

Frequently Asked Questions

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty against defects in material and workmanship on all refurbished units. New Old Stock (NOS) units carry a 180-day warranty. Warranty claims are handled directly — no third-party processing.

How do I confirm the unit is genuine and not counterfeit?
All units are sourced from traceable industrial surplus channels — decommissioned plant assets, authorized surplus dealers, and verified distributor overstock. We do not source from unverified grey-market channels. Physical markings, label integrity, and PCB characteristics are cross-referenced against known-genuine reference units during inspection.

Should I purchase more than one unit?
For any facility where the AC500 system is critical to production, holding a minimum of two RAIO-01 units on-site is the standard recommendation. The module is no longer manufactured. Once current global surplus stock is exhausted, no further supply will exist. Procurement under emergency conditions — after a failure has already occurred — carries both price and availability risk.

Can you source other AC500 modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple platforms. Contact us with your full part number and required quantity.
