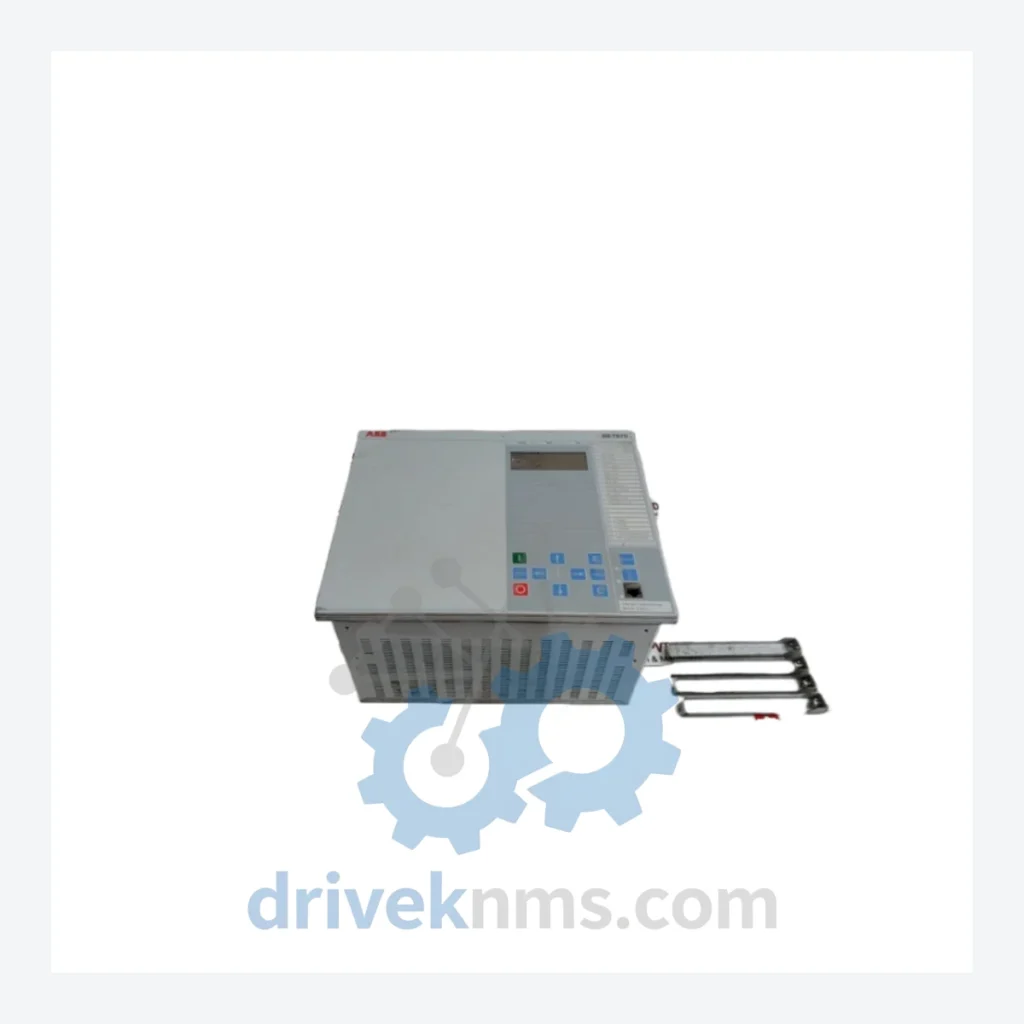

ABB RET670 1MRK002816-AA Transformer Protection Relay – Obsolete RET670 Series Spare Part

Technical Dossier

Product Details And Specifications

ABB RET670 1MRK002816-AA Transformer Protection Relay – Obsolete RET670 Series Spare Part

When the ABB RET670 1MRK002816-AA fails in a live substation or industrial power protection system, the consequences extend far beyond a single module replacement. A forced migration to a current-generation protection platform — including new IEDs, re-engineering of protection schemes, SCADA reconfiguration, relay coordination studies, and site commissioning — routinely costs between USD 200,000 and USD 800,000 per bay, before accounting for production downtime. For facilities operating multiple transformer bays on legacy RET670 architecture, the exposure is measured in millions. DriveKNMS maintains verified physical stock of the 1MRK002816-AA. Securing a spare now is not a procurement exercise — it is asset protection.

Technical Specifications

Note: Electrical parameters such as rated voltage, current input range, and auxiliary supply specifications vary by sub-variant and firmware revision. DriveKNMS will confirm exact specifications against your existing unit upon inquiry. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The RET670 series was ABB's flagship transformer protection platform for over a decade, deployed extensively in utilities, petrochemical plants, steel mills, and large industrial substations worldwide. The 1MRK002816-AA variant occupies a specific functional role within the RET670 chassis — its protection logic, I/O mapping, and firmware are integrated into the existing protection scheme at the engineering level.

Replacing this module with a current-generation REX640 or REF615 is not a drop-in substitution. It requires a full protection philosophy review, new setting calculations, updated single-line diagrams, factory acceptance testing, and a planned outage window. In regulated industries, it also triggers mandatory re-approval from the grid operator or safety authority. The engineering cost alone typically exceeds the value of the protected asset's remaining operational life in many brownfield facilities.

The operationally sound decision — the one that preserves capital and avoids regulatory disruption — is to maintain a verified spare of the 1MRK002816-AA and extend the existing system's service life by 5 to 10 years. During that window, a planned, budgeted migration can be executed on the facility's schedule, not in response to an emergency failure.

For plant managers and asset integrity engineers facing pressure to justify legacy system continuation: the cost of one 1MRK002816-AA spare, properly stored, is a fraction of one day of unplanned outage on a large transformer bay. The arithmetic is straightforward.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality process to all obsolete protection relay stock before dispatch:

• Step 1 – Visual and Mechanical Inspection: Full examination of PCB surfaces, connector pins, and housing integrity. Any unit showing physical damage, corrosion, or evidence of prior field repair is rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in long-stored relay hardware. Each unit undergoes ESR (Equivalent Series Resistance) measurement on critical capacitors. Units with degraded capacitors are either recapped with OEM-equivalent components or quarantined.
• Step 3 – Firmware Version Verification: The firmware revision is read and documented. Compatibility with the customer's existing RET670 configuration is confirmed prior to shipment. Mismatched firmware versions are disclosed — never shipped without customer acknowledgment.
• Step 4 – Pin and Contact Integrity Check: All I/O terminals, binary input connectors, and communication ports are inspected for oxidation, mechanical deformation, and contact resistance. Affected contacts are cleaned or the unit is rejected.
• Step 5 – Functional Power-On Test: Where test infrastructure permits, units are powered and basic self-diagnostic routines are executed. Results are documented and provided with the shipment.

Units are shipped in anti-static packaging with desiccant. A condition report is included with every order.

Key Features for System Maintenance

• Drop-in replacement: The 1MRK002816-AA installs directly into the existing RET670 chassis without mechanical modification.
• No re-engineering required: Protection settings, logic configurations, and SCADA point lists remain intact. Commissioning time is measured in hours, not weeks.
• Avoids forced platform migration: Retaining the existing RET670 architecture eliminates the need for new relay coordination studies, updated protection documentation, and grid operator re-approval.
• Budget-cycle compatible: Spare part procurement fits within routine maintenance budgets. A full platform replacement requires capital expenditure approval and multi-year project planning.
• Reduces outage exposure: A pre-positioned spare eliminates the lead time risk associated with sourcing obsolete hardware during an active fault event — when every hour of transformer outage carries direct financial and operational cost.

FAQ

Q: What warranty applies to an obsolete part like the 1MRK002816-AA?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms are confirmed in writing prior to order confirmation.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through documented industrial decommissioning channels or authorized surplus networks. ABB part markings, serial number formats, and PCB revision codes are verified against known-good references. Provenance documentation is available upon request.

Q: Should I purchase more than one unit as a long-term reserve?
A: For facilities with multiple transformer bays using RET670 protection, holding two to three units is a defensible asset management position. As global stock of the 1MRK002816-AA continues to deplete, future sourcing will become progressively more difficult and expensive. Procurement now, while verified stock exists, is the lower-risk strategy.

Q: Can DriveKNMS assist with firmware compatibility questions?
A: Yes. Provide your existing unit's firmware version and hardware revision, and our technical team will confirm compatibility before shipment.

Status: DRAFT
