ABB S200 Series: Comprehensive Module Range and Technical Overview

The ABB S200 series is a modular I/O and interface platform developed under ABB's Advant and Freelance DCS architecture. It has accumulated significant installed base across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process chemical plants. The S200 backplane architecture supports deterministic signal conditioning and direct integration with ABB's AC800F and AC800M controller families, making it a long-term fixture in brownfield automation environments where rip-and-replace is operationally and economically prohibitive. Its compact DIN-rail form factor and standardized terminal block interface have made it a preferred I/O subsystem in control cabinets where space density and signal integrity are primary constraints.

The Evolution of S200 Architecture

The S200 series originated as part of ABB's Advant Controller 200 (AC200) platform introduced in the late 1980s, designed to provide modular, rack-based I/O for process automation. Early variants used parallel backplane communication with proprietary ABB bus protocols. As the platform matured through the 1990s and into the 2000s, ABB migrated the S200 I/O philosophy into the Freelance DCS ecosystem, where modules retained physical and electrical compatibility but gained support for PROFIBUS DP and later HART pass-through on analog channels.

The transition from AC200 to AC800F controller pairing introduced firmware-level changes that affected module addressing and diagnostic reporting. Integrators maintaining mixed-generation installations must verify firmware compatibility between the S200 I/O modules and the active controller version. Modules manufactured before 2005 may require adapter firmware or intermediate gateway hardware when paired with current-generation AC800F Rev. 6.x controllers. ABB formally announced end-of-active-development for the S200 hardware line, though spare parts and repair services remain available through authorized distributors and specialist suppliers such as DriveKNMS.

S200 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified S200 series module range, classified by functional category. Each entry reflects the module's primary role within a Freelance or AC200-based control architecture.

Digital Input Modules (DI)

• S200-IB8: 8-channel 24 VDC digital input, sink-type, with per-channel LED status indication.
• S200-IA8: 8-channel 120/230 VAC digital input, optically isolated, for high-voltage field device interfacing.
• S200-IT8: 8-channel digital input with integrated NAMUR sensor interface for proximity switches in Ex zones.
• S200-IE8: 8-channel digital input with extended diagnostics and short-circuit detection per channel.

Digital Output Modules (DO)

• S200-OB8: 8-channel 24 VDC digital output, source-type, 0.5 A per channel, with overload protection.
• S200-OT8: 8-channel relay output, SPDT contacts, 2 A at 230 VAC, for motor starter and valve actuator control.
• S200-OA4: 4-channel 120/230 VAC solid-state output, zero-crossing switching, for resistive and inductive loads.
• S200-OE4: 4-channel digital output with electronic fusing and per-channel diagnostics for safety-critical loops.

Analog Input Modules (AI)

• S200-IE4H: 4-channel 4–20 mA analog input with integrated HART protocol support, 16-bit resolution.
• S200-IA4: 4-channel ±10 V / 0–10 V analog input, 12-bit resolution, for transmitter and sensor signal conditioning.

Analog Output Modules (AO)

• S200-OE4H: 4-channel 4–20 mA analog output with HART pass-through, for control valve positioner interfacing.

Terminal Block & Interface Modules

• S200-TB1: Single-row terminal block interface, 16-point, for standard field wiring termination to S200 I/O modules.
• S200-TB2: Dual-row terminal block interface, 32-point, for high-density wiring configurations.

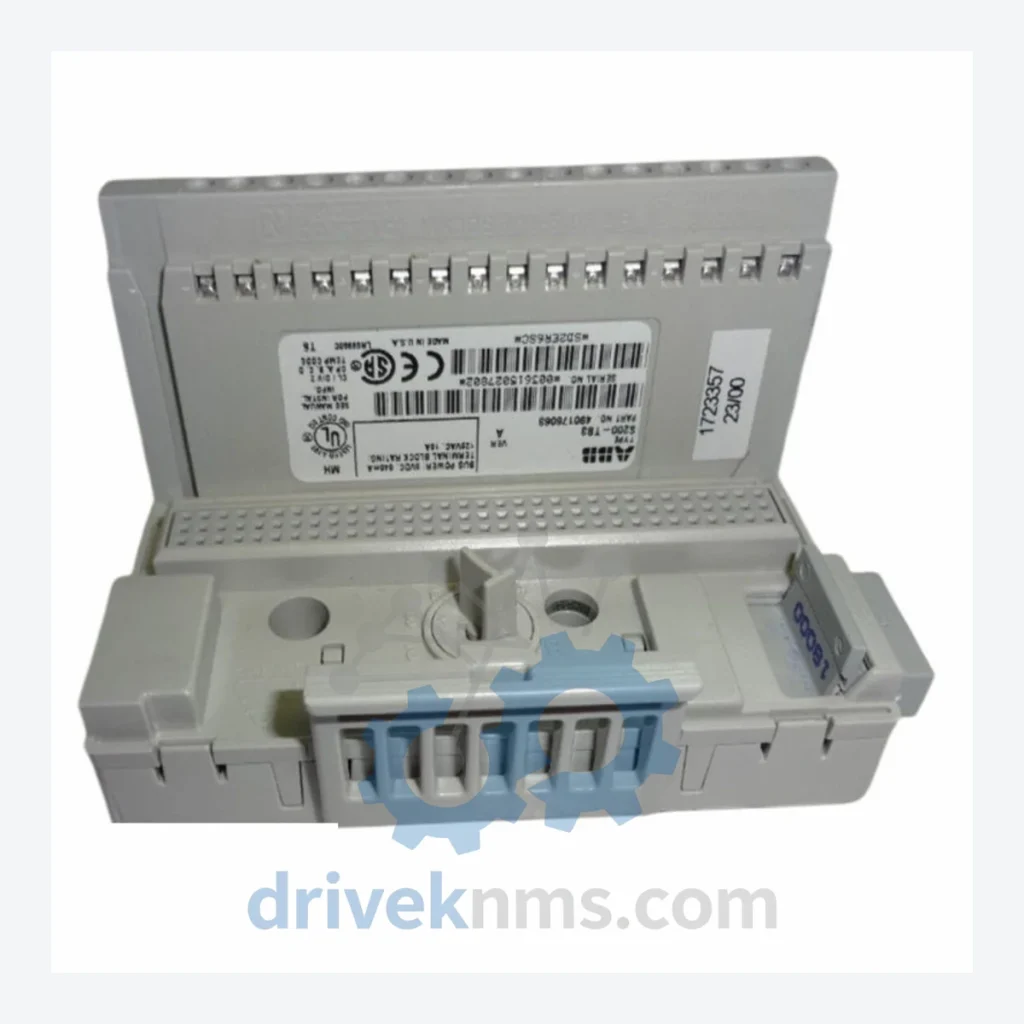

• S200-TB3: Triple-row terminal block interface, 48-point, optimized for multi-channel analog and digital mixed-signal panels.

Power Supply Modules (PS)

• S200-PS: 24 VDC rack power supply module, 5 A output, with redundancy support via parallel connection.
• S200-PM1: Power management module with diagnostics for bus voltage monitoring and load distribution reporting.

Communication & CPU Modules

• S200-CM1: PROFIBUS DP communication adapter for S200 I/O rack, supports up to 12 Mbit/s, GSD file configurable.
• S200-CB1: Coaxial bus coupler for legacy AC200 backplane communication, required for pre-2000 controller pairing.

Sourcing Hard-to-Find & Obsolete S200 Parts

ABB's S200 series has entered the mature-to-declining phase of its product lifecycle. ABB no longer manufactures new S200 hardware under standard production runs. Procurement of replacement modules must rely on authorized surplus channels, factory-refurbished stock, or specialist industrial spare parts suppliers.

DriveKNMS maintains a dedicated inventory of S200 series modules sourced from decommissioned plant equipment, controlled-environment storage, and verified surplus channels. All units are subject to pre-shipment functional testing. For end-users operating S200-based systems beyond the OEM support window, DriveKNMS provides lifecycle extension services including module-level repair, firmware verification, and cross-reference to compatible replacement modules within ABB's current CI801, CI830, and TB820 I/O families where direct substitution is feasible.

Customers requiring long-term maintenance agreements (LTMAs) for S200 infrastructure can contact DriveKNMS for structured supply contracts covering multi-year spare parts reservation and priority fulfillment.

Quality Control for the S200 Range

The S200 backplane uses a proprietary parallel bus architecture with edge-connector termination. Failure modes specific to this design include oxidized backplane contacts, cracked solder joints on bus connector pins, and EEPROM configuration data corruption in modules that have experienced power cycling beyond rated cycle counts.

DriveKNMS applies the following test protocol to all S200 modules prior to shipment:

• Visual inspection under 10× magnification for PCB damage, capacitor bulge, and connector wear.
• Powered functional test on an S200-compatible test rack with live backplane bus simulation.
• Per-channel signal verification for all I/O modules: digital channels tested at rated voltage and current; analog channels verified for linearity across the full 4–20 mA or 0–10 V range.
• HART communication verification on HART-capable analog modules using a calibrated HART communicator.
• Burn-in cycle: 4-hour continuous operation at ambient temperature before final packaging.
• Firmware version logging and documentation included with each shipment.
