ABB SDCS-CON-1 3BSE006196R1 Control Board – Obsolete DCS Series Spare Part

Technical Dossier

Product Details And Specifications

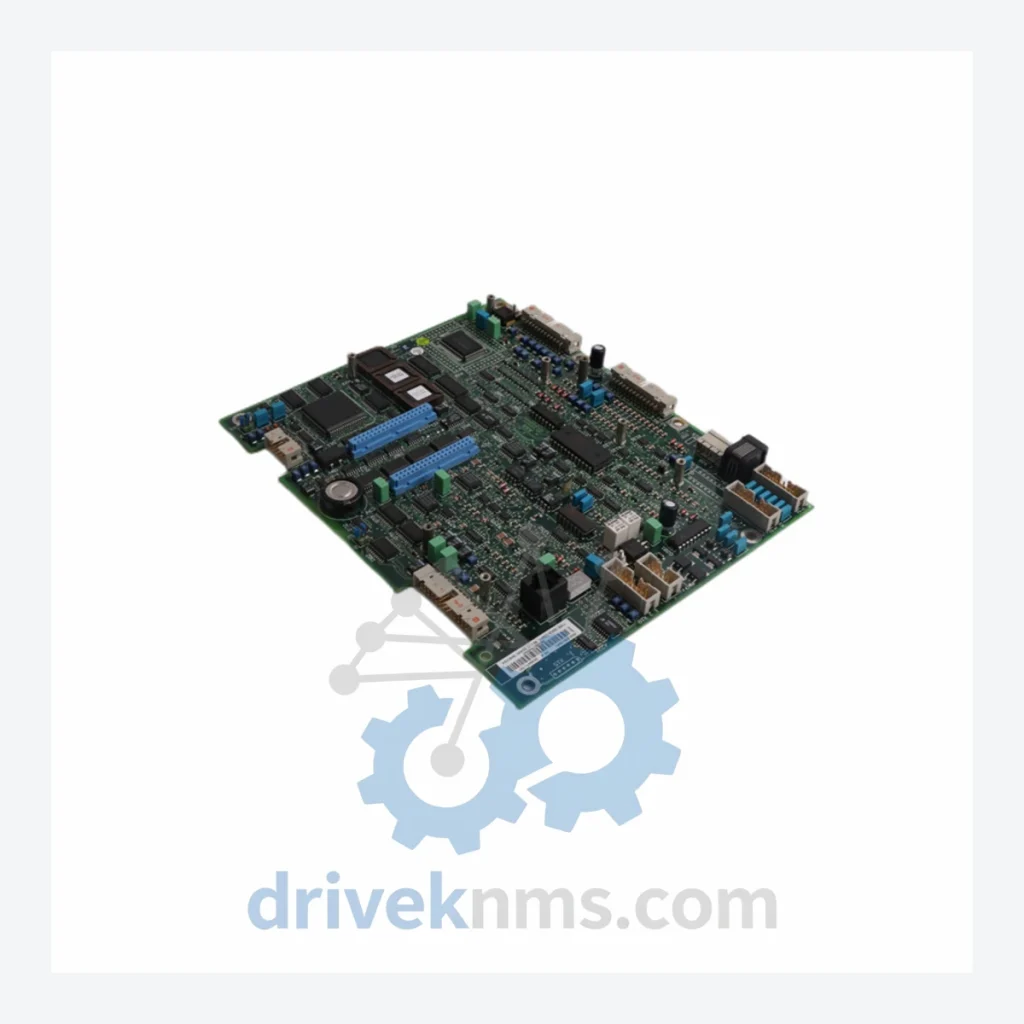

ABB SDCS-CON-1 3BSE006196R1 Control Board – Obsolete DCS Series Spare Part

When the SDCS-CON-1 control board fails, the consequences extend far beyond a single drive. This module is the intelligence core of ABB's SDCS-series DC drive systems — a platform that has been embedded in paper mills, steel rolling lines, mining hoists, and heavy process industries for decades. A single unplanned shutdown on a production line dependent on this drive can cost tens of thousands of dollars per hour. A forced system-wide upgrade — driven solely by the unavailability of one control board — routinely runs into the millions when engineering, rewiring, retraining, and lost production are factored in.

DriveKNMS maintains verified physical stock of the SDCS-CON-1 3BSE006196R1. This is not a catalog listing. If it is listed, it is on the shelf.

Technical Specifications

Solving the Discontinued Hardware Crisis

The SDCS-CON-1 was the central control module in ABB's SDCS-series DC drives — a product line that powered critical variable-speed DC motor applications across heavy industry for over two decades. ABB has formally discontinued this series, and OEM supply channels are closed.

The operational reality for plant managers is this: the DC motors these drives control are themselves long-life assets. A well-maintained DC motor in a steel mill or a paper machine can run reliably for 30 to 50 years. The drive electronics, however, have a shorter service life — and when the control board fails, the motor becomes inoperable. The choice facing maintenance teams is binary: source the obsolete board, or commit to a full drive replacement project.

A full drive replacement on a large DC application is not a weekend job. It involves motor shaft coupling changes, armature and field wiring modifications, PLC program rewrites, and in many cases, civil works to accommodate new cabinet dimensions. Engineering costs alone frequently exceed $150,000 USD before a single production hour is recovered. For facilities running multiple SDCS-series drives, the exposure is multiplied.

The strategic alternative — sourcing verified spare SDCS-CON-1 boards and holding them as insurance stock — extends the operational life of the entire drive system by 5 to 10 years at a fraction of the replacement cost. This is not a temporary fix. It is a documented asset protection strategy used by maintenance engineers in industries where unplanned downtime is measured in production tons, not minutes.

Condition & Reliability Assurance

Obsolete control boards sourced from secondary markets carry real risk. DriveKNMS applies a structured 5-step inspection protocol before any SDCS-CON-1 unit is offered for sale:

Step 1 – Electrolytic Capacitor Assessment: Capacitors are the primary failure point in aged power electronics. Each board is inspected for bulging, leakage, and ESR deviation. Boards with degraded capacitors are either recapped with equivalent-spec components or rejected.

Step 2 – Firmware Version Verification: The SDCS-CON-1 has multiple firmware revisions. Compatibility with specific drive configurations depends on firmware version. We verify and document the firmware revision on each unit prior to dispatch.

Step 3 – Pin and Connector Inspection: Corrosion on edge connectors and I/O pins is a common failure mode in boards that have been stored or removed from humid environments. All connectors are inspected under magnification and cleaned where required.

Step 4 – Functional Bench Test: Where test equipment permits, boards are powered and tested for basic signal integrity and communication response.

Step 5 – Packaging for Long-Term Storage: Units are packed in anti-static bags with desiccant and sealed for transit and storage integrity.

Key Features for System Maintenance

The SDCS-CON-1 3BSE006196R1 is a direct drop-in replacement for the original module. No drive cabinet modifications are required. No PLC reprogramming is needed. The board slots into the existing SDCS drive chassis using the original mounting hardware and connector interface.

This matters operationally. A maintenance team can execute a board swap during a planned shutdown window — typically 2 to 4 hours — and return the drive to service without involving a systems integrator or drive commissioning engineer. The avoidance of engineering mobilization costs alone justifies holding at least one spare board per critical drive.

For facilities with multiple SDCS-series drives, a structured spare parts holding strategy — typically one SDCS-CON-1 per three to five drives — provides meaningful protection against unplanned downtime without excessive capital commitment.

FAQ

What warranty applies to an obsolete part like the SDCS-CON-1?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the obsolete status of this part, we recommend customers test the board in a controlled environment before installation in a live system.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for ABB markings, PCB revision codes, and component authenticity. We do not source from unverified brokers. Provenance documentation is available on request for units where traceability records exist.

Should I buy more than one unit?
For any facility running more than two SDCS-series drives, holding a minimum of one spare SDCS-CON-1 is a defensible maintenance decision. The cost of a second board is negligible relative to the cost of a single unplanned shutdown. For critical single-drive applications — hoists, winders, or process-critical pumps — one dedicated spare is the minimum prudent position.

Can this board be used with the DCS400 and DCS600 series?
The SDCS-CON-1 is primarily associated with the DCS500 and DCS600 drive platforms. Compatibility with specific drive variants depends on firmware revision and hardware configuration. Contact us with your full drive nameplate data before ordering if you are unsure.
