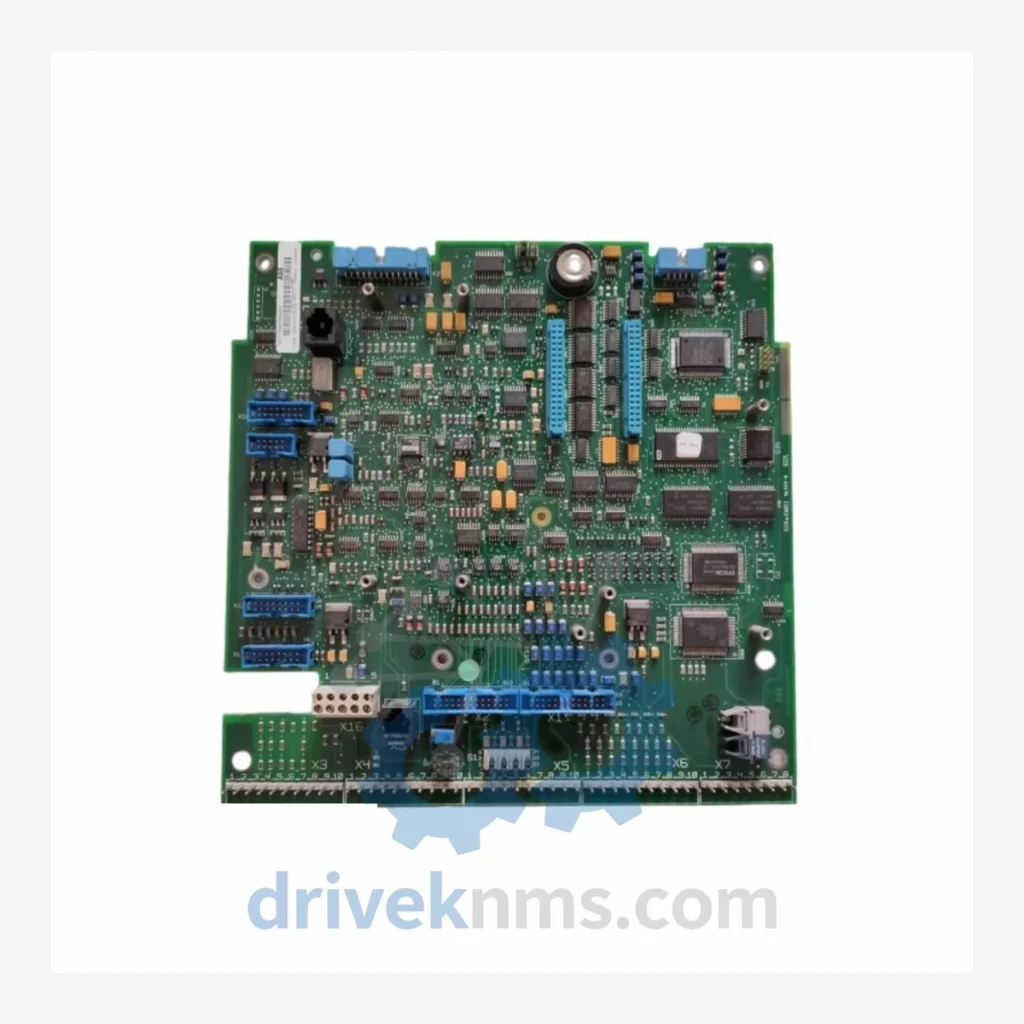

ABB SDCS-CON-2B 3ADT309600R0012 Control Board – Obsolete DCS500 Series Spare Part

When the SDCS-CON-2B control board fails in a running DCS500 DC drive system, the consequences extend far beyond a single component. The DCS500 series has been officially discontinued by ABB, and the SDCS-CON-2B is no longer manufactured. For plant managers operating legacy DC drive infrastructure, a single failed control board can halt an entire production line — triggering unplanned downtime that costs tens of thousands of dollars per hour in lost output. The alternative — a full system migration to a modern AC drive platform — routinely demands capital expenditure in the range of hundreds of thousands to millions of dollars, including engineering redesign, motor replacement, cable rerouting, and operator retraining.

DriveKNMS maintains verified physical stock of the SDCS-CON-2B (Part No. 3ADT309600R0012). This is not a catalog listing. This is a real unit, inspected and ready to ship.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB DCS500 series was the backbone of DC drive automation across steel mills, paper machines, cranes, extruders, and winding systems throughout the 1990s and 2000s. The SDCS-CON-2B serves as the central control intelligence of these drives — managing firing angle control, current regulation, speed feedback processing, and serial communication with supervisory systems.

There is no direct plug-in replacement from ABB's current portfolio. Migrating to an ACS880 or equivalent AC platform requires motor assessment, encoder replacement, and full parameter re-commissioning — a project that typically takes 3 to 6 months and carries significant production risk during transition. For facilities where the DC motor itself is in good condition and the mechanical drivetrain is sound, replacing the SDCS-CON-2B is the only rational path to restoring operation without triggering a capital project.

Plants that have adopted a strategic spare parts holding policy for the SDCS-CON-2B report the ability to extend their DCS500 asset life by 5 to 10 years beyond the original end-of-support date. The logic is straightforward: the motor, transformer, and thyristor stack in a DCS500 system have operational lifespans that far exceed the control electronics. Protecting the control board supply chain is the single highest-leverage action a maintenance manager can take to defer a multi-million dollar drive replacement program.

Condition & Reliability Assurance

Every SDCS-CON-2B unit processed by DriveKNMS undergoes a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: All electrolytic capacitors are inspected for bulging, leakage, and ESR degradation. Aged capacitors are the primary failure mode in stored control boards and are replaced where necessary.
• Step 2 – Firmware Version Verification: The onboard firmware version is documented and cross-referenced against known compatibility requirements for the target drive frame size and software revision.
• Step 3 – Pin and Connector Inspection: All edge connectors, ribbon cable interfaces, and terminal pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned to IPC standards.
• Step 4 – PCB Visual and Solder Inspection: The board is inspected for cracked solder joints, damaged traces, burn marks, and component displacement — common results of thermal cycling in industrial environments.
• Step 5 – Functional Bench Test (where applicable): Units are bench-tested against known-good reference configurations where test equipment is available. Test results are documented and available upon request.

Key Features for System Maintenance

• Drop-in Replacement: The SDCS-CON-2B installs directly into the existing DCS500 drive chassis using the original mounting hardware and connectors. No mechanical modification is required.
• No Reprogramming Required: Drive parameters are stored in the SDCS-IOE or external memory units, not on the control board itself. In most configurations, parameter sets are retained after board swap, eliminating the need for a controls engineer to re-enter drive settings.
• Avoids Engineering Redesign Costs: Retaining the existing DCS500 platform avoids the cost of motor compatibility studies, cable sizing recalculations, and PLC interface rewiring that a platform migration would require.
• Immediate Availability: Unlike new-build lead times that can stretch 16 to 52 weeks for legacy-compatible alternatives, DriveKNMS ships from verified physical stock.

FAQ

Q: What warranty applies to a discontinued part like the SDCS-CON-2B?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty terms are available for volume orders — contact us to discuss.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through documented industrial channels. ABB part markings, board revision codes, and serial number formats are verified against known authentic references. We do not source from unverified secondary markets.

Q: Should I hold more than one unit as a long-term spare?
A: For any facility operating more than two DCS500 drives, holding a minimum of two SDCS-CON-2B boards is a defensible maintenance strategy. As global stock of this part continues to deplete, acquisition cost will increase and availability will narrow. Procurement now, at current pricing, is a straightforward asset protection decision.

Q: Can you source other SDCS series boards?
A: Yes. DriveKNMS specializes in the full SDCS board family including SDCS-POW, SDCS-IOE, SDCS-FEX, and related ABB DCS500 spare parts. Contact us with your full part number.
