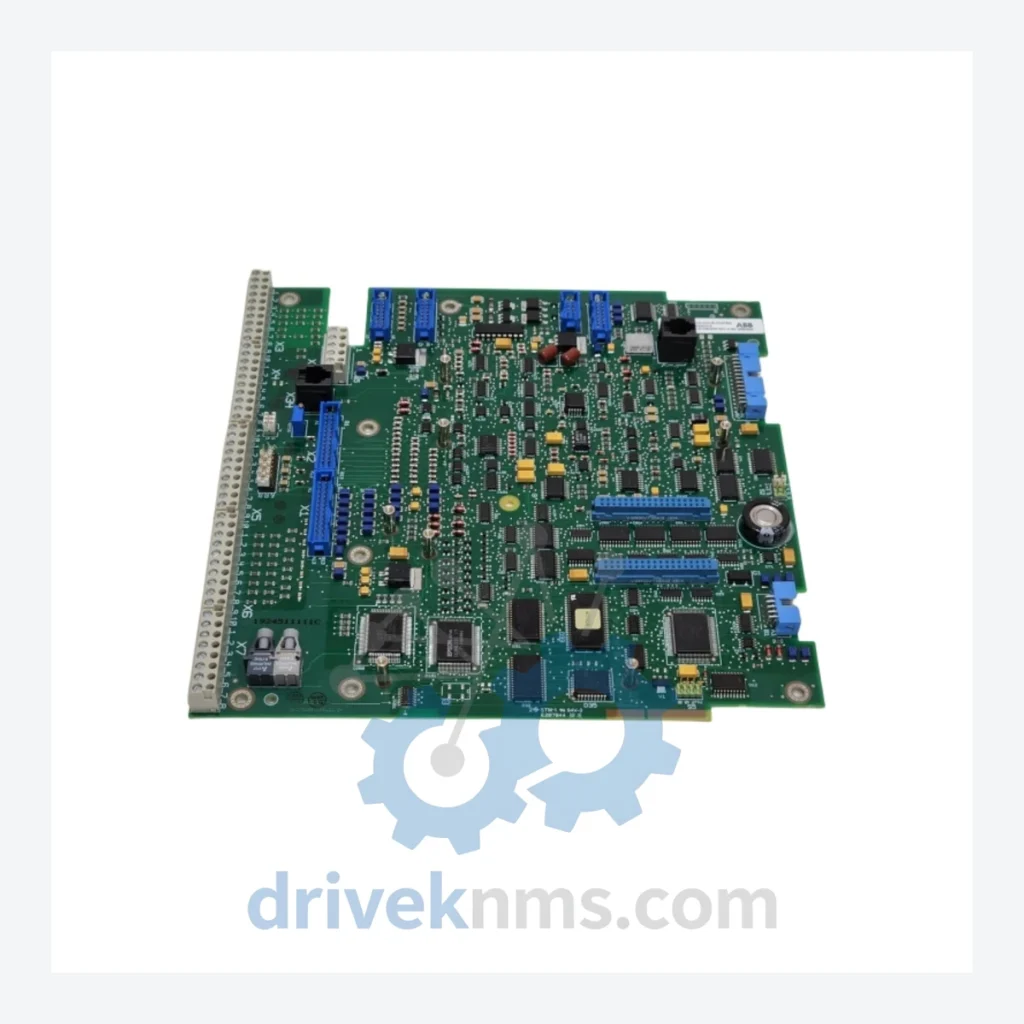

ABB SDCS-CON-2B 3ADT309600R1012 Control Board – Obsolete DCS 500 Spare Part

When the SDCS-CON-2B control board fails in a production environment, the consequences extend far beyond a single component replacement. The ABB DCS 500 DC drive platform — now discontinued — is deeply embedded in steel mills, paper machines, mining hoists, and heavy-process lines worldwide. A single failed control board can halt an entire production line. Replacing the drive system outright means not just the hardware cost, but engineering redesign, motor rewiring, PLC reprogramming, commissioning downtime, and operator retraining — a project that routinely exceeds USD $500,000 on complex installations. DriveKNMS holds verified stock of the SDCS-CON-2B (Part No. 3ADT309600R1012). This is not a commodity item. Sourcing it through the open market carries significant risk of counterfeit or degraded units. Our inventory is traceable, inspected, and ready to ship.

Technical Specifications

Note: Electrical parameters such as voltage ratings and communication protocol versions vary by drive frame size and firmware revision. Confirmed specifications are provided upon request based on your drive nameplate data.

Solving the Discontinued Hardware Crisis

The ABB DCS 500 platform was the industry standard for high-power DC drive control through the 1990s and 2000s. Its SDCS-CON-2B control board manages the core functions of the drive: speed reference processing, current loop regulation, field excitation control, and fieldbus communication (Profibus, Modbus, or DeviceNet depending on configuration). There is no direct plug-in equivalent from ABB's current product line. The successor ACS series uses fundamentally different architecture — migrating to it requires replacing not just the drive, but often the motor field wiring, encoder interfaces, and the supervisory control logic that interfaces with the DCS or PLC layer above it.

For plant managers operating aging but structurally sound DC motor systems, the calculus is straightforward: a verified SDCS-CON-2B spare costs a fraction of a percent of what a full drive migration project costs. Facilities that have maintained a strategic stock of critical SDCS boards have extended their DCS 500 installations by 8–12 years beyond the official end-of-support date — without a single unplanned capital project.

The risk is not the board itself. The risk is not having one when it fails at 2 AM on a Sunday before a Monday production commitment.

How to Extend Your Automation Asset Life by 5–10 Years: A Maintenance Strategy for DCS 500 Installations

Factory management teams facing pressure to retire legacy DC drive systems often underestimate the true cost of migration versus the cost of structured maintenance. The following approach has been validated across multiple industrial sites that have successfully deferred system replacement by a decade or more:

1. Conduct a Critical Spares Audit. Map every SDCS board variant in your installation — CON-2B, POW-1, FEX-2, and any option boards. Identify which are single points of failure with no installed spare. These are your highest-priority procurement targets.

2. Establish a Minimum Stock Level. For a plant running 10 or more DCS 500 drives, holding a minimum of two SDCS-CON-2B boards is a defensible maintenance budget line. The cost of one board is recovered in the first hour of avoided downtime.

3. Implement Preventive Board Inspection. On a 2-year cycle, pull and bench-test control boards from non-critical drives. Check for electrolytic capacitor bulging, relay contact wear, and corrosion on edge connectors. Replace proactively rather than reactively.

4. Document Firmware Versions. The SDCS-CON-2B runs embedded firmware that controls drive behavior. Record the firmware version on every installed board. When sourcing replacements, match firmware versions to avoid parameter incompatibilities that require re-commissioning.

5. Negotiate Long-Term Supply Agreements. Obsolete part availability is not linear — it decreases sharply as installed base shrinks and remaining stock is consumed. Locking in supply now, even at modest quantities, protects against price escalation and zero-availability scenarios 3–5 years from now.

This is not a theoretical framework. It is the operational reality for any facility that has chosen asset preservation over premature capital expenditure.

Condition & Reliability Assurance

Sourcing obsolete control boards from unverified channels is a documented cause of repeat failures and, in some cases, drive damage. DriveKNMS applies a 5-step inspection protocol to every SDCS-CON-2B unit before it leaves our facility:

Step 1 – Electrolytic Capacitor Assessment: All electrolytic capacitors are visually inspected for bulging, leakage, and date code aging. Units with capacitors beyond service life are either recapped with equivalent-spec components or rejected.

Step 2 – Firmware Version Verification: The installed firmware version is read and documented. This is provided to the customer at time of shipment to confirm compatibility with the target drive.

Step 3 – Pin and Connector Inspection: All edge connectors, terminal blocks, and inter-board connectors are inspected under magnification for corrosion, bent pins, and cold solder joints. Affected contacts are cleaned or re-soldered as required.

Step 4 – Functional Bench Test: Where test fixtures are available, boards are powered and tested for correct signal outputs and communication response prior to shipment.

Step 5 – Packaging and ESD Protection: Units are shipped in anti-static packaging with desiccant. Long-term storage units are vacuum-sealed.

Key Features for System Maintenance

The SDCS-CON-2B is a direct drop-in replacement for the same board designation within the DCS 500 platform. No drive reprogramming is required beyond restoring the parameter set from your existing drive backup — a procedure that takes minutes, not days. This means:

• No motor rewiring or field circuit modifications
• No PLC or DCS interface changes
• No recommissioning of speed or current loops from scratch (parameters are restored from backup)
• No engineering contractor fees for system redesign
• Production resumption measured in hours, not weeks

For maintenance teams operating under tight downtime windows, this is the only viable path that does not involve a capital project approval cycle.

FAQ

Q: What warranty is provided on obsolete parts?
A: DriveKNMS provides a 12-month warranty on all inspected and tested units. New Old Stock units carry a 6-month warranty. Warranty terms are confirmed in writing at time of order.

Q: How do I confirm this is a genuine ABB board and not a counterfeit?
A: All units are sourced through traceable industrial channels. We provide the board's serial number, date code, and firmware version prior to shipment. Customers are encouraged to verify these against ABB's documentation for the DCS 500 platform.

Q: Should I buy more than one unit?
A: For any installation with more than three DCS 500 drives, holding at least two SDCS-CON-2B boards is a sound maintenance position. Availability of this part will not improve over time. Current stock levels at DriveKNMS are limited — contact us for volume pricing.

Q: Can you supply other SDCS series boards?
A: Yes. DriveKNMS maintains stock of multiple SDCS board variants including SDCS-POW-1, SDCS-FEX-2, and associated option boards. Contact us with your full drive nameplate data for a complete spare parts assessment.
