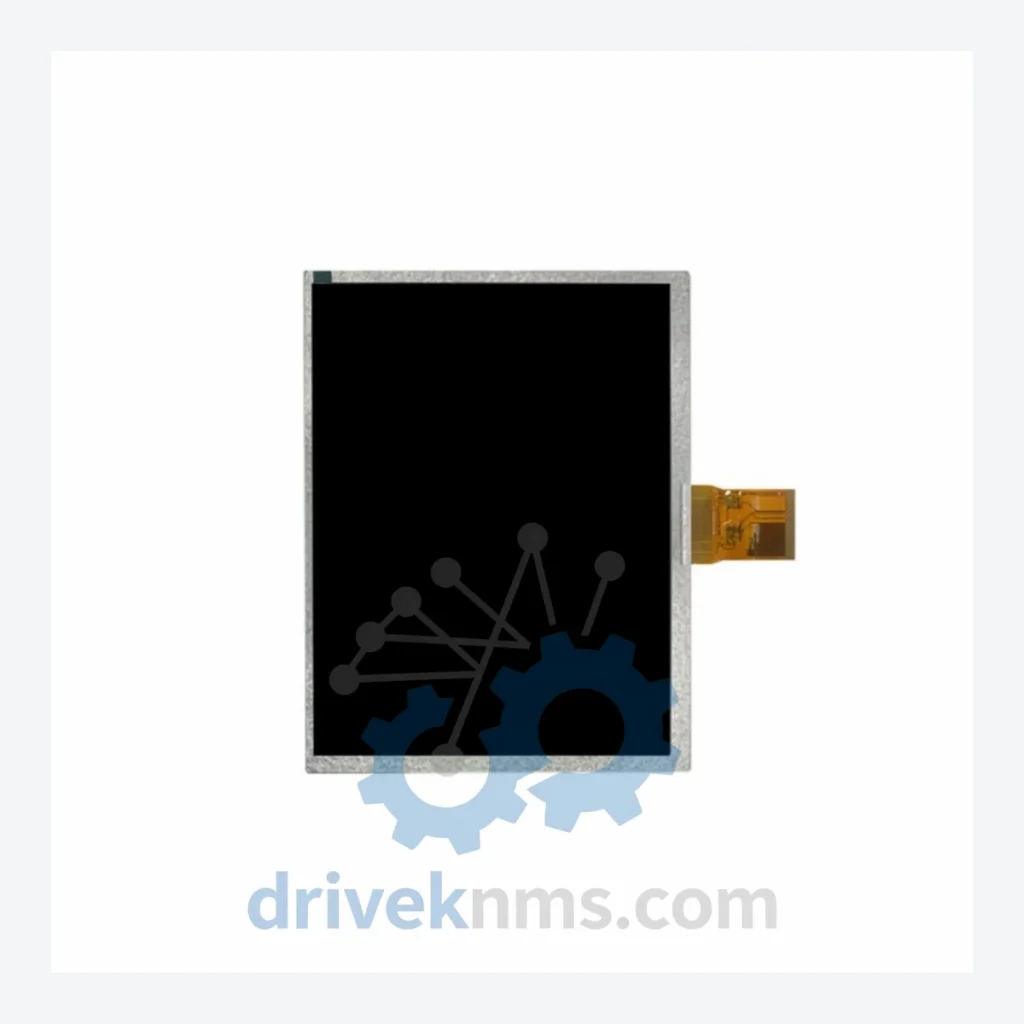

ABB TCG057VGLBA-G00 TFT Display Module – Obsolete Panel Series Spare Part

When the display module on a legacy ABB operator panel fails, the consequences extend far beyond a blank screen. For plants running ABB CP400, CP600, or compatible HMI panel families, a single failed TCG057VGLBA-G00 can halt production lines, trigger unplanned downtime, and force engineering teams into emergency procurement cycles that stretch weeks. The cost of a full panel replacement — including new hardware, re-engineering, re-commissioning, and operator retraining — routinely runs into six figures. Against that backdrop, a verified replacement display module is not a commodity purchase. It is a capital protection decision.

DriveKNMS maintains verified stock of the ABB TCG057VGLBA-G00 for industrial facilities that cannot afford to wait for standard lead times on a part that is no longer in active production.

Technical Specifications

Note: Electrical parameters such as backlight voltage, resolution, and interface type are confirmed during pre-shipment inspection. Specifications are not published here to prevent misapplication across hardware revisions. Contact us for revision-specific datasheet confirmation before ordering.

Solving the Discontinued Hardware Crisis

The ABB TCG057VGLBA-G00 is embedded in operator panels that were installed during the 1990s and 2000s across process industries including chemical, pharmaceutical, pulp and paper, and utilities. These panels are deeply integrated into plant control architectures — often communicating directly with ABB Freelance, ABB 800xA, or older ABB Advant OCS systems via proprietary fieldbus connections.

Replacing the panel itself is not a straightforward hardware swap. It requires re-mapping I/O, rewriting or migrating HMI application logic, updating network configurations, and in many cases, engaging ABB system integrators for validation. A conservative estimate for a full panel migration in a regulated environment is 3–6 months of engineering time and $150,000–$400,000 USD in total project cost, excluding production losses during transition.

The TCG057VGLBA-G00 display module is the single most failure-prone component in these panels. Backlight degradation, pixel burn-in, and connector fatigue are the primary failure modes after 15–20 years of continuous operation. Replacing the display module — rather than the entire panel — restores full operator functionality at a fraction of the cost and with zero changes to the underlying control system.

How to extend your automation asset life by 5–10 years through targeted spare part strategy:

• Identify the failure hierarchy. On legacy HMI panels, display modules and backlight inverters fail before logic boards. Stocking one or two display modules per panel family eliminates the most common failure path entirely.
• Decouple display replacement from system migration. A display swap is a maintenance event, not an engineering project. It does not require change management, validation protocols, or production shutdowns beyond the replacement window itself.
• Establish a minimum viable spare parts buffer. For facilities with 5 or more ABB CP-series panels, holding 2–3 TCG057VGLBA-G00 units on-site reduces mean time to repair (MTTR) from weeks to hours. The carrying cost of three display modules is negligible against the cost of a single unplanned outage.
• Negotiate a phased migration timeline. With display spares secured, plant management gains the leverage to schedule system upgrades on their own terms — during planned shutdowns, aligned with capital budget cycles — rather than under emergency conditions.
• Document hardware revisions before procurement. The TCG057VGLBA-G00 has multiple hardware revisions. Confirming the revision installed in your panels before ordering prevents compatibility issues. DriveKNMS provides pre-shipment revision verification as standard.

Condition & Reliability Assurance

Every TCG057VGLBA-G00 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

1. Electrolytic capacitor aging assessment. Capacitors on the backlight inverter board are the primary aging component. Each unit is inspected for bulging, leakage, and ESR deviation. Units with degraded capacitors are recapped with equivalent-spec components before release.
2. Firmware and controller version verification. Where applicable, the display controller firmware version is confirmed against the target panel family to prevent initialization failures.
3. Pin and connector corrosion inspection. All interface connectors are inspected under magnification for oxidation, pin deformation, and contact resistance. Corroded contacts are cleaned or the connector assembly is replaced.
4. Backlight functional test. The backlight is powered and run for a minimum burn-in period to confirm stable illumination and rule out intermittent inverter faults.
5. Visual and pixel integrity check. The display is driven with test patterns to identify dead pixels, column/row failures, and contrast uniformity issues. Units with defects outside acceptable tolerance are rejected.

Key Features for System Maintenance

• Drop-in replacement. The TCG057VGLBA-G00 is a direct physical and electrical replacement for the original display in compatible ABB panels. No mechanical modification is required.
• No reprogramming required. The display module does not store application logic. Swapping the display does not affect PLC programs, HMI configurations, or network settings. The panel resumes normal operation immediately after replacement.
• Avoids engineering reconstruction costs. Unlike a full panel replacement, a display module swap does not trigger change management workflows, validation requirements, or system re-commissioning. Maintenance staff can perform the replacement without specialist contractor involvement in most cases.
• Preserves existing operator familiarity. Operators continue working with the same interface layout, alarm structures, and navigation logic. There is no retraining requirement.

FAQ

Q: What warranty applies to an obsolete spare part like the TCG057VGLBA-G00?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on confirmed New Old Stock units. Warranty covers failure under normal operating conditions and excludes physical damage after installation.

Q: How do I confirm the unit is new or professionally refurbished — not a used pull?
A: Each unit is accompanied by an inspection report documenting the condition assessment steps completed. New Old Stock units are supplied in original or equivalent protective packaging. Refurbished units include a recap and test certificate. We do not ship untested pulls.

Q: Should I buy more than one unit as a long-term reserve?
A: For facilities with multiple ABB CP-series panels of the same generation, holding 2–3 units is a defensible maintenance strategy. Display modules of this type are not being remanufactured. Once existing global stock is exhausted, procurement becomes a salvage exercise. The cost of holding spare units is a small fraction of the cost of a single unplanned outage or an accelerated panel migration.

Q: Can DriveKNMS source specific hardware revisions?
A: We maintain records of revision variants in our inventory. Provide your panel serial number or existing display revision marking and we will confirm compatibility before invoicing.
