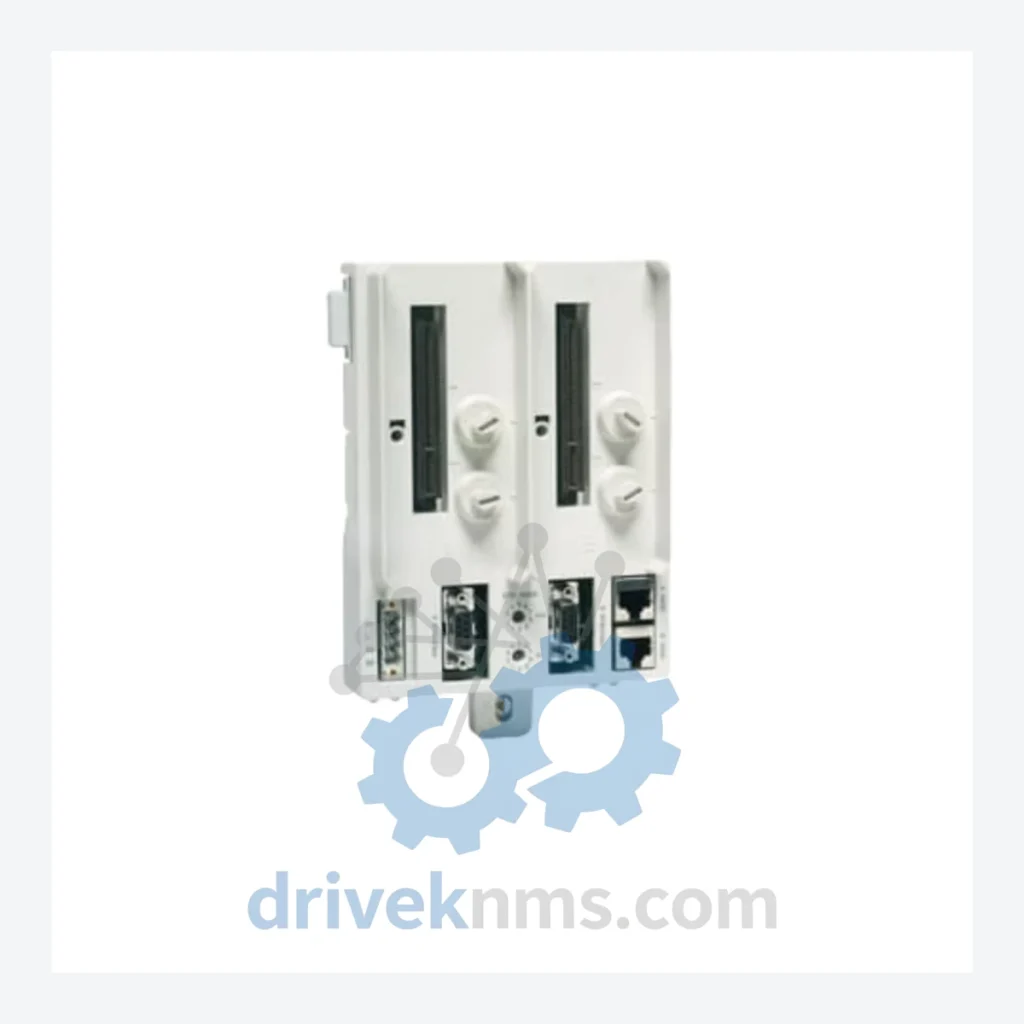

ABB TU847 Power Supply Connector – Obsolete Advant OCS Spare Part

When a power supply connector fails inside an ABB Advant OCS control system, the consequences extend far beyond a single module replacement. The TU847 sits at the intersection of field wiring and the system's power distribution backbone. Its failure can bring an entire process segment offline. For plant managers operating legacy automation infrastructure, the arithmetic is unforgiving: a forced migration to a modern DCS platform carries engineering, commissioning, and revalidation costs that routinely exceed seven figures. Against that backdrop, a verified spare TU847 is not a line item — it is an insurance policy on your existing capital investment.

DriveKNMS maintains a carefully managed inventory of hard-to-find ABB components. The TU847 units we hold have been sourced through controlled channels and subjected to our in-house QA protocol before any offer is made to a customer.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not listed here are confirmed against original ABB documentation on a per-order basis. No parameters are published speculatively.

Solving the Discontinued Hardware Crisis

The ABB Advant OCS platform was a dominant force in process automation throughout the 1990s and into the 2000s. Refineries, chemical plants, pulp and paper mills, and power generation facilities built their control architectures around it. ABB has since discontinued the hardware line, and OEM support has effectively ended.

The TU847 termination unit is not a peripheral accessory. It provides the structured interface between field power wiring and the module rack. Without a functioning TU847, the associated I/O or power supply module cannot operate. There is no modern drop-in substitute from ABB's current catalog — the physical form factor, connector pitch, and backplane interface are specific to the Advant generation.

Facilities that have attempted to bypass this constraint through improvised wiring modifications have encountered signal integrity problems and, in some cases, safety incidents during commissioning. The correct path is a verified original-specification replacement.

For plant managers facing pressure to retire aging Advant OCS systems, the business case for maintaining a spare parts buffer is straightforward. A single TU847 unit, properly stored, can extend the operational life of an associated control loop by five to ten years. That deferral window allows capital expenditure planning to proceed on the plant's schedule rather than being dictated by an unplanned hardware failure.

Condition & Reliability Assurance

Every TU847 unit that leaves our facility has passed a five-stage inspection process developed specifically for legacy industrial components:

• Stage 1 – Visual and Mechanical Inspection: Connector pins are examined for corrosion, deformation, and contamination. Housing integrity is verified. Any unit with physical compromise is rejected at this stage.
• Stage 2 – Electrolytic Capacitor Assessment: Where applicable, electrolytic capacitors are tested for capacitance drift and ESR degradation — the primary failure mode in components that have been in storage or light service for extended periods.
• Stage 3 – Firmware and Labeling Verification: Part number markings, revision codes, and any embedded firmware identifiers are cross-referenced against ABB's original documentation to confirm authenticity and revision compatibility.
• Stage 4 – Pin and Contact Resistance Test: Contact resistance across all connector positions is measured. Values outside the original specification range result in rejection or targeted remediation.
• Stage 5 – Final Functional Verification: Where test fixtures permit, the unit undergoes a powered functional check simulating its operational role within the Advant OCS architecture.

Key Features for System Maintenance

• Drop-in replacement: The TU847 installs directly into the existing rack position. No mechanical modification to the cabinet or backplane is required.
• No reprogramming required: The termination unit carries no configurable firmware. Replacement does not trigger a revalidation cycle for the associated controller or I/O modules.
• Avoids engineering reconstruction costs: Substituting a non-original connector type would require custom wiring harnesses, updated as-built drawings, and potentially a full HAZOP review in regulated industries. A verified TU847 eliminates all of that overhead.
• Preserves system validation status: In pharmaceutical and food processing environments operating under GMP or FDA 21 CFR Part 11 frameworks, a like-for-like replacement with an original-specification part carries significantly lower revalidation burden than a design change.

Long-Term Asset Protection: Extending Automation System Life by 5–10 Years

A structured spare parts strategy for an Advant OCS installation should address three categories of components: power supply and termination units (including the TU847), communication interface modules, and processor modules. Holding one verified spare in each category, stored under appropriate environmental conditions, provides a credible five-to-ten-year operational extension at a fraction of the migration cost.

DriveKNMS can assist with a broader spare parts audit for Advant OCS and MasterPiece installations. Contact us to discuss your system's specific configuration and critical single points of failure.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through documented supply channels. Part markings, revision codes, and physical construction are verified against original ABB documentation during our Stage 3 inspection. We do not source from unverified brokers or auction platforms.

Q: Can you source other ABB Advant OCS components?
A: Yes. Contact us with your full bill of materials or specific part numbers and we will advise on availability.
