ABB UNITROL 1000 Modules

Technical Dossier

Product Details And Specifications

ABB UNITROL 1000 Series: Comprehensive Module Range and Technical Overview

The ABB UNITROL 1000 is a digital automatic voltage regulator (AVR) and excitation control system engineered for synchronous generators in heavy industrial environments. Deployed across chemical processing plants, nuclear power stations, oil refineries, hydroelectric facilities, and large-scale thermal power generation units, the UNITROL 1000 platform represents one of ABB's most widely installed excitation control architectures globally. Its modular hardware design enables field-level replacement of individual boards and sub-assemblies without full system shutdown, a critical requirement in continuous-process industries where unplanned outages carry significant financial and safety consequences.

The platform supports both brushless and static excitation systems, with hardware variants covering generator ratings from small industrial units to large utility-scale machines. The UNITROL 1000 communicates via standard industrial protocols including PROFIBUS-DP and Modbus RTU, and integrates with ABB's broader DCS and SCADA infrastructure.

The Evolution of UNITROL 1000 Architecture

ABB's UNITROL excitation control lineage extends from the analog-era UNITROL D and UNITROL F platforms introduced in the 1980s, through the transitional UNITROL 5000 digital platform of the 1990s, to the fully digital UNITROL 1000 series that entered service in the early 2000s. The UNITROL 1000 introduced a modular VME-bus-derived backplane architecture, separating the AVR processing unit, I/O interface boards, power supply boards, and communication adapters into independently replaceable modules.

Key architectural milestones include the introduction of dual-channel redundancy configurations (UNITROL 1000-R), the expansion of the communication module range to support IEC 61850 in later firmware revisions, and the integration of power system stabilizer (PSS) functionality directly into the main controller firmware. Compatibility between hardware generations is constrained: UNITROL 5000 I/O boards are not electrically or mechanically interchangeable with UNITROL 1000 slots. When migrating from UNITROL 5000 to UNITROL 1000, full backplane and wiring harness replacement is required.

As of 2026, the UNITROL 1000 series is in its mature/end-of-active-production phase. ABB has transitioned new project specifications toward the UNITROL 6800 platform. However, the installed base of UNITROL 1000 systems in operational power plants worldwide remains substantial, and spare parts demand for maintenance and life extension programs continues at high volume. DriveKNMS maintains dedicated stock of UNITROL 1000 modules to support long-term asset management programs.

UNITROL 1000 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the ABB UNITROL 1000 excitation control system. Modules are classified by functional category.

Power Supply & Regulation Boards

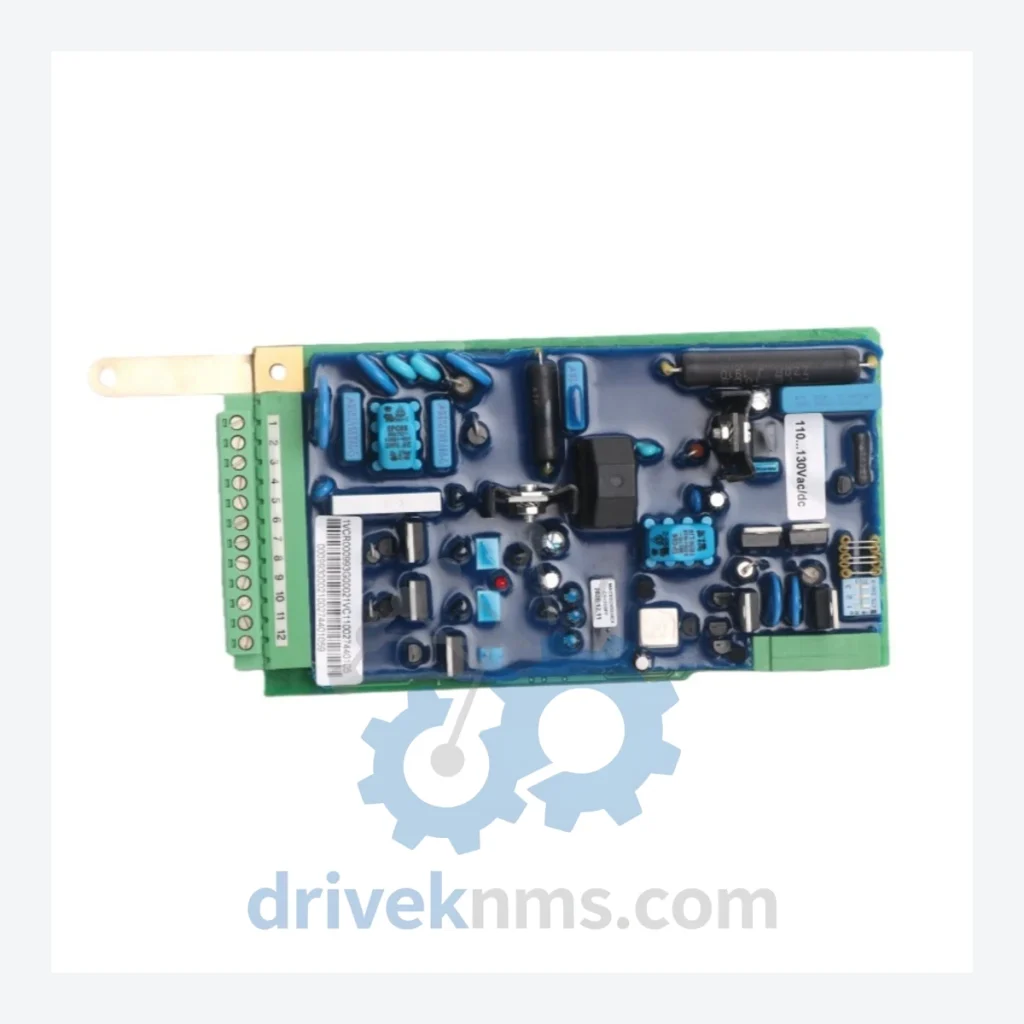

1VCR000993G00051: Main power supply board; provides regulated DC rails to AVR backplane modules.
1VCR000993G00052: Redundant power supply board; hot-standby configuration for high-availability systems.
1VCR000993G00053: Auxiliary power supply board; feeds field flashing and excitation transformer interface circuits.
1VCR000993G00054: Low-voltage power distribution board; internal 5V/15V/24V rail distribution for logic modules.

AVR Controller & CPU Modules

1VCR000991G00011: Main AVR controller board; dual-channel DSP-based voltage regulation and PSS processing.
1VCR000991G00012: Backup AVR controller board; automatic bumpless transfer on primary channel fault.
1VCR000991G00013: Extended memory AVR controller; supports advanced PSS and load limiter algorithms.
1VCR000992G00021: Signal processing board; analog input conditioning for PT/CT measurement channels.

Digital I/O Modules

1VCR000994G00061: Digital input board; 32-channel 24VDC isolated DI for protection relay and breaker status inputs.
1VCR000994G00062: Digital output board; 16-channel relay output for field breaker control and alarm annunciation.
1VCR000994G00063: Combined DI/DO board; 16DI + 8DO mixed I/O for compact panel configurations.

Analog I/O Modules

1VCR000995G00071: Analog input board; 8-channel 16-bit ADC for voltage, current, and power measurement.
1VCR000995G00072: Analog output board; 4-channel 12-bit DAC for setpoint transmission to external regulators.
1VCR000995G00073: High-accuracy measurement board; 0.1% class PT/CT input for utility-grade metering.

Communication & Interface Adapters

1VCR000996G00081: PROFIBUS-DP communication adapter; slave mode, up to 12 Mbit/s, DIN rail mount.
1VCR000996G00082: Modbus RTU/TCP gateway board; RS-485 and Ethernet dual-port interface.
1VCR000996G00083: IEC 61850 GOOSE communication module; substation automation integration.

Sourcing Hard-to-Find & Obsolete UNITROL 1000 Parts

ABB formally discontinued active production of the majority of UNITROL 1000 hardware modules as new project activity shifted to the UNITROL 6800 platform. For operators of existing UNITROL 1000 installations, this creates a procurement challenge: OEM channels no longer carry full stock, lead times for any remaining new-old-stock (NOS) units through authorized distributors can exceed 26 weeks, and the cost of full system replacement with UNITROL 6800 is prohibitive for plants with 5–15 years of remaining operational life.

DriveKNMS maintains a dedicated inventory of UNITROL 1000 spare modules sourced through verified industrial surplus channels, decommissioned plant asset recovery, and authorized secondary market suppliers. All units are catalogued by part number, hardware revision, and firmware version where applicable. For power supply boards such as the 1VCR000993G00051, DriveKNMS holds stock across multiple hardware revisions to ensure compatibility with both early and late production UNITROL 1000 backplane assemblies.

Customers operating under long-term service agreements (LTSA) or conducting planned outage maintenance programs are encouraged to submit multi-line spare parts lists for consolidated quotation. Emergency same-day quotation is available for critical plant situations.

Quality Control for the UNITROL 1000 Range

UNITROL 1000 modules present specific test challenges due to their mixed analog/digital architecture, backplane bus communication dependencies, and the precision requirements of the AVR measurement circuits. DriveKNMS applies the following test protocol to all UNITROL 1000 modules prior to shipment:

Power supply boards (including 1VCR000993G00051) are subjected to full-load DC output testing across all regulated rails, ripple and noise measurement per IEC 61000-4 class B limits, and thermal soak testing at 55°C for a minimum of 4 hours. Output voltage accuracy is verified against ABB factory specification tolerances of ±1%.

AVR controller and CPU boards are tested in a dedicated UNITROL 1000 backplane test rig with known-good companion modules. Firmware version is read and recorded. DSP self-test routines are executed and pass/fail results logged. Communication ports are verified for correct protocol response.

I/O modules are tested channel-by-channel using calibrated signal sources and loads. Digital input threshold voltages are verified. Relay output contact resistance is measured. Analog input linearity is checked at 0%, 25%, 50%, 75%, and 100% of rated input range.

All tested units are issued a DriveKNMS inspection certificate recording test date, technician ID, test results, and observed hardware revision. Units that do not pass all test criteria are quarantined and not offered for sale.
