ABB IRB 460 Spare Parts & Modules: 3HAC040502-001 RV 40E-81 Gearbox,

Technical Dossier

Product Details And Specifications

ABB IRB 460 Series: Comprehensive Module Range and Technical Overview

The ABB IRB 460 is a high-speed palletizing robot engineered for end-of-line packaging operations in heavy industrial environments including chemical plants, food processing facilities, refineries, and logistics distribution centers. With a payload capacity of 110 kg and a reach of 2.4 m, the IRB 460 is one of the most widely deployed palletizing platforms globally. Its compact footprint and high cycle speed (up to 2,190 cycles/hour) have made it a standard fixture in automated production lines across Europe, Asia, and North America. The installed base spans multiple generations of IRC5 and OmniCore controller platforms, creating sustained demand for genuine and compatible spare parts across the full lifecycle of the robot.

The Evolution of IRB 460 Architecture

The IRB 460 was introduced as a successor to the IRB 660 palletizing line, optimized specifically for floor-level palletizing with a lower center of gravity and reduced cycle time. The original platform was designed around the IRC5 single-cabinet controller and used a 4-axis kinematic structure (axes 1–4) with a fixed wrist configuration. Early production units (pre-2012) used first-generation RV gearboxes on axes 2 and 3, which have since been superseded by updated gear units with revised sealing and lubrication specifications.

From 2014 onward, ABB introduced revised mechanical arm designs with updated cable harness routing (3HAC044168-001 series) and new motor flange tolerances. The transition to OmniCore controllers (post-2020) introduced changes to the drive module interface but retained mechanical compatibility with the existing arm and gearbox assemblies. This means that a significant portion of the mechanical spare parts — including gearboxes, bearings, and wrist units — remain cross-compatible across production years, though firmware and drive parameters must be matched to the specific controller generation.

End-of-life designation for the original IRC5-paired IRB 460 mechanical platform was announced in 2022, with ABB committing to spare parts availability through 2030. This makes third-party sourcing of genuine and refurbished components critical for operators maintaining existing installations beyond the OEM support window.

IRB 460 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core spare parts and module range for the ABB IRB 460 robot. Each entry is classified by functional category.

Gearbox & Wrist Units

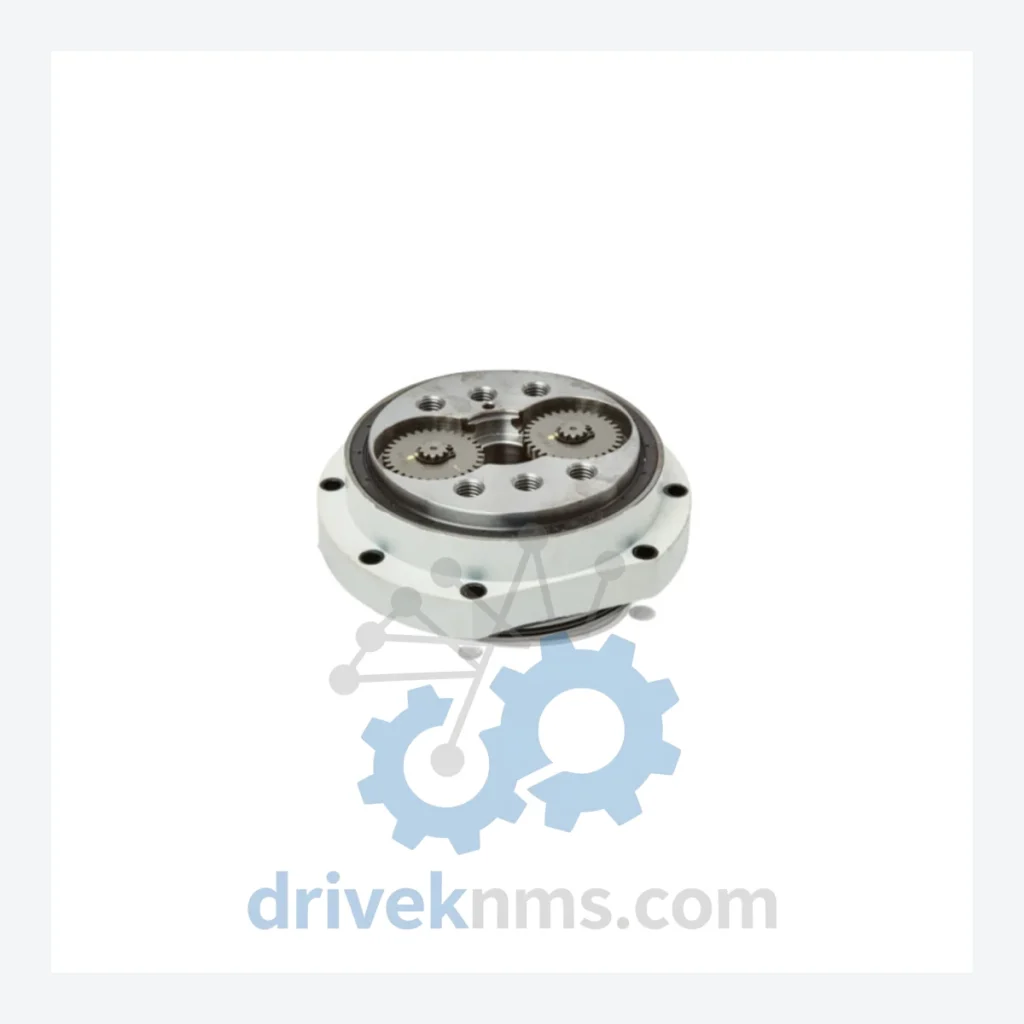

• 3HAC040502-001: RV 40E-81 wrist gearbox unit, axis 4, White RAL 9003 — primary wrist drive for IRB 460
• 3HAC040503-001: RV 80E-101 gearbox unit, axis 2 — main arm swing drive
• 3HAC040504-001: RV 80E-121 gearbox unit, axis 3 — forearm rotation drive
• 3HAC040505-001: RV 320C-185 gearbox unit, axis 1 — base rotation drive, high-torque
• 3HAC026253-001: Gearbox axis 1 complete assembly, IRB 460 standard reach

Motors & Servo Drives

• 3HAC031683-001: AC servo motor, axis 1, 7.5 kW, flange mount
• 3HAC031684-001: AC servo motor, axis 2, 4.5 kW, with resolver
• 3HAC031685-001: AC servo motor, axis 3, 2.2 kW, compact frame
• 3HAC031686-001: AC servo motor, axis 4, 1.1 kW, wrist drive
• 3HAC044168-001: Motor cable harness, axes 1–4, 7 m standard length

Controller & Drive Modules (IRC5 Compatible)

• 3HAC025338-001: Drive unit DSQC 661, IRC5 single-axis drive module
• 3HAC025466-001: Drive unit DSQC 662, IRC5 dual-axis drive module
• 3HAC026254-001: Computer unit DSQC 639, IRC5 main computer board
• 3HAC031670-001: I/O module DSQC 651, 24 VDC digital I/O, 16 DI / 16 DO
• 3HAC031671-001: I/O module DSQC 652, analog I/O, 4 AI / 4 AO
• 3HAC020454-001: Power supply unit DSQC 609, 24 VDC, 5 A, IRC5 cabinet

Mechanical & Structural Components

• 3HAC040506-001: Upper arm complete assembly, IRB 460 standard
• 3HAC040507-001: Lower arm complete assembly with pivot bearings
• 3HAC040508-001: Balancing spring unit, axis 2, pre-tensioned assembly
• 3HAC040509-001: Base casting assembly, IRB 460, floor mount configuration

Sourcing Hard-to-Find & Obsolete IRB 460 Parts

DriveKNMS maintains a dedicated inventory program for ABB IRB 460 components that have reached end-of-production status at the OEM level. As ABB has transitioned its palletizing portfolio toward the IRB 460F and OmniCore-based platforms, original IRC5-era drive modules (DSQC 639, DSQC 661, DSQC 662) and first-generation gearbox assemblies are no longer available through standard ABB distribution channels.

DriveKNMS sources these components through certified industrial surplus channels, decommissioned robot buyback programs, and direct manufacturer overstock. All units are catalogued by production date code and firmware revision to ensure compatibility with the customer's specific controller version. For operators running IRB 460 installations on IRC5 controllers manufactured before 2016, DriveKNMS can cross-reference the robot serial number against the applicable spare parts manual revision to confirm exact part compatibility before shipment.

Extended lifecycle support contracts are available for facilities requiring guaranteed parts availability through 2030 and beyond, covering both mechanical assemblies and electronic drive modules.

Quality Control for the IRB 460 Range

All ABB IRB 460 spare parts processed by DriveKNMS undergo a structured inspection and functional verification protocol before dispatch. Gearbox units (RV series) are inspected for backlash within OEM tolerance bands, oil seal integrity, and input/output shaft runout. Each unit is rotated under load on a dedicated test bench to verify smooth operation across the full speed range.

Electronic modules including DSQC drive units and I/O boards are tested under simulated IRC5 bus conditions using a dedicated controller test rig. Communication integrity across the PROFIBUS and DeviceNet backplane is verified for each module. Servo motors are tested for insulation resistance, resolver signal quality, and no-load current draw. All tested units are issued a DriveKNMS inspection certificate with test date, technician ID, and measured parameters, which accompanies the shipment documentation.

Units that do not meet OEM specification thresholds are quarantined and not offered for sale. Refurbished units are clearly identified as such in all quotations and invoices.
