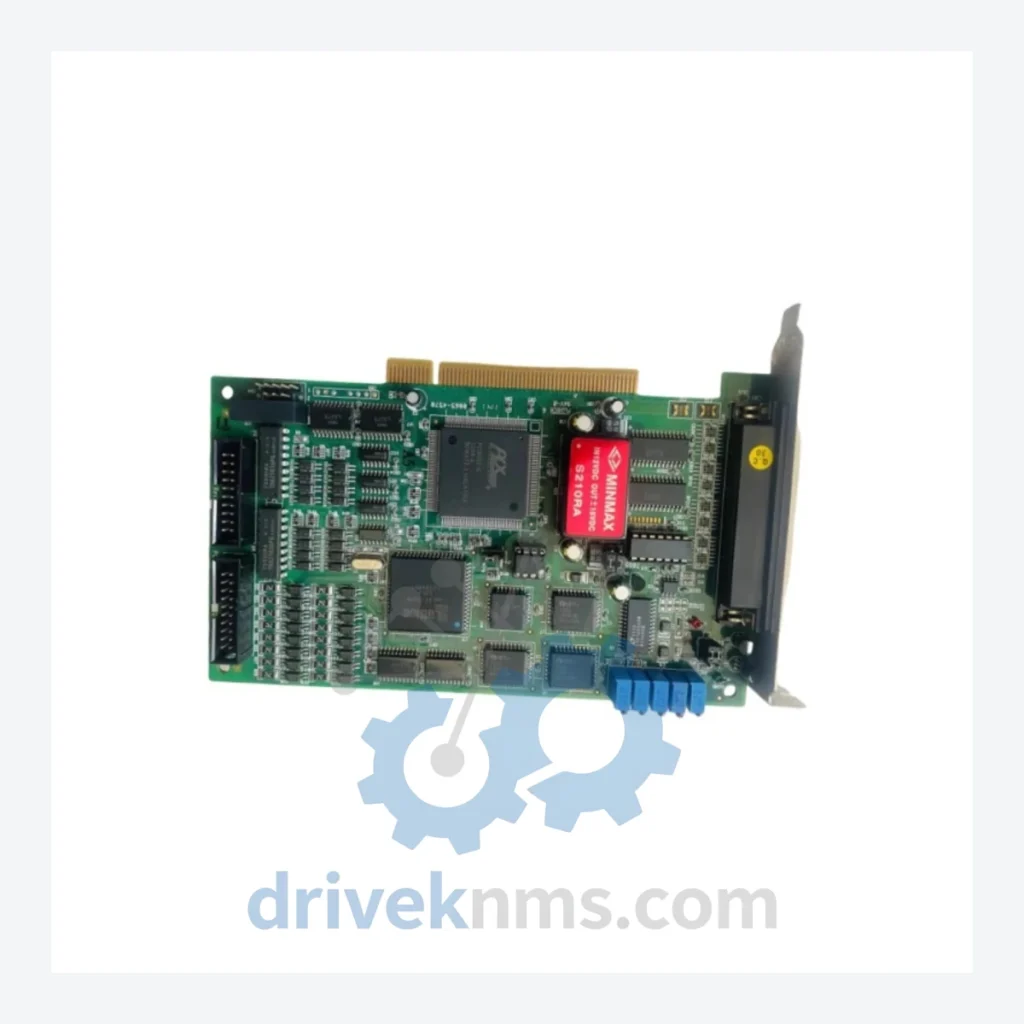

ADLINK PCI-9114A-DG Data Acquisition Card – Obsolete DAQ Spare Part

Technical Dossier

Product Details And Specifications

ADLINK PCI-9114A-DG Data Acquisition Card – Obsolete DAQ Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters above are drawn from published ADLINK documentation. Any parameters not listed here have not been independently verified and are intentionally omitted.

Solving the Discontinued Hardware Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

DriveKNMS specializes in sourcing exactly these components. We maintain relationships with decommissioned equipment brokers, OEM overstock channels, and controlled teardown facilities globally. When a part like the PCI-9114A-DG is no longer available through standard distribution, we are the next call.

Condition & Reliability Assurance

Discontinued hardware sourced from secondary markets carries inherent risk. Our QA process is designed to address the specific failure modes of aged PCI-bus DAQ hardware before any unit leaves our facility.

5-Step Inspection Protocol:

• Visual & Physical Inspection: Board-level examination for mechanical damage, burnt components, and solder joint integrity. Pin and edge connector condition assessed under magnification.
• Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure point in hardware of this era. Each unit is inspected for capacitor bulge, leakage, and ESR deviation. Units with suspect capacitors are either recapped or rejected.
• Firmware & Configuration Verification: Where applicable, onboard firmware version is confirmed against known-good references. Configuration jumpers and DIP switches are verified against factory defaults.
• Pin & Contact Corrosion Check: PCI edge connectors and I/O terminal pins are inspected and cleaned. Oxidation that causes intermittent contact faults — the most common field complaint on legacy DAQ cards — is addressed before dispatch review.
• Functional Bench Test: Units are powered and tested in a compatible PCI environment. Basic analog input and digital I/O functionality is confirmed prior to packaging.

Units are shipped in anti-static packaging with desiccant. Condition grade is documented and provided with each shipment.

Key Features for System Maintenance

The PCI-9114A-DG is a direct, drop-in replacement for any system currently running this card. There is no firmware migration, no I/O remapping, and no driver reinstallation required — provided the replacement unit carries the same hardware revision. This is the critical advantage of sourcing an identical part rather than attempting a cross-reference substitution.

For maintenance engineers, this means: pull the failed card, seat the replacement, power on. The control system sees no hardware change. No PLC program modification. No SCADA tag remapping. No validation protocol restart. The engineering hours saved by avoiding a forced substitution typically exceed the cost of maintaining a spare inventory by an order of magnitude.

For plant management, the business case is straightforward: the capital cost of holding one or two spare PCI-9114A-DG units is fixed and known. The cost of an unplanned line stop caused by an unavailable spare is variable, potentially unbounded, and always larger.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for authenticity markers including PCB silkscreen, component markings, and manufacturing date codes consistent with known ADLINK production runs. We do not source from unverified brokers. Provenance documentation is available on request.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Can you source other ADLINK legacy DAQ cards?
Yes. DriveKNMS maintains sourcing capability across the ADLINK PCI-9000 series and related legacy product lines. Contact us with your specific part number.
