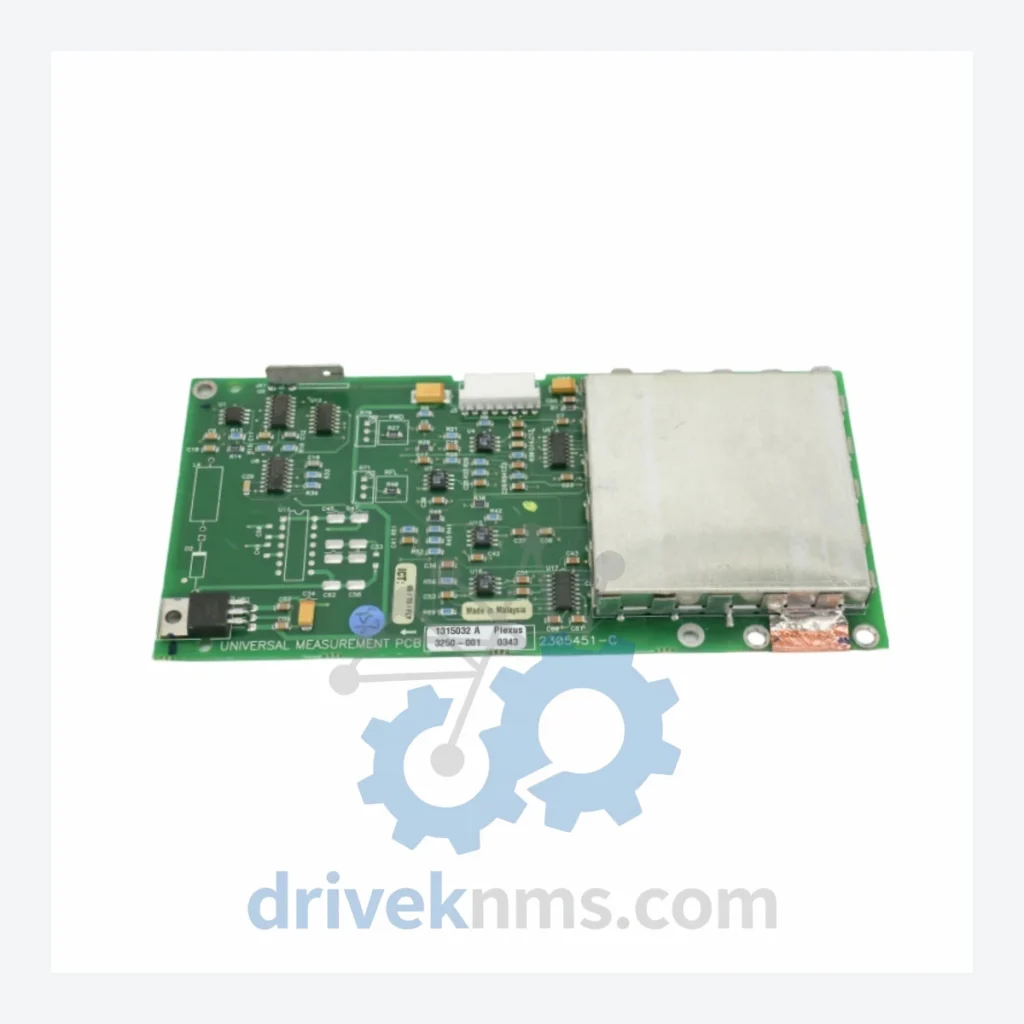

Advanced Energy 2305451-C Universal Measurement Board – Obsolete DT2000 Spare Part

When the Advanced Energy 2305451-C Universal Measurement Board (OLE36-10632-02) fails inside a DT2000-series power delivery system, the consequences extend far beyond a single board replacement. The DT2000 platform is deeply embedded in semiconductor fabrication, flat-panel display manufacturing, and precision thin-film deposition lines — environments where a single unplanned shutdown can cost $50,000 to $500,000 per day in lost wafer yield and idle labor. A full system migration to a current-generation RF power platform requires not only capital expenditure in the hundreds of thousands of dollars, but months of process re-qualification, new recipe development, and production downtime that no plant manager can absorb lightly. Securing a verified replacement 2305451-C board is, by any rational cost analysis, the lowest-risk path to restoring production.

DriveKNMS maintains sourced inventory of this discontinued component. Stock is finite and not replenishable through standard distribution channels.

Technical Specifications

Note: Electrical parameters (voltage rails, signal ranges, connector pinout) are board-revision-specific. DriveKNMS does not publish unverified specifications. Contact us for documentation support.

Solving the Discontinued Hardware Crisis

Advanced Energy's DT2000 generator series was a workhorse of the semiconductor process equipment industry through the 1990s and 2000s. The Universal Measurement Board (2305451-C) serves as the signal acquisition and conditioning backbone of the DT2000 chassis — it interfaces with forward and reflected power sensors, processes real-time RF measurement data, and feeds the control loop that maintains process stability. There is no functional equivalent available off the shelf from current product lines. Substituting a different board revision or a competing manufacturer's module is not a drop-in exercise; it requires firmware changes, calibration re-runs, and process re-qualification that can take weeks.

For fabs and OEM equipment builders still operating DT2000-equipped tools — particularly older CVD, PVD, and etch chambers — the 2305451-C is a single point of failure with no easy workaround. Procurement teams that have not pre-positioned at least one spare unit are operating with unacceptable risk exposure. The global secondary market for this board is thin. Each unit that surfaces is absorbed quickly.

How to extend your DT2000 asset life by 5–10 years at a fraction of replacement cost:

• Identify your critical single points of failure. The Universal Measurement Board is one of the highest-failure-risk assemblies in the DT2000 due to its analog signal processing circuitry and age-related component degradation. Map every DT2000 chassis on your floor and confirm spare coverage for this board.
• Establish a minimum two-unit buffer. One spare in active rotation, one sealed in long-term storage. The cost of two 2305451-C boards is a rounding error against the cost of a single unplanned outage or a forced system upgrade.
• Negotiate a maintenance contract that includes board-level repair. Some third-party service providers retain the test fixtures and calibration references needed to repair rather than replace DT2000 measurement boards. This extends the useful life of your existing spare pool.
• Document your current firmware revision. DT2000 firmware is tied to specific board hardware revisions. Before installing any replacement board, confirm revision compatibility with your system integrator or Advanced Energy's legacy support channel.
• Defer capital expenditure strategically. A new RF power platform from any tier-one supplier will cost $80,000–$250,000 per chamber, plus process re-qualification. Maintaining DT2000 tools with verified spare boards for another 5–10 years is a defensible asset protection strategy, not a stopgap.

Condition & Reliability Assurance

Sourcing obsolete boards from the secondary market carries real risk. DriveKNMS applies a structured 5-step qualification process to every 2305451-C unit before it is offered for sale:

1. Visual and mechanical inspection. Full board examination for physical damage, solder joint integrity, connector condition, and evidence of prior field repair or rework.
2. Electrolytic capacitor assessment. Age-related capacitor degradation is the primary failure mode in boards of this vintage. Each unit is evaluated for bulging, leakage, and ESR deviation from specification.
3. Pin and connector corrosion check. All edge connectors and header pins are inspected under magnification for oxidation, pitting, and contact resistance issues that would cause intermittent faults in service.
4. Firmware and revision verification. Where accessible, firmware version and board revision markings are documented and cross-referenced against known DT2000 compatibility matrices.
5. Functional power-on test. Units are powered and checked for basic operational response where test fixtures permit. Results are documented and available on request.

Units that do not pass all five stages are not offered for sale. Condition grade (New Surplus, Refurbished, or Tested Used) is disclosed transparently in every quotation.

Key Features for System Maintenance

• Drop-in replacement: The 2305451-C is a direct hardware substitute for the same revision in any DT2000 chassis. No mechanical modification is required.
• No reprogramming required: The board does not carry user-configurable firmware in most DT2000 configurations. Installation does not trigger a recipe or calibration reset in standard deployments.
• Avoids engineering re-qualification costs: Unlike a platform migration, a board-level replacement keeps your existing process recipes, interlocks, and chamber characterization data intact.
• Preserves capital budget: Maintenance at the board level costs a fraction of system-level replacement, freeing capital for yield improvement and capacity expansion rather than infrastructure replacement.

FAQ

Q: What warranty applies to a discontinued board like the 2305451-C?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all tested and refurbished units. New surplus units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of quotation.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from traceable channels — decommissioned OEM equipment, authorized liquidation, and verified industrial surplus. Markings, PCB revision codes, and component dates are inspected as part of our qualification process. We do not source from unverified brokers.

Q: Can you supply multiple units for long-term sparing?
A: Contact us with your quantity requirement. Where stock permits, we can reserve multiple units under a single purchase order. For customers with ongoing DT2000 fleets, we recommend discussing a dedicated sparing agreement.

Q: What if the board fails after installation?
A: Units that fail within the warranty period are replaced or refunded. We also maintain relationships with board-level repair specialists for post-warranty support on DT2000 assemblies.
