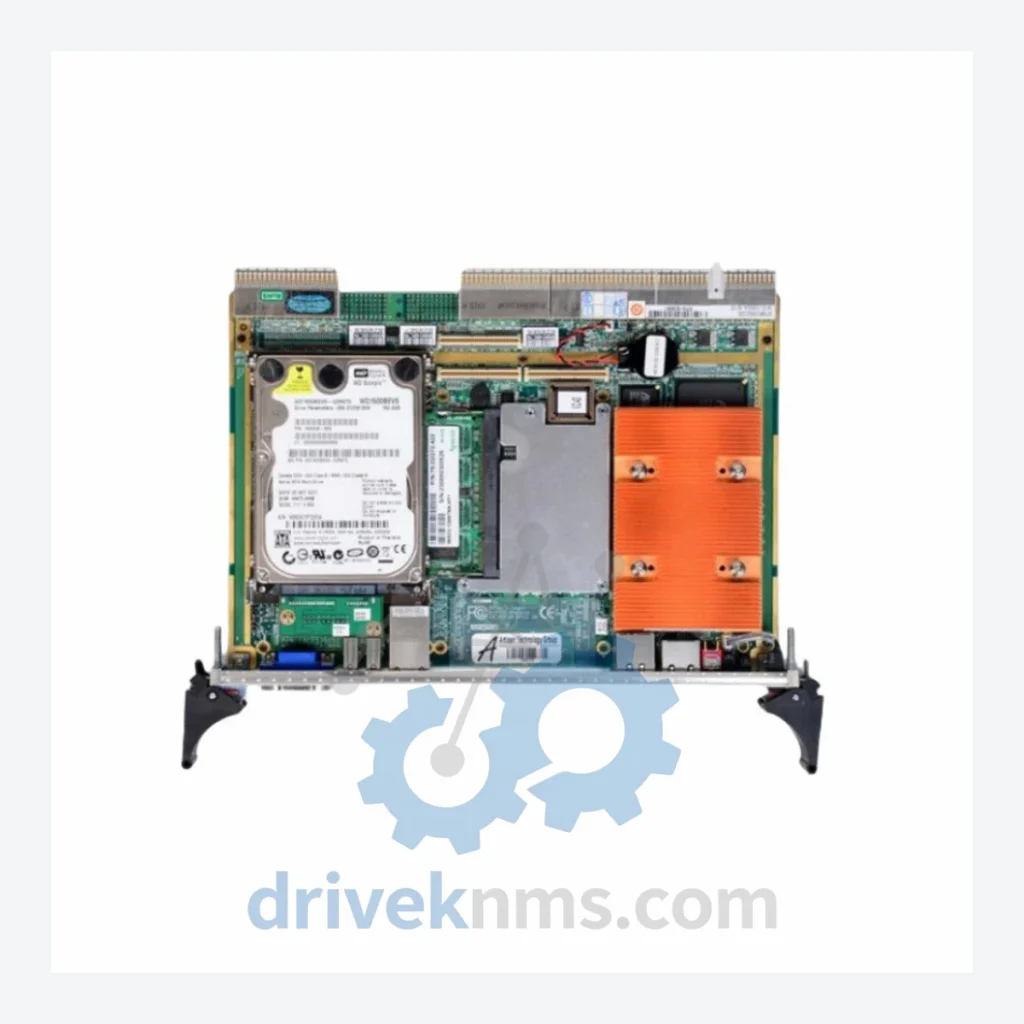

Advantech MIC-3392MIL 6U CompactPCI CPU Board – Obsolete MIC-3000 Spare Part

When the Advantech MIC-3392MIL fails in a production environment, the consequences extend far beyond a single board replacement. This module sits at the processing core of 6U CompactPCI-based control and data acquisition systems deployed across defense, transportation, industrial automation, and telecommunications infrastructure. A forced platform migration — driven solely by the unavailability of this one CPU board — routinely triggers engineering redesign costs, software re-qualification, system re-certification, and production downtime that collectively reach into the hundreds of thousands, or millions, of dollars. DriveKNMS maintains verified stock of the MIC-3392MIL specifically to prevent that outcome.

Technical Specifications

Note: Electrical parameters not listed here are not confirmed from verified sources. DriveKNMS does not publish unverified specifications. Contact us for datasheet access.

Solving the Discontinued Hardware Crisis

The Advantech MIC-3392MIL was a workhorse in ruggedized 6U CompactPCI chassis deployed across mission-critical environments. Systems built around this board — including those integrated with legacy SCADA platforms, VME-to-cPCI hybrid racks, and military-grade data acquisition systems — were designed with 15–20 year operational horizons. The hardware reached end-of-life before those systems did.

Factory managers and system integrators now face a structural problem: the control architecture cannot be easily swapped without triggering a cascade of software re-qualification, hardware re-certification, and operator retraining. In regulated industries — defense, rail, nuclear, aviation ground support — that process can take 2–4 years and consume engineering budgets that were never allocated for it.

Sourcing a verified MIC-3392MIL spare is not a workaround. It is the lowest-risk, lowest-cost path to maintaining system continuity. A single board, properly sourced and validated, can extend the operational life of an entire rack system by 5–10 years — deferring a platform migration until it can be planned, budgeted, and executed on the organization's own schedule rather than under emergency conditions.

The MIC-3392MIL is also commonly found in systems paired with other Advantech MIC-3000 series modules, as well as in chassis from Elma Electronic and Schroff. If your system includes any of these components, maintaining a cold-spare MIC-3392MIL is a direct form of asset protection.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every MIC-3392MIL unit before it is offered for sale:

Step 1 – Electrolytic Capacitor Inspection: Boards of this generation are susceptible to capacitor aging, particularly in high-temperature operating environments. Each unit is visually and electrically inspected for bulging, leakage, or elevated ESR values.

Step 2 – Firmware Version Verification: The installed BIOS and firmware version is documented and cross-referenced against known stable releases for the MIC-3392MIL. Boards with corrupted or mismatched firmware are flagged and not offered for sale.

Step 3 – Pin and Connector Integrity Check: All backplane connectors, front-panel I/O ports, and edge connectors are inspected for corrosion, bent pins, and mechanical damage. Boards with compromised connectors are rejected.

Step 4 – Functional Power-On Test: Where test infrastructure permits, units are powered on and basic POST completion is verified.

Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with foam cushioning and labeled with inspection date and condition grade prior to shipment.

Condition grades (New, Refurbished-Grade-A, Tested-Pull) are disclosed at the time of quotation. No unit is shipped without a documented condition record.

Key Features for System Maintenance

The MIC-3392MIL is a direct drop-in replacement for failed or degraded units within the same chassis. No backplane modification, no software re-compilation, and no re-engineering of the surrounding system architecture is required. The board slots into the existing 6U cPCI slot and operates within the same firmware and OS environment as the original unit.

This matters operationally. Maintenance teams can execute a board swap during a scheduled maintenance window without involving software engineers or system integrators. The avoided cost — in engineering hours, production downtime, and project management overhead — is substantial compared to any alternative that requires platform-level changes.

For facilities managing multiple chassis of the same type, maintaining a small cold-spare inventory of MIC-3392MIL boards is a straightforward risk mitigation measure. The cost of holding two spare boards is a fraction of the cost of a single unplanned production stoppage.

FAQ

Q: What warranty applies to a discontinued MIC-3392MIL?
A: DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New old-stock (NOS) units are offered with a 180-day warranty. Warranty terms are confirmed in writing at the time of sale.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced through traceable supply channels. Markings, PCB revision codes, and component configurations are cross-checked against known-good reference units. We do not source from unverified brokers.

Q: Should I buy more than one unit?
A: For systems with no viable migration path in the near term, holding at least one cold spare is standard practice. For multi-chassis environments or systems with high uptime requirements, two spares per site is a defensible minimum. Stock of EOL components is finite and does not replenish.

Q: Can you source other MIC-3000 series modules?
A: Yes. DriveKNMS specializes in the Advantech MIC-3000 series and related 6U CompactPCI ecosystem components. Contact us with your full BOM for availability assessment.
