Allen-Bradley 150 Series Modules

Technical Dossier

Product Details And Specifications

Allen-Bradley 150 Series: Comprehensive Module Range and Technical Overview

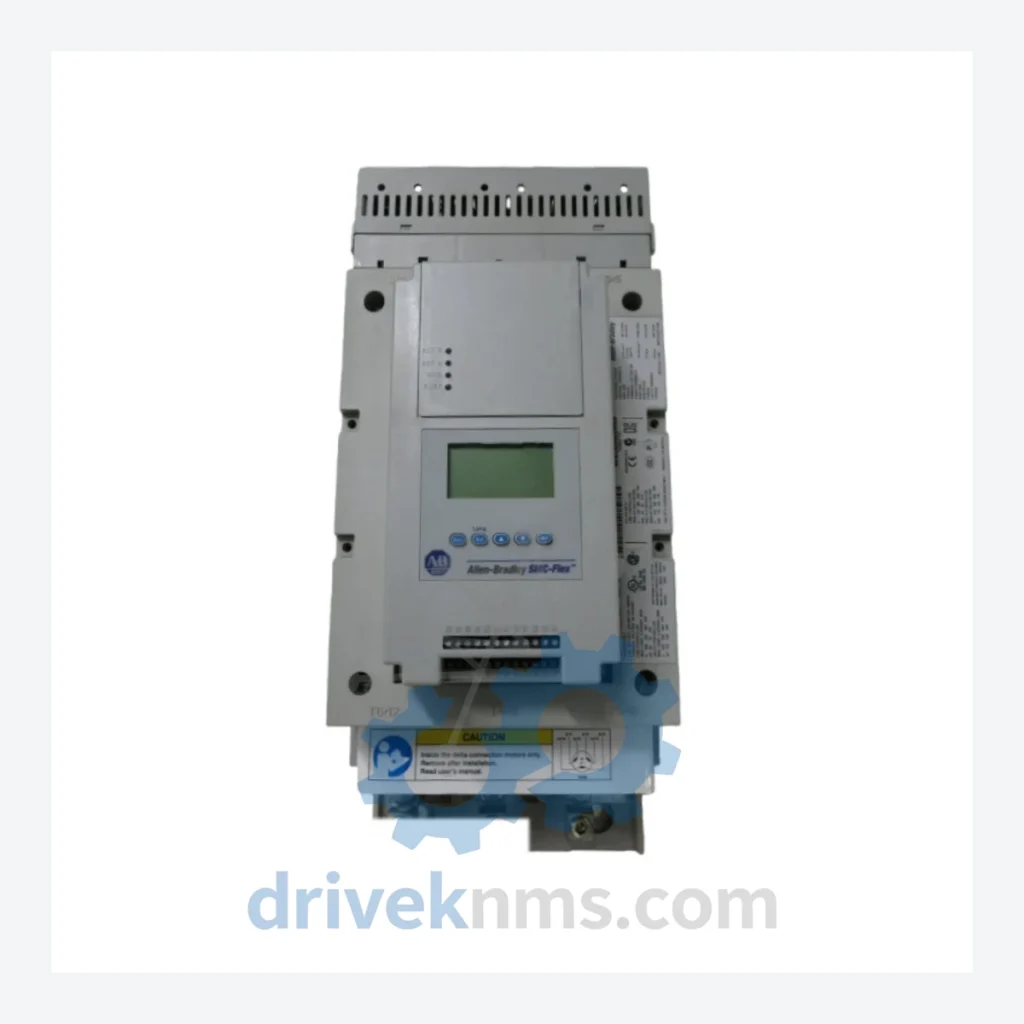

The Allen-Bradley 150 Series, commercially designated as the SMC-Flex Smart Motor Controller, is a solid-state reduced-voltage motor starter platform manufactured by Rockwell Automation. It has accumulated a substantial installed base across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, pulp and paper mills, and large-scale water treatment facilities. The 150 Series occupies the mid-to-high tier of Rockwell's motor control portfolio, positioned above the SMC-3 (150-C Series) and below full variable-frequency drive solutions, making it the preferred choice for applications requiring controlled acceleration, deceleration, and real-time motor protection without full speed regulation.

Rated from 3A to 1250A (covering motor ranges from fractional HP to 600 HP at 480V), the SMC-Flex supports six programmable control modes: Soft Start, Current Limit Start, Full Voltage Start, Preset Slow Speed, Linear Speed Acceleration, and Pump Control. Its dual-port DeviceNet and optional communication adapter architecture allows direct integration into Rockwell ControlLogix, CompactLogix, and legacy PLC-5 / SLC 500 control systems via standard backplane or network messaging.

The Evolution of 150 Series Architecture

The Allen-Bradley 150 Series traces its lineage to the early solid-state starter platforms of the 1980s. The original SMC-2 (catalog prefix 150-A) introduced thyristor-based soft-start capability but lacked onboard diagnostics or network connectivity. The subsequent SMC-Plus (150-B Series) added current-sensing feedback and rudimentary fault logging, establishing the foundation for closed-loop motor protection.

The SMC-Flex (150-C / 150-F Series), introduced in the late 1990s and refined through the 2000s, represented a generational shift: a modular architecture with a removable parameter module (RPM), a dedicated communication adapter slot, and a 16-character LCD operator interface. The 150-F prefix specifically denotes units with the full-featured control board supporting all six control modes and the complete protection suite (phase loss, ground fault, stall, jam, underload, thermistor input).

As of 2020, Rockwell Automation has formally classified the SMC-Flex as a mature/end-of-life product, with manufacturing discontinued for select catalog numbers. Active support (firmware, spare parts via distribution) continues under Rockwell's standard lifecycle policy, but long-term maintenance planning should account for diminishing OEM stock. Modern replacement candidates include the Allen-Bradley SMC-50 (150-S Series), which adds EtherNet/IP native connectivity and expanded diagnostic data.

150 Series Full Catalog & Functionalities (SKU List)

The following catalog numbers represent verified, commonly stocked SKUs within the Allen-Bradley 150 Series SMC-Flex platform. Units are classified by functional role.

Smart Motor Controllers — Standard Frame (3A–97A)

• 150-C3NBD: 3A, 200–480V, DeviceNet, standard control, no bypass
• 150-C7NBD: 7A, 200–480V, DeviceNet, soft-start, phase-loss protection
• 150-C16NBD: 16A, 200–480V, DeviceNet, full protection suite enabled
• 150-C25NBD: 25A, 200–480V, DeviceNet, pump control mode capable
• 150-C37NBD: 37A, 200–480V, DeviceNet, linear speed acceleration mode
• 150-C43NBD: 43A, 200–480V, DeviceNet, current limit start mode
• 150-C60NBD: 60A, 200–480V, DeviceNet, preset slow speed mode
• 150-C85NBD: 85A, 200–480V, DeviceNet, full six-mode control
• 150-C97NBD: 97A, 200–480V, DeviceNet, thermistor input, jam/stall protection

Smart Motor Controllers — High-Current Frame (135A–1250A)

• 150-F135NBR: 135A, 200–600V, with bypass contactor, full protection suite
• 150-F180NBR: 180A, 200–600V, bypass contactor, DeviceNet ready
• 150-F201NBR: 201A, 200–600V, bypass contactor, six-mode control, ground fault
• 150-F251NBR: 251A, 200–600V, bypass contactor, linear acceleration, pump mode
• 150-F317NBR: 317A, 200–600V, bypass contactor, full diagnostic logging
• 150-F361NBR: 361A, 200–600V, bypass contactor, thermistor, underload protection
• 150-F480NBR: 480A, 200–600V, bypass contactor, high-inertia load capable
• 150-F625NBR: 625A, 200–600V, bypass contactor, large pump/compressor applications

Communication Adapter Modules

• 150-SM1: DeviceNet communication adapter for SMC-Flex, DIN-rail mount
• 150-SM2: Remote I/O (RIO) communication adapter, legacy PLC-5/SLC integration
• 150-SM3: Profibus DP adapter, European fieldbus installations
• 150-SM4: ControlNet adapter, high-speed deterministic network support

Accessories & Parameter Modules

• 150-PS3: Removable parameter module (RPM), stores all configuration parameters offline
• 150-SCIM1: Isolation module for 150 Series, used in high-leakage current environments

Sourcing Hard-to-Find & Obsolete 150 Series Parts

With the SMC-Flex platform in its mature/end-of-life phase, procurement of specific catalog numbers — particularly high-current frames (150-F Series) and legacy communication adapters (150-SM2 RIO) — has become increasingly constrained through standard Rockwell Automation distribution channels. DriveKNMS maintains a dedicated inventory of tested, pull-from-service, and new-surplus 150 Series units sourced from decommissioned plant equipment, authorized surplus dealers, and direct OEM overstock.

For end-users operating facilities with 10+ year maintenance horizons (nuclear auxiliary systems, chemical plant motor control centers), DriveKNMS provides: (1) multi-unit buffer stock agreements, (2) cross-reference mapping to SMC-50 replacement equivalents where direct substitution is feasible, and (3) documentation support for obsolescence management reports required by plant engineering teams.

Quality Control for the 150 Series Range

Each 150 Series unit processed by DriveKNMS undergoes a structured verification protocol specific to the SMC-Flex architecture. Power section testing applies rated current (up to 201A for 150-F201NBR class units) through a resistive load bank to verify SCR firing symmetry across all three phases. Control board diagnostics confirm correct operation of all six control modes via the onboard LCD interface and parameter upload/download via the 150-PS3 removable parameter module.

Communication adapter modules (150-SM1 through 150-SM4) are tested on live DeviceNet, RIO, and ControlNet segments using Rockwell RSNetWorx and RSLogix 5000 to confirm node commissioning, I/O mapping, and fault reporting. Bypass contactor integrity (applicable to all 150-F Series units) is verified for contact resistance and mechanical operation. All units are issued a test report documenting pre- and post-test parameter states.
