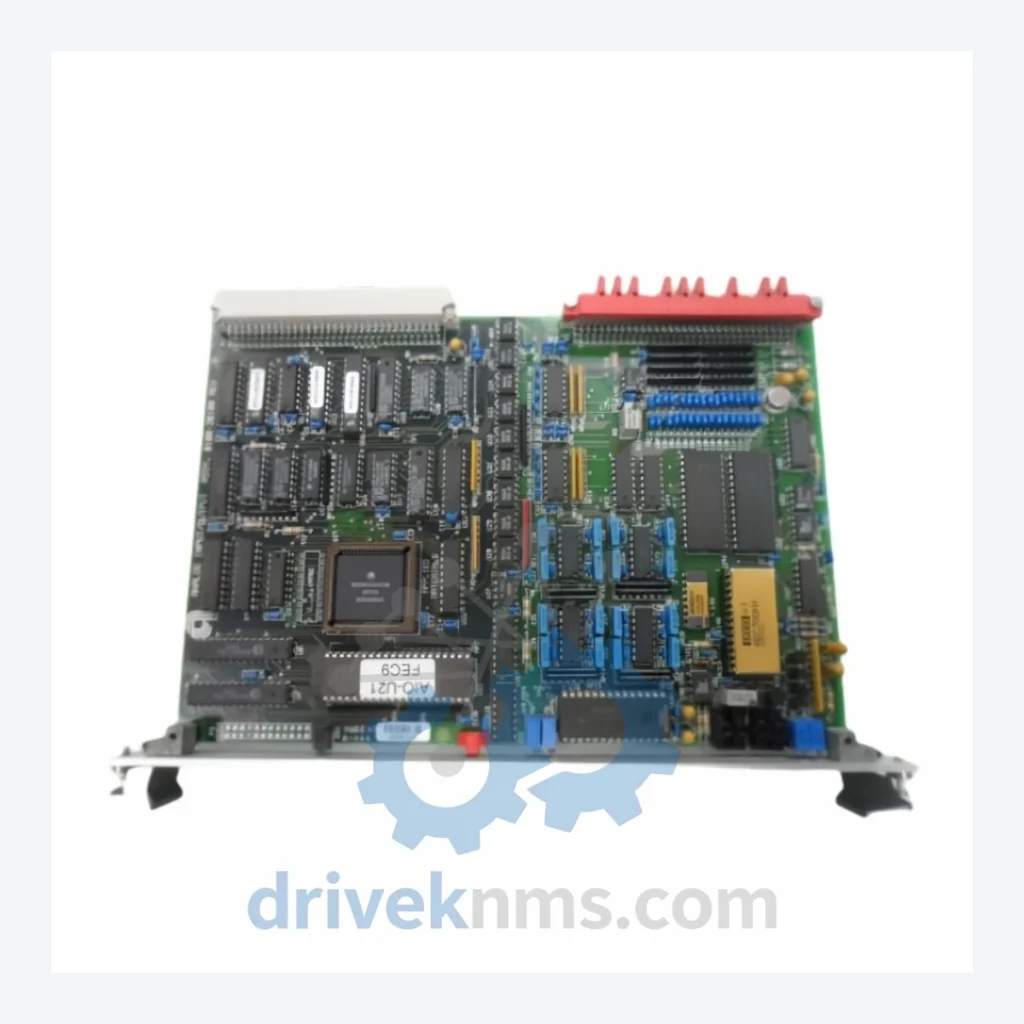

Applied Materials 0100-20100 PCB Analog I/O Board – Obsolete Spare Part

Technical Dossier

Product Details And Specifications

Applied Materials 0100-20100 PCB Analog I/O Board – Obsolete Spare Part

When the Analog I/O board on a legacy Applied Materials (AMAT) process tool fails, the consequences extend far beyond a single module replacement. For fabs still operating platforms built around this architecture, a single unresolved board failure can trigger a full tool qualification cycle, force unplanned downtime measured in days, and — in the worst case — accelerate a capital equipment retirement decision that carries a multi-million dollar system upgrade cost. DriveKNMS maintains verified physical stock of the AMAT 0100-20100 PCB Analog I/O Board specifically to interrupt that chain of events. This is not a catalog listing. This is a documented, inspected unit held for customers who cannot afford to wait on a spot-market search.

Technical Specifications

Note: Electrical parameters are confirmed only against physical unit inspection. No speculative values are published. Contact us for a full test report on the specific unit.

Solving the Discontinued Hardware Crisis

Applied Materials process tools — particularly those deployed in the 200mm fab era — were engineered for decade-long service lives. The Analog I/O board at part number 0100-20100 sits at the interface between the tool's process control logic and its physical sensor and actuator network. It handles analog signal conditioning that the tool's main controller depends on for real-time process feedback. There is no generic substitute. The board's connector pinout, signal range calibration, and firmware handshake are specific to the platform it was designed for.

When OEM support ends, the options narrow sharply: source the original board from the secondary market, or face a re-engineering project that typically requires months of process re-qualification and carries no guarantee of matching the original process window. For fabs running mature nodes where the economics of a full tool replacement cannot be justified, the secondary market is not a fallback — it is the primary maintenance strategy.

The broader supply chain reality is that AMAT legacy boards of this generation are drawn from a finite pool of new-old-stock and decommissioned tool inventories. Each year, that pool contracts. Procurement teams that wait until a failure event to search for this part routinely encounter lead times of 8–20 weeks, or find no verified stock at all. The cost of that delay — in lost wafer starts, expedited engineering labor, and potential yield excursions — consistently exceeds the cost of holding a spare unit by an order of magnitude.

How to extend your AMAT tool's service life by 5–10 years through strategic spare parts management:

• Identify single-point-of-failure boards now, not after a fault. The 0100-20100 is a candidate. Map every board in your tool that has no verified secondary source and no modern equivalent. That list is your critical spares register.
• Hold at minimum one cold spare per tool, two per fab. The carrying cost of a spare PCB is a fraction of one day of unplanned downtime on a process tool. The math is straightforward.
• Establish a refurbishment cycle before boards fail. Electrolytic capacitors on boards of this age are the primary failure mode. A proactive recapping program on a rotating spare extends functional life by 5–8 years without touching the tool's process qualification status.
• Document firmware versions before any board swap. Analog I/O boards in this platform generation may carry embedded calibration data. Confirm with your process engineering team whether a replacement board requires re-calibration before returning the tool to production.
• Consolidate procurement through verified secondary market suppliers. Spot-market sourcing from unvetted channels introduces counterfeit and re-marked part risk. For safety-critical process equipment, provenance documentation is not optional.

Condition & Reliability Assurance

DriveKNMS applies a 5-step inspection protocol to all legacy PCB inventory before shipment:

1. Visual and mechanical inspection: Board surface, connector pins, and solder joints are examined under magnification. Corrosion, physical damage, and pin deformation are documented and disqualify a unit from sale as functional stock.
2. Electrolytic capacitor assessment: Capacitors on boards of this age are tested for ESR and capacitance drift. Units showing degradation beyond tolerance are flagged. Recapping is performed where specified by the customer.
3. Firmware and revision verification: Board revision markings and any embedded firmware identifiers are recorded and disclosed to the buyer prior to shipment. No revision substitution is made without explicit customer approval.
4. Functional power-on test (where applicable): Boards are tested under controlled bench conditions where test fixtures are available for the platform.
5. Anti-static packaging and documentation: All units ship in ESD-safe packaging with a condition report. Lot traceability documentation is provided where available.

Key Features for System Maintenance

• Drop-in replacement: The 0100-20100 is a direct form-fit-function replacement for the original board position. No mechanical modification to the tool chassis is required.
• No re-programming required: The board operates within the tool's existing control architecture. There is no software re-write or PLC re-configuration associated with a like-for-like board swap.
• Avoids engineering re-qualification cost: Replacing a failed board with an identical part number preserves the tool's existing process qualification. Introducing a non-OEM substitute or a redesigned module triggers a re-qualification event that can cost more than the tool's remaining depreciated value.
• Immediate dispatch: Stock on hand ships within 2 business days of order confirmation. No lead time exposure from OEM back-order queues.

FAQ

What warranty applies to an obsolete part like the 0100-20100?
DriveKNMS provides a 90-day functional warranty on tested refurbished units and a 30-day DOA warranty on new-old-stock units. Warranty terms are confirmed in writing at the time of quotation.

How do I know the unit is genuine and not a counterfeit or re-marked part?
We source from documented decommissioned tool inventories and authorized secondary market channels. Each unit is inspected against known-good reference markings. We do not purchase from unverified spot-market aggregators. Provenance documentation is available on request.

Should I buy more than one unit?
For any fab running more than one tool that uses this board, holding a minimum of two units is the standard recommendation. The secondary market supply of this part number is not replenishable from OEM channels. Once current stock is exhausted, the next available units may carry a significantly longer lead time or higher cost.

Can you source other AMAT legacy boards?
Yes. DriveKNMS specializes in Applied Materials and other major semiconductor equipment OEM legacy parts. Submit your full BOM or part number list for a consolidated availability check.
