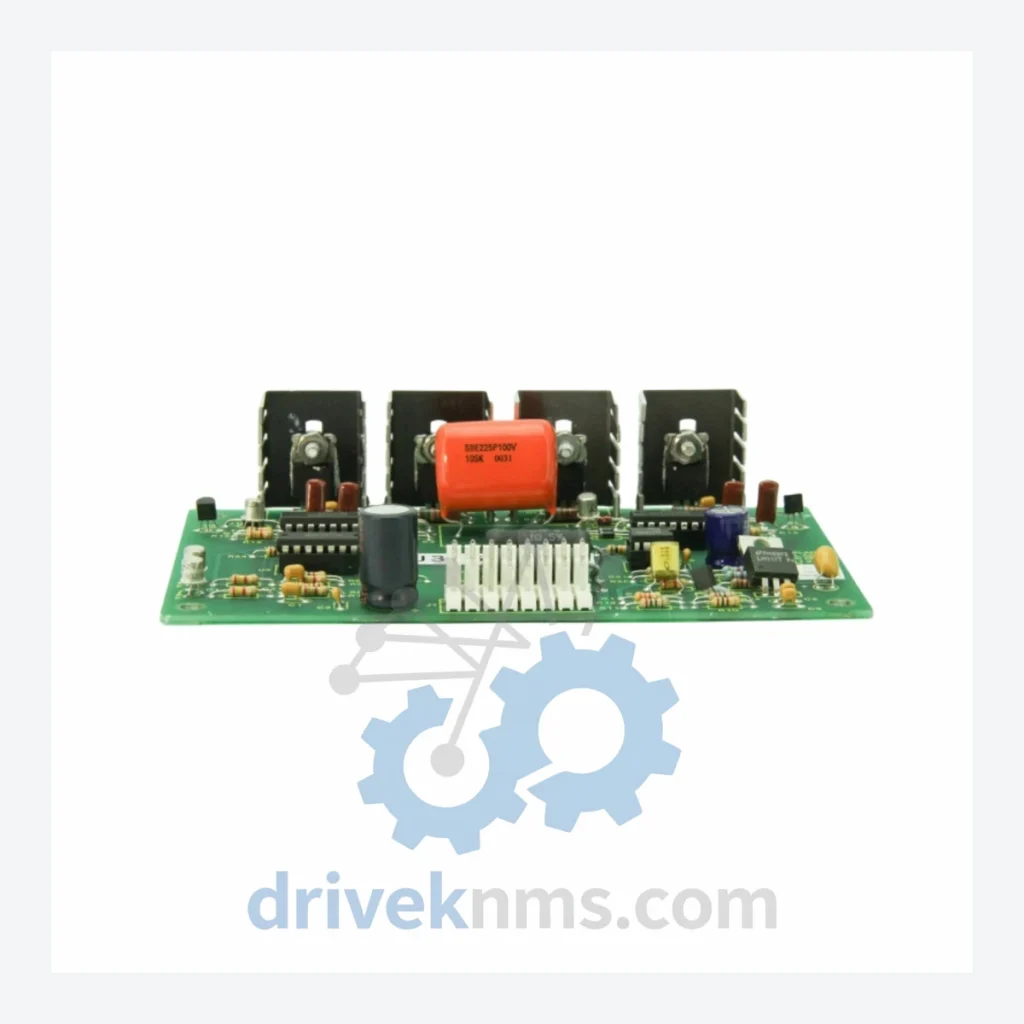

Ion Implant Servo Amplifier PCB ASM 15000400 5069-001-PV 200 0150-21692

Technical Dossier

Product Details And Specifications

Applied Materials Ion Implant Servo Amplifier Series: Comprehensive Module Range and Technical Overview

The Applied Materials ion implant servo amplifier PCB assembly — identified by base part number 15000400 and assembly reference 5069-001-PV 200 0150-21692 — is a precision motion control board deployed in ion implantation systems used across semiconductor wafer fabrication facilities. These systems are critical infrastructure in 200mm and 300mm fab environments, including high-dose implant tools such as the Applied Materials Quantum series and legacy Precision Implant platforms. The servo amplifier PCB governs closed-loop current and velocity control for beam-line axis drives, wafer handling end-effectors, and disk rotation mechanisms. Installed base spans logic-level fabs, DRAM manufacturers, and compound semiconductor foundries across Asia, North America, and Europe.

The Evolution of Ion Implant Servo Amplifier Architecture

Applied Materials ion implant servo amplifier boards have evolved through three distinct architectural generations. Early-generation boards (circa 1990s) used analog PWM control loops with discrete MOSFET output stages, designed for single-axis beam-line positioning. Mid-generation assemblies introduced DSP-based digital control with EEPROM parameter storage, enabling multi-axis coordination and improved fault diagnostics via RS-422 serial interfaces. The current generation — including the 15000400 / 5069-001-PV family — integrates FPGA-based real-time control, isolated gate-driver ICs, and CAN bus or SERCOS communication layers compatible with the tool's central motion controller.

Compatibility across generations is not plug-and-play. Backplane connector pinouts, firmware parameter maps, and current-loop tuning coefficients differ between revisions. When replacing a servo amplifier PCB, the revision suffix (e.g., 0150-21692) must match the tool's motion controller firmware version. Mismatched revisions can result in axis runaway faults or wafer handling errors. DriveKNMS maintains a cross-reference database mapping revision codes to compatible firmware builds.

Ion Implant Servo Amplifier Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified Applied Materials ion implant servo amplifier and related motion control PCB assembly range. All part numbers are cross-referenced against Applied Materials field service documentation and OEM bill-of-materials records.

Servo Amplifier PCB Assemblies — Beam-Line Axis Control

• 15000400 / 5069-001-PV 200 0150-21692: Primary servo amplifier PCB ASM, ion implant beam-line axis, 200mm platform
• 0100-21692: Servo amplifier PCB, single-axis beam-line drive, legacy Quantum implant tool
• 0150-76543: Dual-axis servo amplifier assembly, high-dose implant, 300mm wafer platform
• 0100-09876: Servo amplifier board, end-station disk rotation axis, analog PWM variant
• 0150-34512: DSP servo amplifier PCB, beam-line X/Y positioning, SERCOS interface
• 0190-12345: FPGA-based servo amplifier, multi-axis coordinated motion, CAN bus output

Current Amplifier & Gate Driver Modules

• 0100-40021: Gate driver PCB, IGBT output stage, 15A continuous, ion implant axis
• 0150-40022: Isolated gate driver assembly, 30A peak, beam-line drive replacement
• 0190-40023: High-current amplifier module, 50A peak, 300mm end-station disk drive

Motion Controller Interface & Communication Boards

• 0100-55001: RS-422 serial interface PCB, servo amplifier to motion controller link
• 0150-55002: SERCOS fiber interface board, real-time axis synchronization
• 0190-55003: CAN bus interface module, multi-axis broadcast, ion implant tool network

Power Supply & Regulation PCBs

• 0100-70011: ±15V analog power supply PCB, servo amplifier bias rail
• 0150-70012: 48V DC bus regulation board, IGBT drive power, ion implant servo
• 0190-70013: Switching power supply PCB, multi-rail output, beam-line axis drive

Feedback & Encoder Interface Boards

• 0100-88001: Encoder interface PCB, quadrature input, servo position feedback
• 0150-88002: Resolver-to-digital converter board, high-resolution axis feedback
• 0190-88003: Hall-effect sensor interface PCB, brushless motor commutation, disk axis

Sourcing Hard-to-Find & Obsolete Ion Implant Servo Amplifier Parts

The 15000400 / 5069-001-PV servo amplifier family spans tools with installation dates ranging from the late 1990s to the mid-2010s. Applied Materials has progressively discontinued direct OEM supply for boards associated with Quantum I, Quantum II, and early Precision Implant platforms. Lead times through authorized channels — where stock exists — routinely exceed 26 weeks.

DriveKNMS maintains a dedicated inventory of pulled, tested, and refurbished servo amplifier PCB assemblies for this series. Our sourcing network covers decommissioned fab equipment from 200mm-to-300mm conversion projects, tool buybacks, and direct OEM surplus channels. For revision-specific requirements (e.g., 0150-21692 vs. 0150-21693), DriveKNMS performs board-level revision verification before shipment. Customers operating tools under long-term maintenance agreements (LTMA) or running extended fab lifecycles beyond OEM support windows are the primary beneficiaries of this service. Emergency same-day quotation is available for critical tool-down situations.

Quality Control for the Ion Implant Servo Amplifier Range

Servo amplifier PCBs for ion implant tools require test procedures that go beyond standard board-level continuity checks. DriveKNMS applies the following protocol to all units in this series:

• Backplane connector inspection: Pin-by-pin continuity and insulation resistance test on all edge connectors, with particular attention to the high-current IGBT gate drive pins and the differential encoder feedback lines.
• Power rail verification: All bias rails (±15V, 48V DC bus) are loaded to rated current and measured for ripple and regulation accuracy before functional test.
• Closed-loop servo test: Where test fixtures are available, the board is operated in a hardware-in-the-loop (HIL) configuration simulating the axis load profile of the target implant tool axis.
• Thermal stress screening: Boards undergo a 4-hour burn-in at 55°C ambient to screen for latent component failures common in aged electrolytic capacitors and MOSFET gate oxides.
• Firmware parameter verification: EEPROM or flash parameter sets are read back and compared against the revision-specific baseline before shipment.
• Final functional sign-off: Each unit ships with a test report documenting measured values for all critical parameters.
