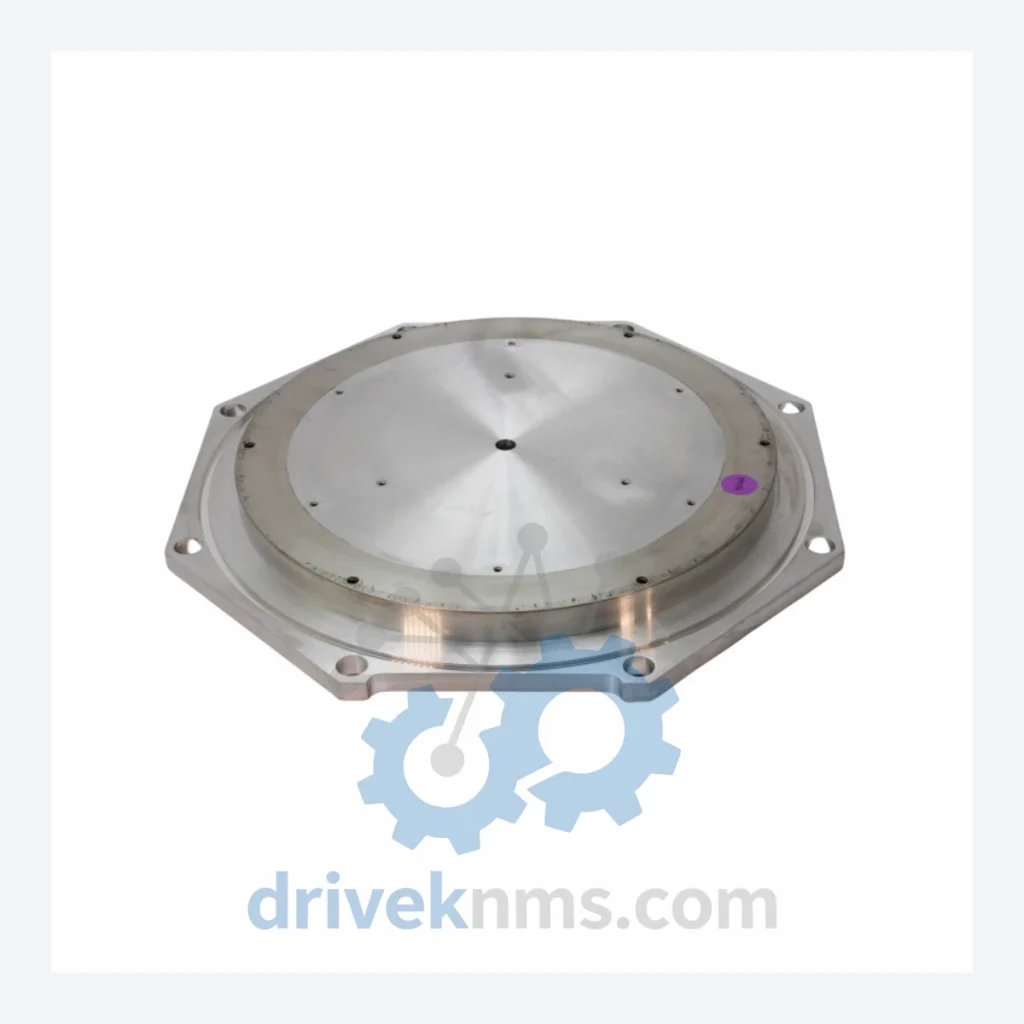

Applied Materials P50B05010DCS00 Gas Box Modules: 0040-32073 1.1A 540-00051-100

Technical Dossier

Product Details And Specifications

Applied Materials P50B05010DCS00 Series: Comprehensive Gas Box Module Range and Technical Overview

The Applied Materials P50B05010DCS00 Gas Box assembly series is a mission-critical sub-system deployed across Applied Materials CVD (Chemical Vapor Deposition), PVD (Physical Vapor Deposition), and plasma etch platforms in high-volume semiconductor fabrication facilities globally. These assemblies govern process gas delivery, flow control, isolation, and purge sequencing — functions that directly determine wafer yield and process repeatability. The primary field-replaceable unit (FRU) within this configuration is the 0040-32073, rated at 1.1A, cross-referenced under OEM part number 540-00051-100. Installed base spans 200mm and 300mm wafer fabs, flat panel display (FPD) manufacturing lines, and advanced packaging facilities operated by Tier-1 foundries and IDMs across Asia-Pacific, North America, and Europe. Uptime SLAs at these facilities demand immediate access to verified, tested spare parts — a requirement that OEM lead times of 16–26 weeks routinely fail to meet for mature platform configurations.

The Evolution of P50B05010DCS00 Architecture

Applied Materials' Gas Box platform has undergone iterative revision across multiple tool generations spanning roughly two decades of semiconductor process equipment development. First-generation Gas Box assemblies were designed for single-chamber platforms with analog MFC (mass flow controller) interfaces, manual calibration procedures, and discrete pneumatic valve actuation. Electrical interfaces relied on multi-pin Amphenol-style connectors with no embedded diagnostics capability.

Mid-generation revisions — of which the P50B05010DCS00 is representative — introduced integrated solenoid valve manifolds with individual coil monitoring, digital pressure transducer interfaces compatible with Applied Materials' process control software (PCS) architecture, and automated leak-check sequencing triggered by the chamber recipe system. The 0040-32073 assembly reflects this transitional architecture: it retains backward-compatible backplane connector geometry while incorporating updated I/O harness pinouts and solenoid driver circuit revisions documented in Applied Materials engineering change notices (ECNs).

Later-generation Gas Box designs migrated toward fully integrated smart manifold architectures with embedded fieldbus communication (DeviceNet, EtherCAT) and on-board diagnostics. The P50B05010DCS00 series is not compatible with these later fieldbus-native architectures without harness and firmware adaptation. Field engineers performing cross-revision substitutions must verify harness part numbers, solenoid driver board revision levels, and PCS software compatibility before installation. The series is now classified as mature/end-of-life within Applied Materials' standard support catalog, making third-party lifecycle support the primary sourcing channel for most operators.

P50B05010DCS00 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Applied Materials P50B05010DCS00 Gas Box assembly and its associated process module ecosystem. Entries are classified by functional category. Only parts confirmed within this platform family are listed.

Gas Box Assemblies (Primary FRUs)
0040-32073: Gas Box assembly, 1.1A rated, P50B05010DCS00 config, primary FRU; cross-ref 540-00051-100
0040-32074: Gas Box assembly variant, alternate current rating, same P50B platform family
0040-32075: Gas Box assembly, high-flow configuration, extended MFC count variant
0040-32100: Pressure transducer assembly, panel-mount, Gas Box integration
0040-32200: Filter assembly, point-of-use, Gas Box inlet conditioning
0040-32300: Gas Box base plate weldment, P50B platform structural sub-assembly
0040-32400: Regulator assembly, two-stage, Gas Box inlet pressure conditioning

Valve & Manifold Components
0040-76063: Solenoid valve manifold block, compatible with P50B series gas panels
0040-76100: Purge valve assembly, integrated Gas Box sub-component
0040-76200: Check valve assembly, Gas Box outlet manifold
0040-76300: Isolation valve actuator, pneumatic, Gas Box panel-mount
0040-76400: Vent valve assembly, process gas exhaust path, P50B Gas Box

MFC & Flow Control Sub-Assemblies
0040-09700: MFC signal conditioning board, Gas Box electronics bay
0040-09808: MFC mounting bracket, Gas Box sub-assembly, standard pitch
0040-09809: Gas line fitting assembly, stainless steel, VCR-type, Gas Box interface
0040-09900: Electrical harness, Gas Box to process module interface, P50B pinout

Structural & Enclosure Components
0040-44512: Gas Box cover plate, anodized aluminum, P50B platform
0040-09600: Gas Box diagnostic interface cable assembly
540-00051-100: OEM cross-reference number for 0040-32073 Gas Box assembly (alternate ordering reference)

Sourcing Hard-to-Find & Obsolete P50B05010DCS00 Parts

The P50B05010DCS00 series is classified as mature/end-of-life within Applied Materials' standard support catalog. Direct OEM procurement for this configuration is subject to lead times of 16–26 weeks, minimum order quantity restrictions, or outright discontinuation. For fabs operating extended tool lifetimes — a common scenario in legacy 200mm lines and cost-optimized etch/CVD clusters — third-party lifecycle support is the operationally viable sourcing path.

DriveKNMS maintains a dedicated inventory program for the P50B05010DCS00 series and associated Applied Materials Gas Box components. Stock is sourced from: decommissioned tool teardowns with documented part provenance; verified OEM overstock and new-surplus channels; and certified refurbishment pipelines with full functional test records. All units are catalogued by part number, revision level, and condition grade (new surplus, refurbished-tested, used-functional). Traceability documentation and condition reports are available on request for quality-critical procurement processes.

Quality Control for the P50B05010DCS00 Range

Gas Box assemblies require rigorous pre-shipment verification due to their role in process gas containment, flow accuracy, and electrical interface integrity. DriveKNMS applies the following test protocol to all P50B05010DCS00 units:

1. Visual inspection of all VCR and compression fittings for deformation, corrosion, particulate contamination, and seal surface condition.
2. Electrical continuity verification across all solenoid valve coil circuits against OEM resistance specifications (per Applied Materials service documentation).
3. Functional actuation test of all solenoid and pneumatic valves under rated supply pressure, confirming full open/close travel and absence of stiction or leakage.
4. MFC interface connector pin-out verification against Applied Materials harness documentation for the P50B platform revision.
5. Pressure transducer output verification against calibrated reference standard where applicable.
6. Helium leak-check on all gas-wetted surfaces to a threshold of ≤1×10⁻⁹ atm·cc/sec where test infrastructure permits.
Units failing any applicable test step are quarantined and excluded from sale inventory. Test records are retained and available for customer review upon request.
