Applied Materials DCS80 Modules: 0040-35582 DCS80-13EM1M52 3D86-001956-12 Blower Mount HTF EPI Assembly –

Technical Dossier

Product Details And Specifications

Applied Materials DCS80 Series: Comprehensive Module Range and Technical Overview

The Applied Materials DCS80 series represents a critical subsystem architecture deployed across high-throughput semiconductor fabrication environments, including epitaxial (EPI) deposition chambers, chemical vapor deposition (CVD) reactors, and thermal processing platforms. These assemblies are integral to the HTF (High-Temperature Furnace) and EPI tool families, which are installed at volume in 200mm and 300mm fabs operated by leading IDMs and foundries globally. The DCS80 platform's modular design — spanning blower mounts, thermal management assemblies, and process control subassemblies — enables field-replaceable maintenance without full chamber teardown, making spare parts availability a direct factor in fab uptime and OEE (Overall Equipment Effectiveness).

The Evolution of DCS80 Architecture

The DCS80 platform was developed as part of Applied Materials' modular equipment strategy for epitaxial and thermal processing tools. Early-generation DCS assemblies used discrete pneumatic and mechanical blower mount configurations tied to specific chamber generations. As tool platforms evolved through the Centura, Endura, and Producer series, the DCS80 subassembly architecture was refined to accommodate higher process temperatures, improved gas flow uniformity, and tighter thermal budgets required by sub-28nm process nodes.

The 3D86 sub-series (e.g., 3D86-001956-12) reflects a revision-controlled component lineage, where the trailing revision suffix (-12) denotes a specific engineering change order (ECO) level. Compatibility between revision levels must be verified against the tool's BOM (Bill of Materials) before substitution. Many DCS80-series parts have reached end-of-life (EOL) status from the OEM, making third-party sourcing and refurbishment the primary supply channel for ongoing maintenance.

DCS80 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified Applied Materials DCS80-series and associated HTF/EPI platform components. Each entry reflects a distinct functional role within the tool assembly:

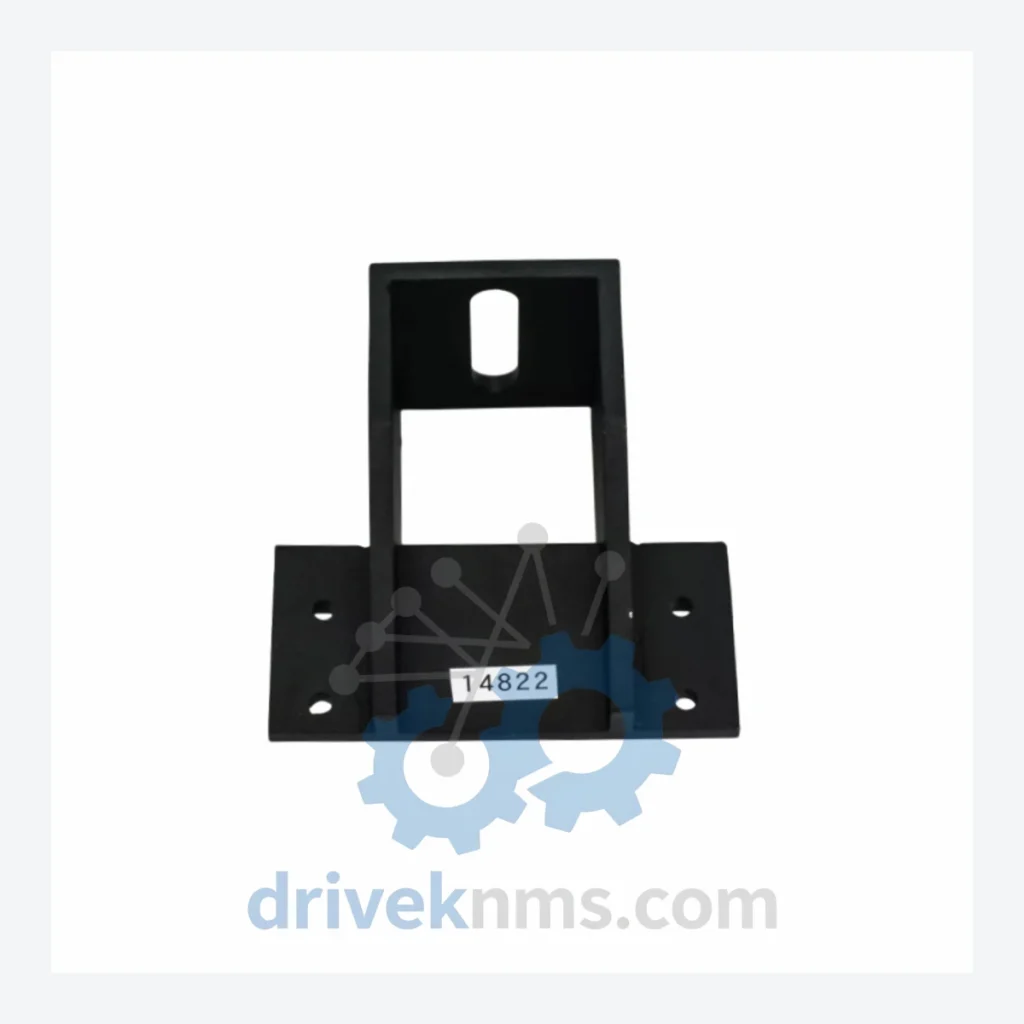

0040-35582 DCS80-13EM1M52 3D86-001956-12: Blower mount assembly for HTF EPI chamber; structural and airflow management subassembly.
0040-09828: Blower assembly, HTF EPI; primary forced-air cooling unit for process module thermal control.
0040-76038: Motor blower assembly, EPI chamber; replacement drive unit for DCS80 cooling loop.
0040-35581: Blower mount HTF EPI, alternate revision; compatible with DCS80-13 chamber configurations.
0040-22324: Fan assembly, process module; secondary airflow management for DCS80 thermal subsystem.
3D86-001956-00: Blower mount base revision; early ECO level, compatible with pre-DCS80-13 chamber builds.
3D86-001956-06: Blower mount mid-revision; intermediate ECO level with updated bracket geometry.
0040-35580: HTF EPI blower bracket; structural support component for blower mount stack.
0040-09829: Blower motor, 24VDC; direct replacement motor for DCS80 EPI cooling assemblies.
0040-76039: Blower housing assembly; enclosure for DCS80 blower unit, HTF platform.
0040-22325: Airflow baffle, EPI process module; directs cooling airflow across DCS80 thermal zones.
0040-35583: Blower mount HTF EPI, high-revision; updated ECO level for later DCS80-13EM1M52 builds.
0040-09830: Blower capacitor assembly; electrical start/run capacitor for DCS80 blower motor circuit.
0040-76040: Blower mount gasket kit, EPI; sealing components for DCS80 blower mount interface.
0040-22326: Thermal sensor bracket, DCS80; mounting hardware for process temperature sensors in HTF EPI chamber.
0040-35584: Blower mount HTF EPI, service kit; includes fasteners, gaskets, and alignment pins for DCS80-13 series.
3D86-002100-00: Blower mount assembly, next-generation DCS80; updated design for higher-temperature EPI process compatibility.

Sourcing Hard-to-Find & Obsolete DCS80 Parts

The majority of DCS80-series blower mount and HTF EPI subassemblies have been discontinued by Applied Materials as the OEM transitions support focus to current-generation platforms. DriveKNMS maintains a dedicated inventory of new-surplus, refurbished, and tested-functional DCS80 components sourced from decommissioned tool sets, controlled fab buybacks, and authorized distributor excess stock.

For EOL part numbers — including all 3D86-001956 revision levels and associated 0040-35582 assemblies — DriveKNMS provides: verified cross-reference matching against tool BOM revisions; functional testing prior to shipment; documentation of test results and revision level; and long-term lifecycle support agreements for fabs requiring multi-year maintenance coverage. Customers operating legacy HTF EPI tools beyond OEM support windows are advised to establish buffer stock agreements to mitigate unplanned downtime risk.

Quality Control for the DCS80 Range

DCS80 blower mount and thermal management assemblies undergo a structured inspection and functional verification protocol at DriveKNMS prior to dispatch. Each unit is subject to: visual inspection for mechanical damage, corrosion, and fastener integrity; dimensional verification of mounting interfaces against OEM drawings; electrical continuity and insulation resistance testing for motor and capacitor subassemblies; dynamic run test for blower motor units (RPM verification, current draw, vibration signature); and thermal imaging for assemblies with embedded heater or sensor elements.

All tested units are assigned a unique inspection record number and shipped with a test report. Units that do not meet OEM-equivalent performance thresholds are quarantined and not offered for sale. This protocol is specifically designed to address the failure modes common to DCS80-series components: bearing wear in blower motors, bracket fatigue cracking, and gasket compression set in high-cycle EPI environments.
