Applied Materials 0041-30416 Hoop Lift Assembly – Obsolete Centura Spare Part

Technical Dossier

Product Details And Specifications

Applied Materials 0041-30416 Hoop Lift Assembly – Obsolete Centura Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

The Applied Materials Centura platform was the dominant 200mm process tool for CVD, PVD, and etch applications throughout the 1990s and 2000s. Thousands of units remain in active production service at fabs across Asia, the Middle East, and Eastern Europe — facilities where the economics of a full platform migration do not justify the capital expenditure, particularly for mature-node or specialty process flows.

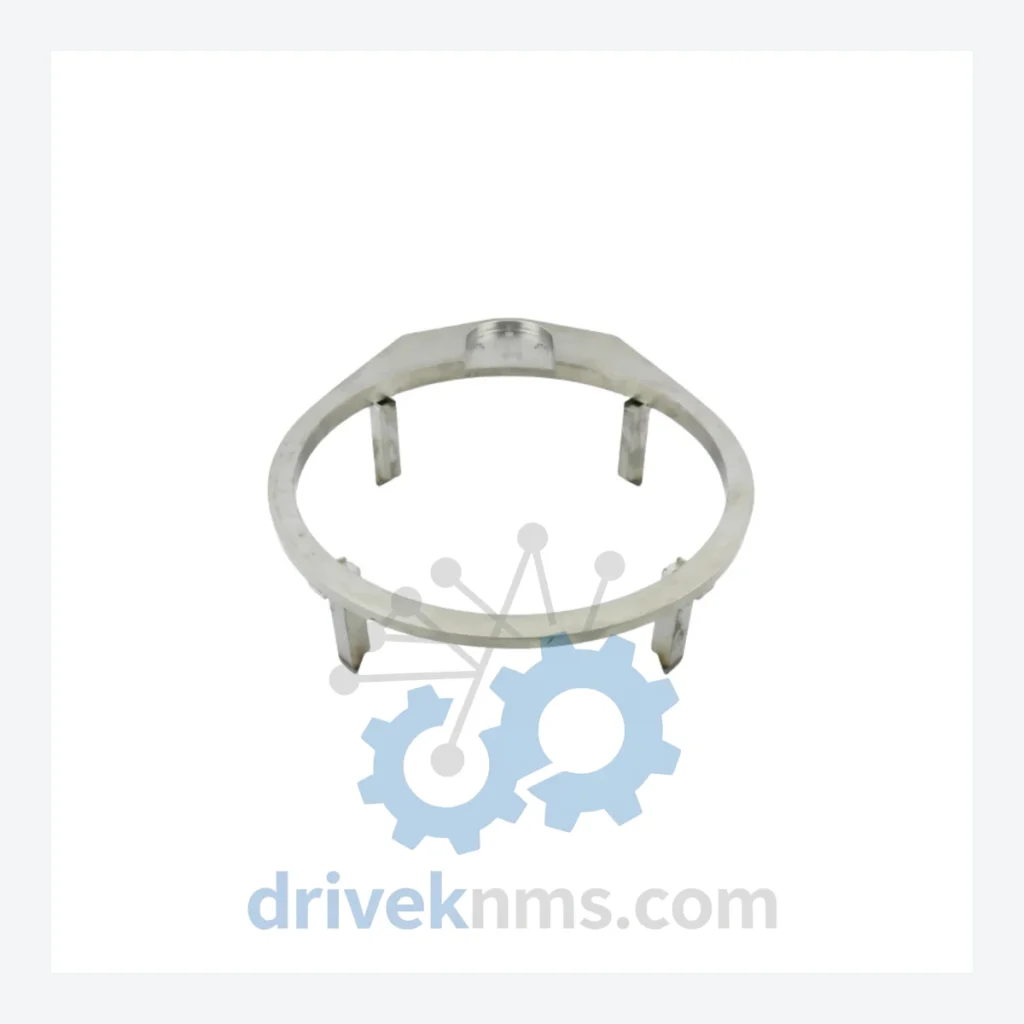

The Hoop Lift assembly is a precision mechanical component responsible for wafer transfer and positioning within the process chamber. Its failure mode is not gradual — it is typically abrupt, resulting in immediate tool lockout. Because this assembly interfaces directly with the robot transfer system and the chamber environment, there is no field-improvised workaround. The tool is down until the part is replaced.

Condition & Reliability Assurance

Obsolete mechanical and electromechanical assemblies sourced outside the OEM channel require a structured inspection protocol before installation in a process-critical tool. DriveKNMS applies a 5-step qualification process to all refurbished units:

Step 1 – Dimensional and Mechanical Inspection: All lift mechanism components are measured against OEM drawings. Worn bearing surfaces, deformed lift pins, and out-of-tolerance travel ranges are cause for rejection.

Step 2 – Corrosion and Contamination Assessment: Pin contacts, mounting interfaces, and any exposed metal surfaces are inspected for oxidation, process chemical residue, and particulate contamination. Parts with evidence of chamber exposure beyond acceptable limits are not refurbished for resale.

Step 3 – Electromechanical Functional Test: Where applicable, actuator and sensor sub-components are bench-tested for correct operation across the full travel range.

Step 4 – Firmware and Revision Verification: Assembly revision level is confirmed against the customer's tool configuration to ensure compatibility. Mixed-revision assemblies are flagged before dispatch review.

Step 5 – Packaging for Long-Term Storage: Units are cleaned, bagged in ESD-safe and moisture-barrier packaging, and stored in a controlled environment. Each unit ships with a condition report and inspection record.

Key Features for System Maintenance

The 0041-30416 Hoop Lift Assembly is a direct mechanical replacement for the original OEM unit. Installation does not require chamber reconfiguration, robot re-teaching beyond standard post-maintenance verification, or process recipe modification. This is a drop-in replacement in the engineering sense: the mounting interface, travel specification, and control signal compatibility are identical to the original.

Avoiding a platform upgrade preserves the process qualification history associated with the tool. Re-qualifying a new platform for a mature-node process — particularly in compound semiconductor, MEMS, or specialty analog applications — is not a trivial exercise. The engineering hours, wafer consumption, and schedule risk of a qualification campaign represent a cost that is difficult to justify when the existing tool can be maintained with verified spare parts. The 0041-30416 assembly is one of the components that makes continued operation of the Centura platform a defensible engineering and financial decision.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How do I confirm the part is new or Grade A refurbished — not a worn-out pull?
Every unit shipped by DriveKNMS is accompanied by a condition report generated during our 5-step inspection process. We do not ship parts that fail inspection criteria. If you require photographic documentation of the specific unit prior to purchase, we provide this as standard practice for high-value assemblies.
