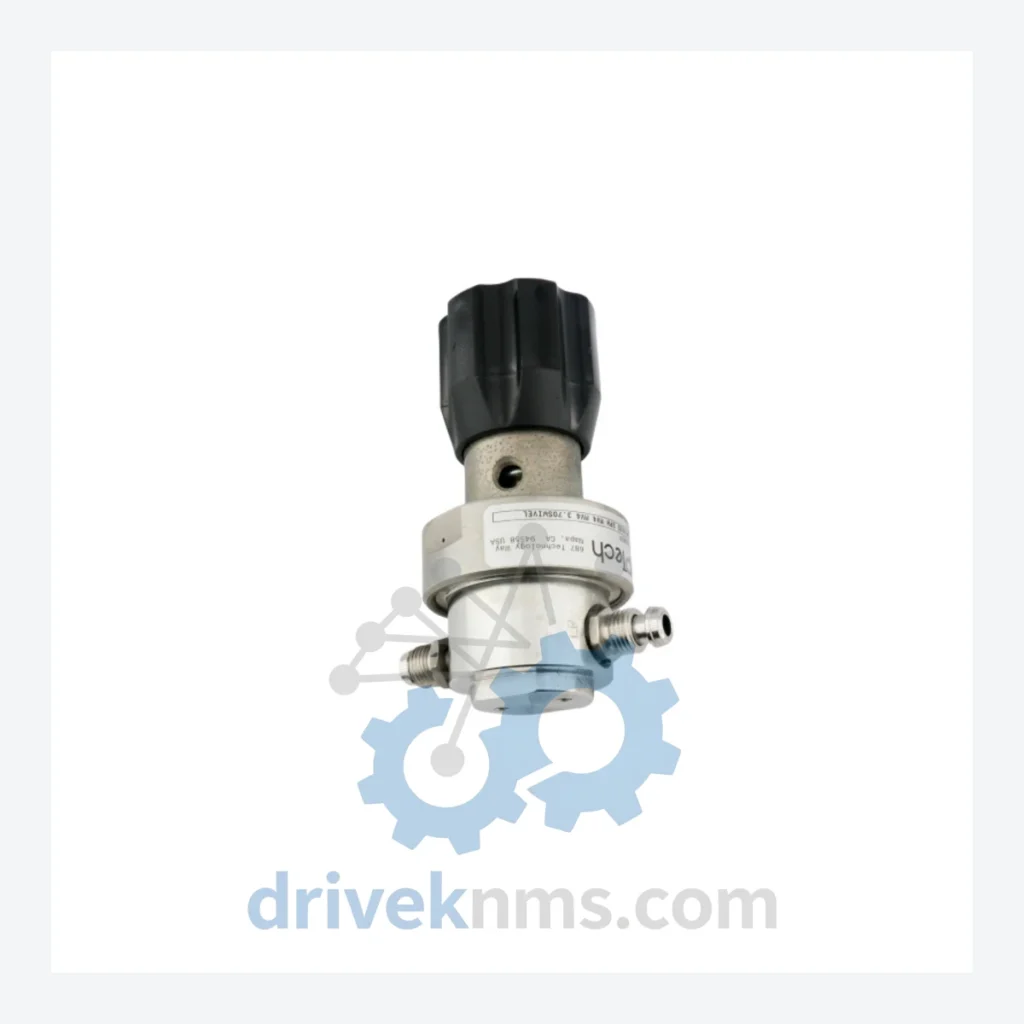

APTECH AP1406TSM 2PW MV4 MVE4 P Pressure Regulator – Obsolete AP14 Series Spare Part

Technical Dossier

Product Details And Specifications

APTECH AP1406TSM 2PW MV4 MVE4 P Pressure Regulator – Obsolete AP14 Series Spare Part

When an APTECH AP1406TSM pressure regulator fails in a legacy process control or semiconductor fabrication system, the consequences extend far beyond the cost of the part itself. A single unplanned shutdown can cascade into days of lost production. If the original equipment manufacturer no longer supports the AP14 series, the path of least resistance — a full system upgrade — carries engineering costs, revalidation expenses, and production downtime that routinely exceed seven figures. DriveKNMS maintains verified stock of this discontinued regulator specifically to give plant engineers and procurement managers a credible alternative: replace the failed component, restore operation, and defer a capital-intensive system overhaul on your own schedule.

The AP1406TSM, paired with the AP1402TS in this dual-regulator configuration (P/N 63039620193, 7030_02), was designed for precision gas pressure control in high-purity process environments. Its discontinuation does not reduce its operational value — it increases the urgency of securing verified replacement units before secondary market supply is exhausted.

Technical Specifications

Note: Electrical and dimensional parameters are not published for this configuration. DriveKNMS does not fabricate or estimate specifications. Verified datasheets available upon request where documentation exists.

Solving the Discontinued Hardware Crisis

The AP14 series regulators were widely deployed in semiconductor wafer fabrication lines, specialty chemical delivery systems, and high-purity gas panels — environments where process consistency is non-negotiable and where the installed base of supporting infrastructure represents decades of capital investment. APTECH's discontinuation of this series left a significant installed base without a factory-supported upgrade path.

The core problem facing maintenance engineers is not the regulator itself — it is the system architecture built around it. Replacing an AP1406TSM with a modern equivalent is not a drop-in exercise. Fitting dimensions, port configurations, flow coefficients, and material compatibility with process gases must all be re-verified. In a cleanroom or hazardous gas environment, that re-verification process involves safety reviews, process qualification runs, and regulatory documentation that can take months and cost more than the original system installation.

Sourcing a verified AP1406TSM from secondary market inventory eliminates that entire re-qualification burden. The system continues to operate within its validated parameters. Maintenance records remain unbroken. The capital expenditure case for a full system replacement — which management may be pressuring engineering teams to justify — loses its urgency.

For facilities running APTECH AP14-series gas panels alongside legacy process controllers from manufacturers such as MKS Instruments, Brooks Instrument, or integrated into older Honeywell or Yokogawa DCS architectures, maintaining a buffer stock of critical regulators is a straightforward risk management decision. The cost of one verified spare is a fraction of one hour of unplanned downtime in a high-value process environment.

Extending Automation Asset Life by 5–10 Years: A Practical Framework

Plant managers facing pressure to retire legacy systems often operate under a false assumption: that discontinuation of a component equals end-of-life for the system. In practice, a disciplined spare parts strategy can extend the productive life of a well-maintained process system by five to ten years at a fraction of the cost of replacement capital.

The framework is straightforward. First, conduct a criticality audit — identify every component in the system that is either discontinued or approaching end-of-manufacturer-support. Second, establish minimum stock levels for each critical item based on mean time between failures and lead time from secondary market sources. Third, implement a scheduled inspection protocol for high-wear components, particularly those involving seals, diaphragms, and precision orifices in pressure regulators. Fourth, document all maintenance interventions with part traceability records to preserve system validation status. Fifth, engage a specialist supplier — not a general distributor — who can verify part authenticity and condition before shipment.

This approach converts an unpredictable failure risk into a managed maintenance program. For a facility operating a process line with a replacement cost in the millions, the investment in a structured obsolete-parts inventory is not a cost — it is an insurance policy with a calculable return.

Condition & Reliability Assurance

DriveKNMS applies a five-step quality assurance process to all obsolete and hard-to-find components before shipment.

Step 1 – Visual and Mechanical Inspection: Each unit is examined for physical damage, port thread integrity, body corrosion, and seal condition. Units with compromised wetted surfaces are rejected.

Step 2 – Electrolytic Capacitor Assessment (where applicable): For units with integrated electronics or solenoid actuation, capacitor condition is evaluated for signs of aging, bulging, or electrolyte leakage.

Step 3 – Firmware and Configuration Verification: Where the unit carries programmable or configurable elements, version and configuration state are documented and reported to the buyer.

Step 4 – Pin and Connector Corrosion Check: All electrical connectors and signal pins are inspected under magnification for oxidation, fretting corrosion, and contact integrity.

Step 5 – Traceability Documentation: Each unit ships with a condition report, inspection record, and available original documentation. Buyers receive full visibility into the unit's assessed state before installation.

DriveKNMS does not misrepresent condition grades. Units are classified as New (sealed original packaging), Surplus New (unused, removed from storage), or Refurbished (tested, restored to functional specification) — and priced accordingly.

Key Features for System Maintenance

• Drop-in replacement: The AP1406TSM retains the original port configuration and mounting footprint of the AP14 series, eliminating the need for mechanical modification to existing gas panel assemblies.
• No reprogramming required: This is a mechanical/pneumatic regulator assembly. Replacement does not trigger software reconfiguration or process controller re-parameterization.
• Avoids engineering re-qualification: Installing a like-for-like replacement preserves the system's validated operating envelope. No new process qualification runs are required.
• Preserves maintenance history continuity: Regulatory and quality management frameworks (ISO, SEMI standards) benefit from unbroken maintenance records. A direct replacement supports that continuity; a system redesign does not.
• Immediate dispatch: Subject to stock confirmation, units are prepared for same-week shipment to minimize production downtime.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on surplus new units. Warranty terms cover verified functional failure under normal operating conditions and are documented in the sales agreement.

How do I confirm the unit is genuine and not counterfeit?
All APTECH units sourced by DriveKNMS are inspected against known-good reference units for markings, material finish, and dimensional conformance. Traceability documentation is provided with each shipment. We do not source from unverified brokers.

Should I buy more than one unit?
For any discontinued component installed in a production-critical system, holding a minimum of two spare units is standard risk management practice. Secondary market availability for AP14-series components is finite and declining. Once current stock is exhausted, lead times for sourcing additional units become unpredictable. Buyers who establish a buffer stock now avoid emergency procurement situations later.

Can DriveKNMS source other AP14-series components?
Yes. Contact our team with your full bill of materials for AP14-series components. We maintain a network of verified secondary market sources and can advise on availability and lead times for related regulators, fittings, and accessories.
