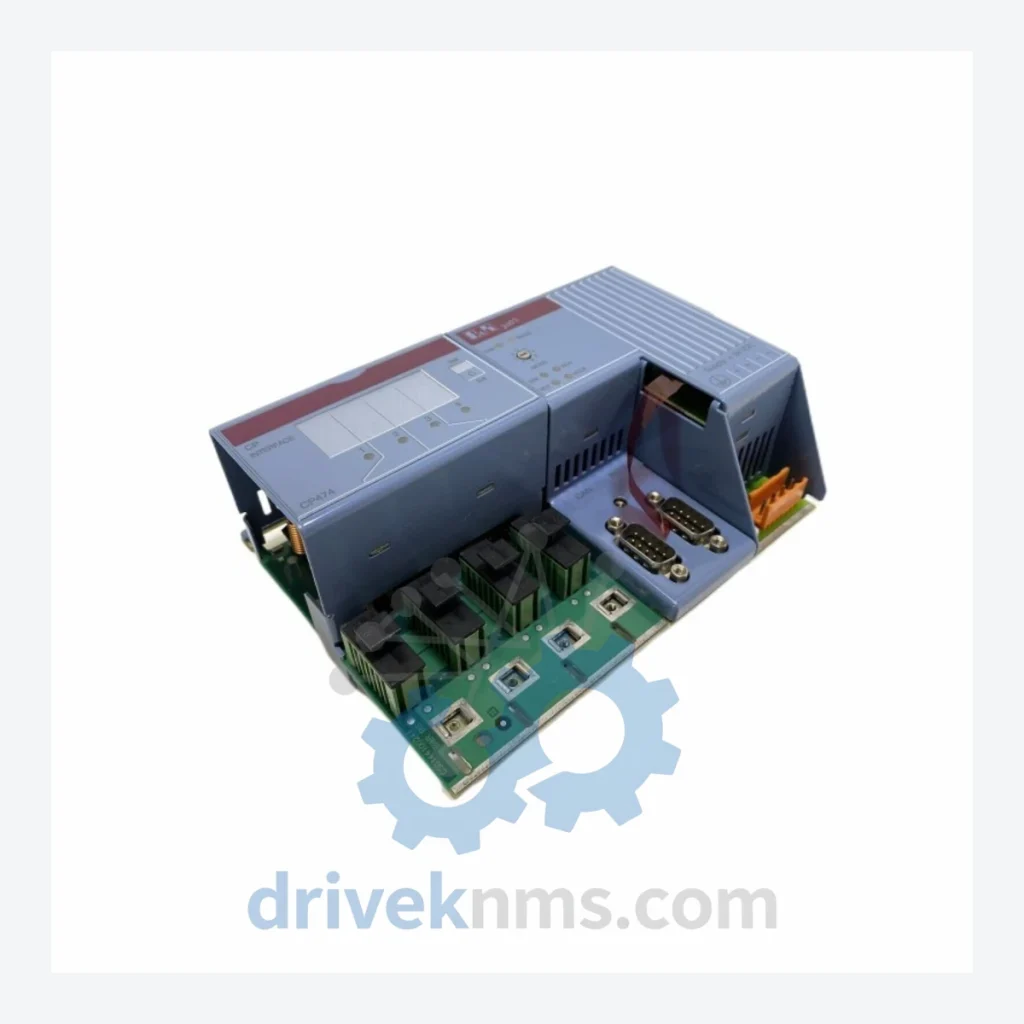

B&R 7CP476.60-1 CPU Module – Obsolete 2005 Series Spare Part

Technical Dossier

Product Details And Specifications

B&R 7CP476.60-1 CPU Module – Obsolete 2005 Series Spare Part

When a B&R 7CP476.60-1 CPU module fails on the production floor, the clock starts immediately. A full control system migration on a B&R 2005-series platform — including engineering hours, new hardware procurement, software re-commissioning, and production downtime — routinely exceeds $500,000 USD for a mid-scale manufacturing line. In many process industries, the figure is higher. The 7CP476.60-1 is a discontinued central processor interface module. B&R no longer manufactures or supports it. Sourcing a verified replacement unit is the only path that avoids that capital expenditure. DriveKNMS maintains physical stock of this module for facilities that cannot afford to wait.

Technical Specifications

Note: Electrical parameters (supply voltage, cycle time, memory specifications) are not published here to prevent inaccurate data from being used in safety-critical applications. Verified datasheet available upon request.

Solving the Discontinued Hardware Crisis

The B&R 2005 platform was deployed extensively in automotive body shops, food processing lines, plastics injection molding, and paper mill control systems throughout the 1990s and early 2000s. Many of these installations remain operational today because the underlying process logic — developed over years of tuning — represents an engineering asset that cannot be replicated cheaply in a modern PLC environment.

The 7CP476.60-1 sits at the center of that architecture. It manages the communication interface between the central processor and the I/O bus. When this module degrades or fails, the entire rack loses coherence. There is no software workaround. The choice facing plant management is binary: source a replacement module, or commit to a full system migration.

For facilities operating on five-to-ten-year capital planning cycles, a forced migration outside that window is a budget crisis. A single verified 7CP476.60-1 unit — held as a cold spare — eliminates that risk entirely. The cost of the spare is measured in hundreds of dollars. The cost of an unplanned migration is measured in hundreds of thousands.

How to extend your B&R 2005 system life by 5–10 years:

• Maintain a minimum of two CPU module spares per production line. The 7CP476.60-1 is the single highest-risk component in the rack due to its central role and zero OEM availability.
• Conduct annual firmware version audits. Mismatched firmware between a replacement CPU module and existing I/O modules is the leading cause of post-swap commissioning failures on legacy B&R systems.
• Establish a scheduled capacitor inspection cycle every 36 months. Electrolytic capacitors on boards of this age are the primary failure mechanism — not the logic circuits themselves.
• Document your current rack configuration, slot assignments, and I/O mapping before any maintenance window. This documentation becomes critical if a replacement module requires parameter re-entry.
• Source spares from suppliers who can provide traceability documentation. Counterfeit and re-marked modules exist in the secondary market for high-demand obsolete B&R parts.

Condition & Reliability Assurance

DriveKNMS applies a five-stage quality process to all obsolete CPU modules before shipment:

• Step 1 – Visual Inspection: Full board examination under magnification. Pin corrosion, solder joint cracking, and physical damage are documented and assessed against acceptance criteria.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are tested for ESR (equivalent series resistance) and capacitance drift. Boards with out-of-tolerance capacitors are flagged for component-level rework before release.
• Step 3 – Firmware Version Verification: The firmware revision on the module is identified and recorded. Customers are advised of the version prior to shipment to confirm compatibility with their existing rack configuration.
• Step 4 – Functional Power-On Test: Where test fixtures are available for the 7CP476.60-1, the module is powered and basic communication integrity is verified.
• Step 5 – Anti-Static Packaging & Documentation: The module is sealed in ESD-safe packaging with a condition report. New (sealed OEM) and refurbished units are clearly differentiated in all documentation.

Key Features for System Maintenance

• Drop-in replacement: The 7CP476.60-1 installs directly into the existing B&R 2005 rack slot. No mechanical modification required.
• No re-programming of application logic: The CPU module does not store the user application program in a way that requires re-development. Parameter re-entry may be required depending on firmware version — confirmed prior to shipment.
• Avoids engineering reconstruction costs: Replacing this module preserves the existing I/O wiring, field device calibration, and process tuning. A system migration would require re-engineering all of these elements from scratch.
• Immediate dispatch: Stock on hand. No lead time associated with OEM manufacturing queues.

FAQ

What warranty applies to an obsolete module like the 7CP476.60-1?
DriveKNMS provides a 90-day warranty against DOA (dead on arrival) and functional failure under normal operating conditions. Extended warranty terms are available for volume orders — contact us to discuss.

How do I know the unit is genuine and not a counterfeit?
We source from decommissioned OEM equipment, authorized secondary distributors, and factory-surplus channels. Each unit carries a condition report. We do not re-mark or alter part numbers. Traceability documentation is available upon request.

Should I buy more than one unit?
For any production line where the B&R 2005 system is critical-path, holding a minimum of two 7CP476.60-1 units is the standard recommendation. The OEM supply chain for this part is permanently closed. Once current secondary market stock is exhausted globally, no further units will be available at any price.

Can you ship internationally?
Yes. DriveKNMS ships worldwide with full export documentation. DHL Express and FedEx International Priority are standard options.
