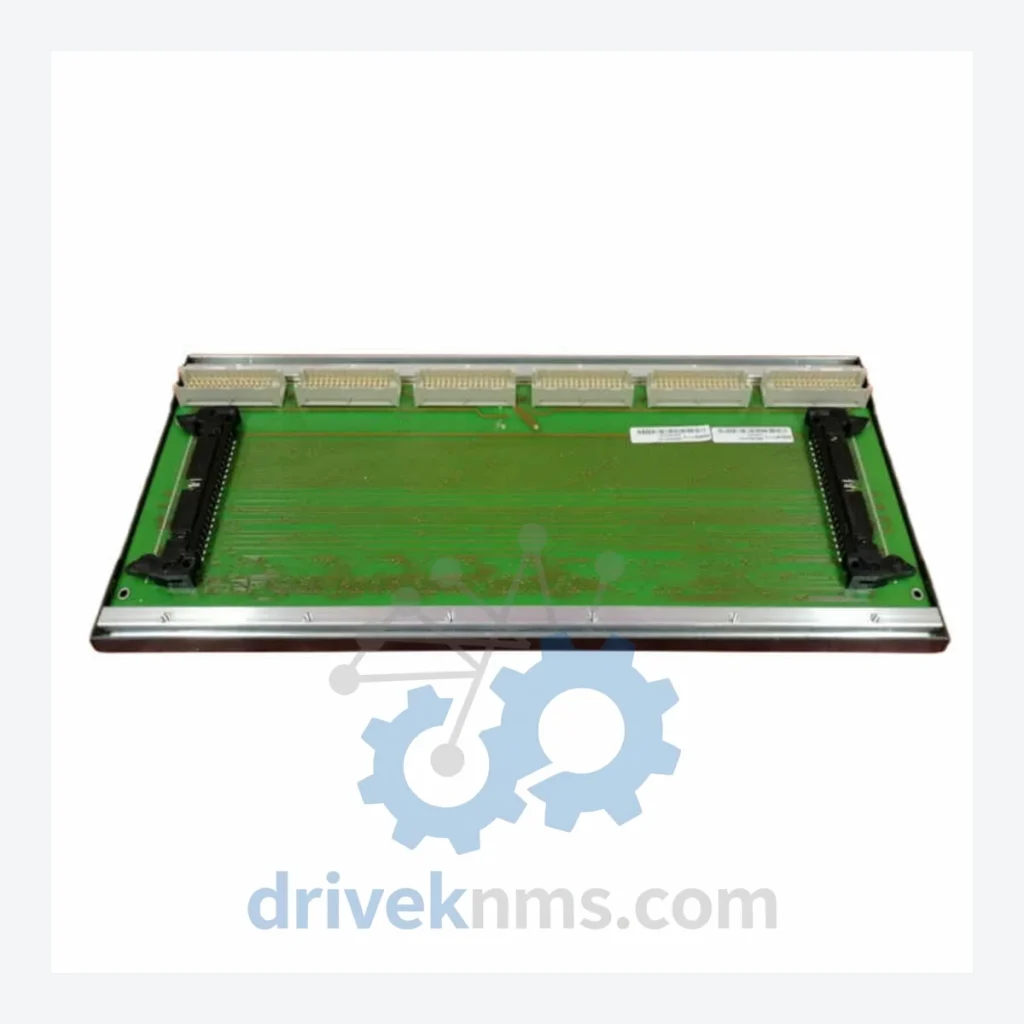

Bachmann BS206 Backplane Module – Critical M1 System Spare Part

When a backplane module fails inside a Bachmann M1 automation system, the consequences extend far beyond a single component. The BS206 is the structural and electrical backbone of the M1 rack: every I/O module, every CPU card, and every communication interface depends on it for power distribution and signal routing. A failed backplane does not produce a degraded system — it produces a stopped line. For process industries, discrete manufacturing, and infrastructure operators running Bachmann M1 or MPC-based control architectures, sourcing a verified replacement BS206 is not a procurement exercise. It is an operational emergency.

Technical Specifications

Note: Electrical parameters (slot count, bus voltage, current ratings) vary by rack configuration. Confirmed specifications are provided upon request with your system documentation.

Solving the Critical Hardware Supply Problem

The BS206 backplane sits at the intersection of two risks. First, it is a passive component — it does not fail often, so most facilities carry zero spares. Second, when it does fail, nothing in the rack functions. There is no partial degradation mode. The result is that a component costing a fraction of the rack's total value becomes the single point of failure that determines whether the line runs or stands idle.

Extending Automation Asset Life by 5–10 Years: A Practical Strategy

Plant managers facing pressure to migrate away from legacy Bachmann M1 systems frequently encounter the same financial reality: the capital expenditure required for a full platform replacement, including new hardware, software re-engineering, operator retraining, and validation, is rarely approved in a single budget cycle. The practical alternative is a structured asset extension program built around verified spare parts availability.

The core principle is straightforward. A Bachmann M1 system that is mechanically and electrically sound, with a confirmed spare parts supply chain for its highest-risk components, can continue operating reliably for an additional 5–10 years beyond its original design horizon. The investment required is a fraction of replacement cost. The components that define this risk profile are not the CPU cards or I/O modules — those are typically available through multiple channels. The risk components are the structural elements: backplanes, rack frames, and power supply modules. The BS206 belongs in this category.

Condition & Reliability Assurance

Every BS206 unit processed by DriveKNMS passes a structured five-stage inspection before it is offered for sale:

• Visual and mechanical inspection: Rack connector pins, PCB surface, and housing integrity are examined for physical damage, corrosion, and deformation.
• Connector contact verification: All backplane bus contacts are checked for oxidation, pin recession, and contact resistance.
• Cleaning and surface treatment: Boards are cleaned to IPC standards. Corroded contacts are treated and re-tested.
• Functional bench test: Where test fixtures permit, the backplane is tested under load conditions representative of M1 rack operation.
• Documentation and traceability: Each unit is logged with inspection records. Condition grade (New or Tested Refurbished) is declared on the invoice.

We do not sell units that fail any stage of this process. Condition is stated accurately. If a unit is refurbished, that is disclosed — not obscured.

Key Features for System Maintenance

• Drop-in replacement: The BS206 installs directly into the existing Bachmann M1 rack without mechanical modification.
• No re-programming required: The backplane carries no firmware or configuration data. Replacing it does not require re-commissioning the CPU or re-loading application software.
• No engineering redesign: Unlike a platform migration, a backplane replacement keeps the existing control architecture intact. Operator procedures, HMI screens, and process interlocks are unaffected.
• Immediate operational restoration: With a verified spare on hand, mean time to repair for a backplane failure is measured in hours, not weeks.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Can you supply other Bachmann M1 components?
Yes. DriveKNMS maintains inventory across the Bachmann M1 product range. Contact us with your full bill of materials for a consolidated availability check.
