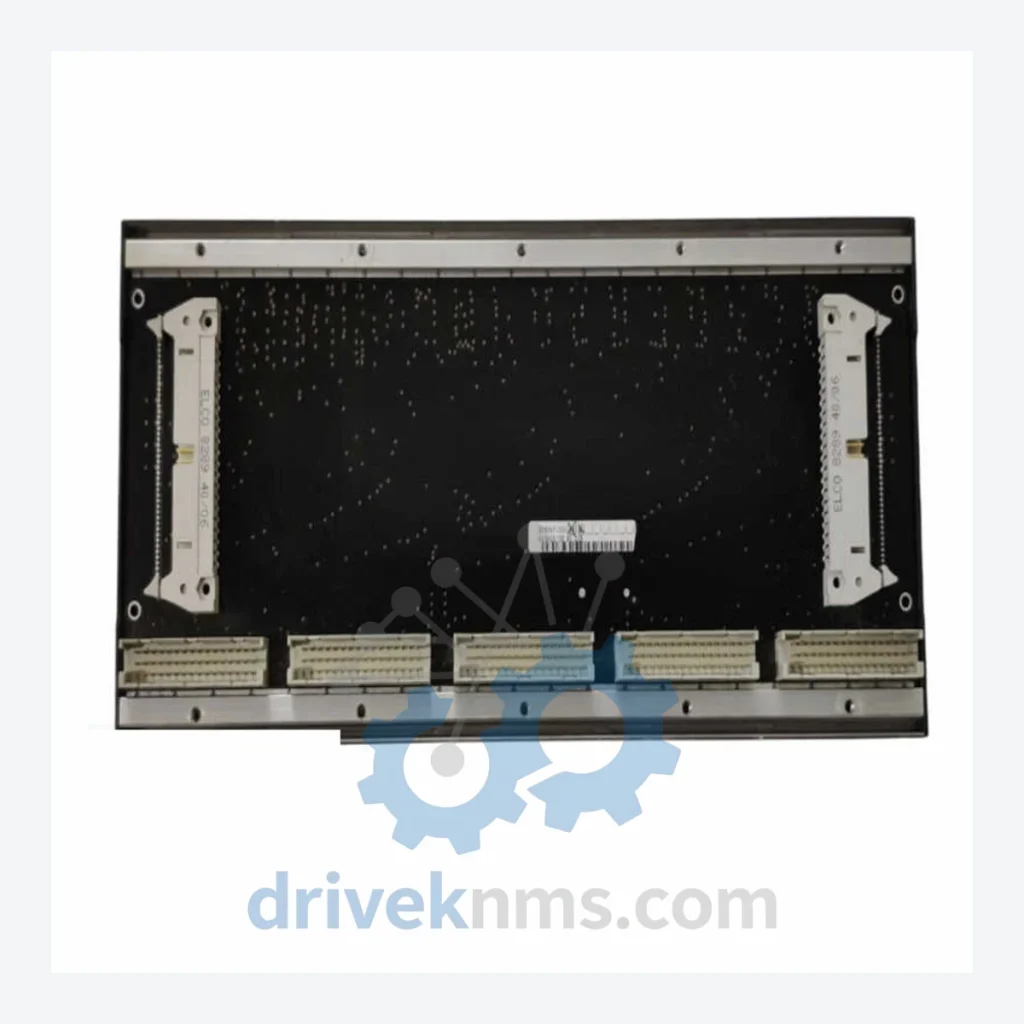

Bachmann BS209 Backplane – Obsolete B-Series Spare Part

When a backplane fails in a legacy Bachmann B-Series control system, the consequences extend far beyond a single module replacement. A forced migration to a current-generation platform typically involves hardware procurement, software re-engineering, loop re-commissioning, and production downtime that collectively run into the hundreds of thousands — or millions — of dollars. The Bachmann BS209 backplane is a structural backbone of these older distributed control architectures, and its discontinuation has left many facilities with no straightforward upgrade path. DriveKNMS maintains verified stock of the BS209 specifically to serve facilities that have made the deliberate, financially sound decision to extend the operational life of their existing infrastructure rather than absorb the cost of a full system replacement.

Technical Specifications

Note: Electrical parameters not independently verified. Buyers are advised to cross-reference against original Bachmann system documentation. DriveKNMS does not publish unverified specifications.

Solving the Discontinued Hardware Crisis

The Bachmann B-Series platform was deployed extensively across European and Asian industrial automation projects through the 1990s and 2000s. The BS209 backplane serves as the passive interconnect bus that allows CPU, I/O, and communication modules to exchange data within the rack. Without a functioning backplane, the entire rack — and every module seated in it — is rendered inoperable.

Because the B-Series uses a proprietary bus architecture, there is no generic substitute. A failed BS209 cannot be replaced with a third-party equivalent. The only options are: source an original BS209, or retire the entire control system. For facilities running continuous processes — chemical, pharmaceutical, power generation, water treatment — the second option is not a decision that can be made in days or weeks. It requires capital approval cycles, engineering studies, and scheduled shutdowns that may be 12 to 36 months away.

This is the operational reality that makes a verified BS209 spare a risk management asset, not a commodity purchase. Facilities that carry one or two units in strategic reserve eliminate the single-point-of-failure risk that the discontinuation of this part creates. The cost of holding a spare backplane is a fraction of one day of unplanned downtime on a production line that depends on it.

How to extend your Bachmann B-Series system life by 5–10 years:

• Audit your installed base now. Identify every BS209 in service and its current condition. Backplanes in continuous-duty environments accumulate thermal stress over time. A proactive inspection is cheaper than an emergency replacement.
• Establish a minimum spare holding. For critical lines, a minimum of one spare backplane per rack configuration is a defensible maintenance standard. For facilities with multiple identical racks, pooled spares reduce per-unit cost.
• Pair with a firmware and configuration archive. A replacement backplane is only useful if the CPU and I/O modules that seat into it are also functional and correctly configured. Maintain offline backups of all rack configurations.
• Schedule condition-based inspections. Backplane bus connectors and PCB traces degrade with age and thermal cycling. Annual visual inspection for oxidation, cracking, or connector wear extends service intervals and prevents latent failures.
• Negotiate a long-term supply agreement. If your facility operates multiple B-Series racks, contact DriveKNMS to discuss reserved stock arrangements. Securing supply now, before market availability further contracts, is a straightforward cost-avoidance measure.

Condition & Reliability Assurance

Every BS209 unit processed by DriveKNMS goes through a structured 5-step evaluation before it is offered for sale. This protocol is designed specifically for obsolete hardware, where age-related degradation — not manufacturing defect — is the primary failure mode.

1. Electrolytic Capacitor Assessment: Capacitors on backplane power conditioning circuits are inspected for bulging, leakage, and ESR drift. Units with degraded capacitors are either recapped with equivalent-spec components or removed from saleable inventory.
2. Firmware Version Verification: Where applicable, onboard firmware or EEPROM content is verified against known-good references to confirm the unit has not been subject to unauthorized modification.
3. Pin and Connector Inspection: All bus connector pins are examined under magnification for corrosion, bending, and contact surface wear. Corroded contacts are treated or the unit is downgraded.
4. PCB Trace and Solder Joint Inspection: Board surfaces are inspected for cracked traces, cold solder joints, and evidence of prior repair. Any rework is documented.
5. Functional Verification: Where test fixtures permit, units are powered and bus communication is verified prior to shipment.

Units that do not pass all five stages are not sold as functional spares. Condition grade is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The BS209 is a direct physical and electrical substitute for the original installed unit. No rack modification is required.
• No reprogramming required: The backplane is a passive bus component. Replacing it does not require CPU re-flashing, I/O reconfiguration, or any software intervention on the control system.
• Avoids engineering reconstruction costs: Sourcing an original BS209 eliminates the need to engage a systems integrator for a platform migration. The cost differential between a spare backplane and a migration project is not marginal — it is structural.
• Maintains existing safety certifications: Replacing a like-for-like component within a validated or certified control system does not trigger re-validation in most regulatory frameworks, unlike a platform change.

FAQ

What warranty applies to an obsolete part like the BS209?
DriveKNMS provides a 90-day warranty against functional failure on all refurbished units, and a 180-day warranty on verified New Old Stock units. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through documented industrial decommissioning channels or authorized distributor closeouts. Physical markings, PCB revision codes, and component dating are cross-referenced against known-authentic references. We do not source from unverified secondary markets.

Should I buy more than one unit?
For any facility where the BS209 is installed in a production-critical rack, holding at least one spare is a minimum prudent standard. For facilities with three or more identical rack configurations, a pooled spare of two to three units is a reasonable long-term reserve. Market availability of this part will not improve over time.

Can you source additional units if I need more than you have in stock?
Contact us with your quantity requirement. DriveKNMS maintains sourcing relationships across multiple decommissioning networks and can often locate additional units for larger requirements.
