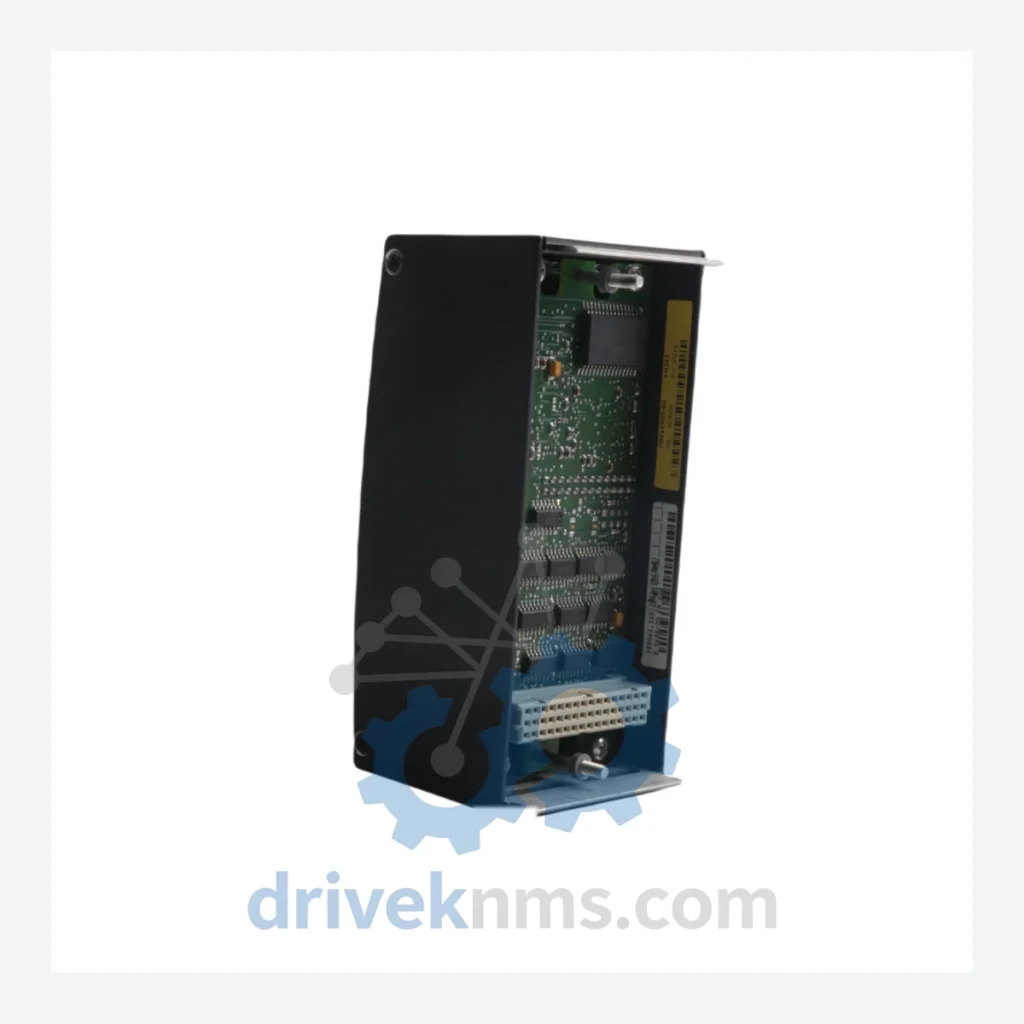

Bachmann CM202 CANopen Master Module – Obsolete M1 Series Spare Part

When a CANopen master module fails inside a Bachmann M1 automation system, the consequences extend far beyond a single line stoppage. The M1 platform is deeply embedded in power generation, renewable energy, and precision machine control applications worldwide. A single CM202 failure — without a verified replacement in stock — forces plant managers into an impossible calculation: source an obsolete module at any cost, or commit to a full system migration that routinely runs into the hundreds of thousands of dollars in engineering, commissioning, and lost production time. DriveKNMS maintains verified inventory of the Bachmann CM202 specifically to eliminate that calculation. This is not a commodity part. It is an asset protection instrument.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are drawn from publicly available Bachmann M1 system documentation. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The Bachmann M1 system established itself as a preferred controller platform in wind turbine nacelle control, hydroelectric plant automation, and high-precision test bench applications through the 2000s and 2010s. Its modular rack architecture — with the CM202 serving as the CANopen master that coordinates distributed I/O nodes, drives, and sensors across the CAN bus — made it a reliable backbone for complex, safety-relevant processes.

Bachmann has progressively shifted its product roadmap toward newer controller generations. The CM202 is no longer manufactured. For facilities still operating M1-based systems, this creates a structural maintenance risk: the moment a CM202 fails, there is no factory channel to replace it. The only options are the secondary market, cannibalizing other machines, or a full system redesign.

A full redesign of a Bachmann M1-based wind turbine controller or test bench is not a weekend project. It involves hardware replacement, software porting, safety re-certification, and extended commissioning downtime. Industry experience places such projects in the range of 6–18 months and significant capital expenditure. Against that backdrop, securing one or two CM202 spares represents a straightforward asset protection decision — not a cost, but an insurance policy on an existing capital investment.

How to extend your Bachmann M1 system life by 5–10 years through strategic spare parts management:

• Identify single points of failure. The CM202 is the sole CANopen master in most M1 rack configurations. There is no redundancy unless a spare is physically on-site. Audit your M1 racks and map every module with no available substitute.
• Establish a minimum stock level. For critical communication modules like the CM202, a minimum of one cold spare per operating system is the baseline. Facilities running multiple M1-based machines should consider a shared pool of two to three units.
• Document firmware versions before any swap. Bachmann M1 modules carry firmware that must match the CPU and project configuration. Before storing a spare, record the firmware version of the operational unit so any replacement can be verified for compatibility without a live system test.
• Negotiate long-term supply agreements. Secondary market inventory for obsolete Bachmann modules is finite and diminishing. Locking in supply now — before a failure event — avoids emergency procurement premiums that can reach 3–5× standard pricing.
• Defer system migration on your schedule, not the market's. With a verified spare in stock, the decision to migrate to a newer platform becomes a planned capital project, not a crisis response. That shift in control is worth more than the cost of the spare itself.

Condition & Reliability Assurance

Obsolete modules sourced from the secondary market carry inherent risk. DriveKNMS applies a structured 5-step quality process to every CM202 unit before it is offered for sale:

1. Visual and mechanical inspection. Full examination of the PCB, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure. Units with pin corrosion, burn marks, or compromised connectors are rejected at this stage.
2. Electrolytic capacitor assessment. Aged electrolytic capacitors are the most common failure mode in modules that have been in storage or light service for extended periods. Each unit is assessed for capacitor condition; units showing visible bulging, leakage, or measured capacitance deviation are flagged.
3. Firmware version verification. Where accessible, the firmware version is recorded and cross-referenced against known Bachmann M1 compatibility matrices. This information is disclosed to the buyer prior to shipment.
4. Functional power-on test. Where test infrastructure permits, units are powered and checked for basic initialization and communication response.
5. Final documentation and packaging. Each unit is individually packaged with anti-static protection, labeled with inspection date and condition grade, and accompanied by a test record.

Condition grades (New, Refurbished-Grade A, Tested-Used) are disclosed on each order confirmation. No unit is shipped without a completed inspection record.

Key Features for System Maintenance

• Drop-in replacement. The CM202 installs directly into the Bachmann M1 rack slot without mechanical modification. No new hardware mounting or rack reconfiguration is required.
• No reprogramming required. The CM202 operates under the existing M1 project configuration. Provided the firmware version is compatible, the replacement module loads the existing CANopen network configuration without engineering intervention.
• Avoids costly system redesign. Replacing a CM202 with a verified spare eliminates the need for controller platform migration, software porting, and safety re-certification — costs that routinely exceed the value of the original system.
• Preserves existing operator training investment. Keeping the M1 platform operational means operators continue working with familiar HMI and control logic. There is no retraining cost and no productivity loss during a learning curve.
• Supports phased migration planning. With a spare in stock, engineering teams can plan platform migration as a scheduled capital project rather than an emergency response, allowing proper budget allocation and risk management.

FAQ

What warranty applies to an obsolete CM202?
DriveKNMS provides a 90-day warranty against defects identified during our QA process on refurbished and tested-used units. New-in-box units carry a 180-day warranty. Warranty terms are confirmed in writing on the order confirmation.

How do I know the unit is genuine and not counterfeit?
All CM202 units are sourced from decommissioned Bachmann M1 systems or verified distributor overstock. Physical markings, PCB layout, and component profiles are cross-checked against known-good reference units. Suspected non-genuine units are rejected and not offered for sale.

Should I buy more than one spare?
For any facility operating a single M1 system with one CM202, one cold spare is the minimum prudent stock level. Facilities operating multiple M1 systems, or those where downtime cost exceeds USD 10,000 per hour, should evaluate holding two to three units. Secondary market supply for the CM202 is not replenishable — once current stock is exhausted, sourcing becomes significantly more difficult and expensive.

Can you source other Bachmann M1 modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find Bachmann M1 series components. Contact us with your full bill of materials for a consolidated sourcing assessment.
