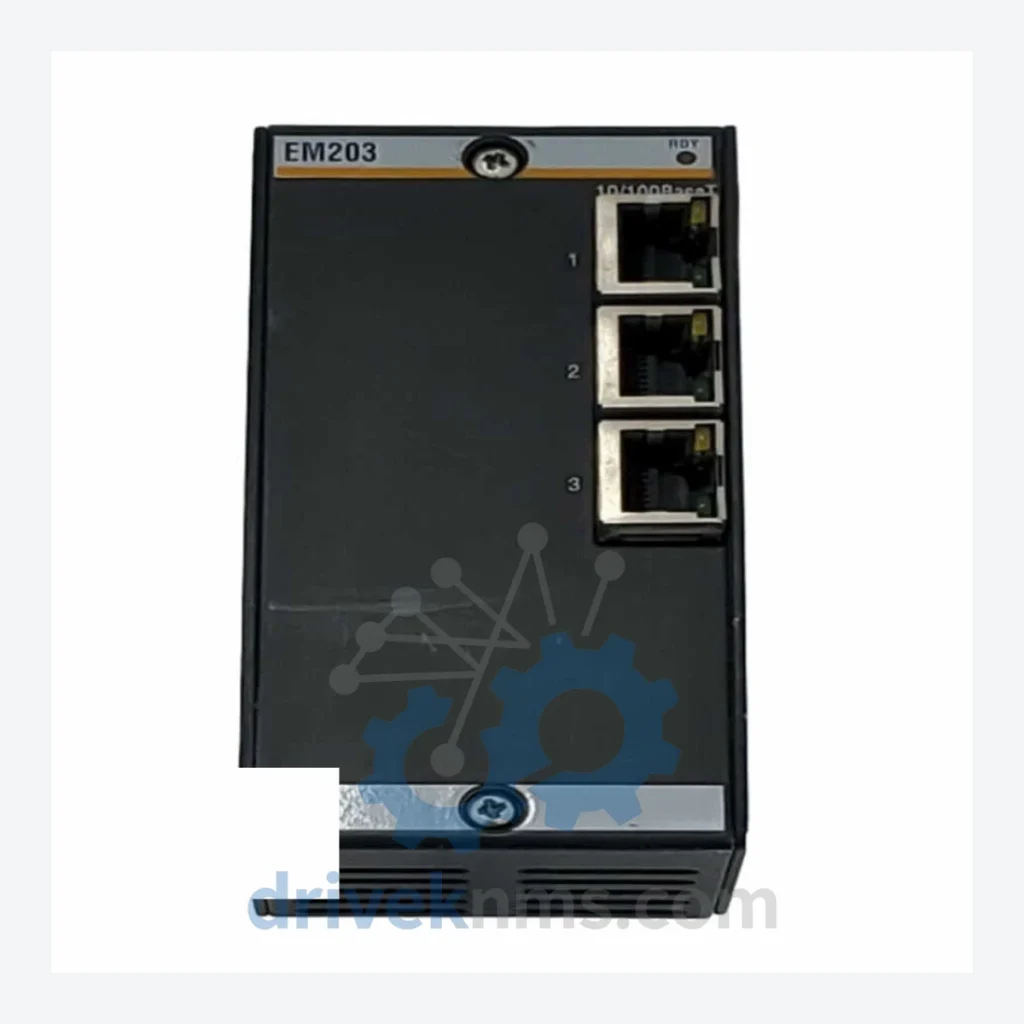

Bachmann EM203 Ethernet Master Module

Technical Dossier

Product Details And Specifications

Bachmann EM200 Series: Comprehensive Module Range and Technical Overview

The Bachmann EM200 series represents a core product line within Bachmann electronic's modular PLC and control system architecture, widely deployed across heavy industrial sectors including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. The EM200 family operates within Bachmann's M1 automation system, a distributed control platform engineered for high-availability environments where unplanned downtime carries significant operational and safety consequences. Installed base spans multiple continents, with particularly dense deployment in European process industries and Asian power generation infrastructure. The series is characterized by its deterministic real-time communication backbone, hot-swap capability on select modules, and compatibility with IEC 61131-3 programming environments.

The Evolution of EM200 Architecture

Bachmann electronic introduced the M1 controller platform in the mid-1990s as a response to demand for modular, rack-based automation in safety-critical industries. The EM200 communication module series was developed to extend the M1 backplane's connectivity beyond proprietary bus structures into open industrial Ethernet standards. Early iterations of the series focused on Modbus TCP and proprietary Bachmann protocols. Subsequent hardware revisions introduced PROFINET IO controller/device capability, EtherNet/IP adapter support, and IEC 61850 compliance for substation automation applications.

The EM203 specifically functions as an Ethernet master module, providing the M1 rack with a managed 10/100 Mbit/s Ethernet interface capable of handling real-time process data exchange. Later series members such as the EM213 and EM216 introduced dual-port configurations and enhanced diagnostic capabilities aligned with IEC 62443 cybersecurity requirements. Compatibility between EM200 series modules and M1 CPU generations (MPC240, MPC265, MPC270) has been maintained across hardware revisions, though firmware alignment between CPU and communication modules must be verified during system upgrades. Modules from early production runs (pre-2010) may require firmware bridging when integrated into racks running current MPC firmware stacks.

EM200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the Bachmann EM200 series and associated M1 platform modules. Each entry reflects a distinct hardware function within the M1 rack architecture.

EM203: Ethernet master module, 10/100 Mbit/s, Modbus TCP, real-time process data interface
EM206: Ethernet module with 6-port managed switch, PROFINET IO controller support
EM213: Dual-port Ethernet master, redundant network path management, IEC 61850 GOOSE
EM216: Ethernet module, 16-port configuration, high-density network segmentation
DI232: Digital input module, 32-channel, 24 VDC, M1 backplane compatible
DO232: Digital output module, 32-channel, 24 VDC transistor outputs
DIO248: Combined digital I/O module, 24 DI / 8 DO, configurable channel grouping
AI208: Analog input module, 8-channel, 4–20 mA / 0–10 V, 16-bit resolution
AO208: Analog output module, 8-channel, 4–20 mA / 0–10 V, galvanically isolated
AIO288: Mixed analog I/O module, 8 AI + 8 AO, single-slot form factor
CNT204: Counter/encoder module, 4-channel, incremental encoder input, 32-bit counter
ISI222: Serial interface module, 2-channel RS-232/RS-485, Modbus RTU master/slave
GMP232: Grid measurement and protection module, power quality analysis, IEC 61000
MPC240: CPU module, 400 MHz processor, M1 real-time OS, IEC 61131-3 runtime
MPC265: CPU module, enhanced processing, dual Ethernet onboard, extended memory
NT255: Power supply module, 24 VDC input, M1 rack bus power distribution
MX213: Multiplexer module, 13-slot expansion, remote I/O rack extension
MX220: Multiplexer module, 20-slot, high-density rack expansion for large I/O counts

Sourcing Hard-to-Find & Obsolete EM200 Series Parts

Bachmann electronic has transitioned several early EM200 series modules to end-of-life status, with the EM203 and related first-generation Ethernet modules no longer listed in current production catalogs. For operators of legacy M1 systems, replacement procurement through the OEM channel is no longer a reliable path. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished EM200 series modules sourced from decommissioned industrial sites, system integrator stock, and authorized secondary market channels.

DriveKNMS provides lifecycle extension support for the EM200 range, including cross-reference verification between discontinued part numbers and current functional equivalents, firmware version documentation for legacy modules, and compatibility assessment for mixed-generation M1 rack configurations. For operators requiring long-term maintenance agreements on installed EM200 systems, DriveKNMS offers multi-year spare parts reservation contracts with guaranteed response times for critical replacement requests.

Quality Control for the EM200 Range

EM200 series modules present specific testing challenges due to their integrated backplane communication logic and managed Ethernet switch silicon. DriveKNMS applies a structured verification protocol to all EM200 units prior to dispatch. Each module undergoes visual inspection for backplane connector pin integrity, capacitor condition assessment, and conformal coating evaluation. Functional testing is conducted using a live M1 rack test bench running current MPC firmware, with Ethernet port throughput verified at 10 Mbit/s and 100 Mbit/s under sustained load. PROFINET IO device enumeration and Modbus TCP register read/write cycles are executed and logged for each unit. Modules exhibiting intermittent communication faults, elevated CRC error rates, or backplane bus timeout events are quarantined and not released for sale. All tested units are shipped with a test report documenting firmware version, MAC address, and pass/fail criteria results.
