Bachmann FastBus Fx210 Modules: FS211/N

Technical Dossier

Product Details And Specifications

Bachmann FastBus Fx210 Series: Comprehensive Module Range and Technical Overview

The Bachmann FastBus Fx210 series is a deterministic real-time control platform deployed across global heavy industry sectors including chemical processing plants, oil refineries, offshore platforms, nuclear power stations, and power generation facilities. Bachmann Electronic GmbH, headquartered in Feldkirch, Austria, engineered the Fx210 controller family to deliver high-availability redundancy, tight I/O integration, and cycle times suitable for turbine control, compressor management, and safety-instrumented systems. The FastBus backplane architecture enables high-speed parallel data transfer between CPU, I/O, and communication modules within a single rack. Installed base spans facilities operated by major energy and process industry operators across Europe, Asia-Pacific, and the Americas. Long-term spare parts availability is a primary operational requirement for sites running Fx210 infrastructure under deferred migration or extended maintenance schedules.

The Evolution of FastBus Fx210 Architecture

The Bachmann Fx210 platform was introduced as a direct successor to the Fx200-series controllers, consolidating I/O density and communication bandwidth onto a unified FastBus backplane. The FastBus internal bus operates at high-speed parallel transfer rates, a structural departure from the serial-bus topology used in the Fx100 and Fx200 generations. Early Fx210 deployments used dedicated point-to-point field wiring; subsequent hardware revisions introduced distributed I/O expansion via MX200 and MX213 remote I/O stations, reducing panel wiring complexity in large-scale installations.

The series matured through multiple firmware generations, with the M1 CPU module family (M1 Classic, M1 Advanced) serving as the primary processing engine. Communication capabilities expanded from proprietary FastBus-only configurations to include PROFIBUS-DP, Modbus TCP, IEC 61850, and DNP3 protocol adapters, enabling integration with SCADA systems and substation automation networks. As the Fx210 platform entered its mature lifecycle phase, Bachmann introduced the MX200 and MC200 successor families. A significant portion of Fx210 installations remain in active service under long-term maintenance contracts. OEM replacement modules are no longer manufactured for select variants, making certified refurbished and tested spare parts sourcing a critical procurement pathway for plant operators.

FastBus Fx210 Full Catalog & Functionalities (SKU List)

CPU & Controller Modules

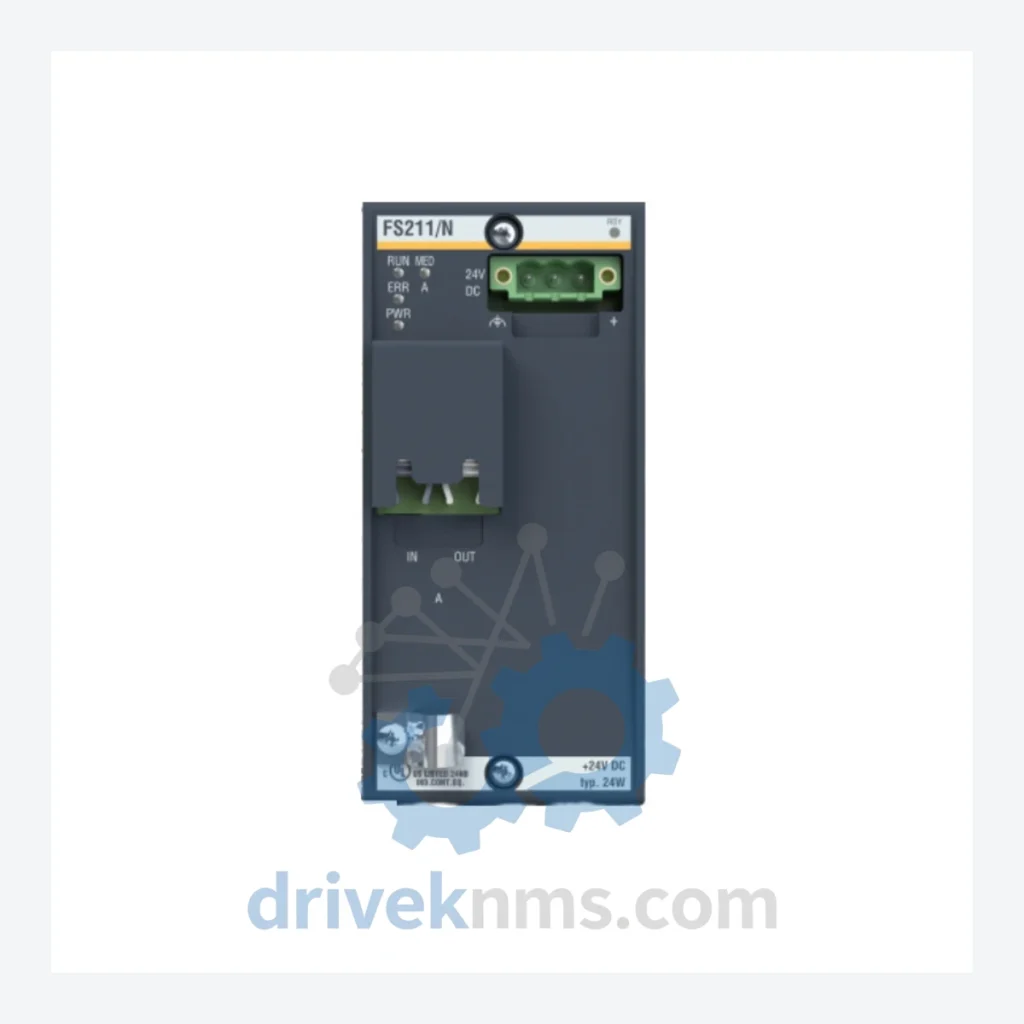

• FS211/N: FastBus Fx210 primary CPU module, real-time processing core for Fx210 rack systems
• FS211: Base CPU module, predecessor to FS211/N, standard clock variant for Fx210 racks
• FS212: Enhanced CPU module with extended memory for large application programs
• FS213: High-performance CPU module, reduced scan cycle time for fast-loop control

Digital Input (DI) Modules

• DI212: 16-channel 24 VDC digital input module, FastBus backplane interface
• DI216: 32-channel digital input module, high-density field signal acquisition
• DI232: 16-channel 120/230 VAC digital input module, mains-voltage field wiring

Digital Output (DO) Modules

• DO212: 16-channel 24 VDC digital output module, transistor sourcing outputs
• DO216: 32-channel digital output module, high-density actuator control
• DO232: 8-channel relay output module, dry-contact switching for high-load circuits

Analog Input (AI) Modules

• AI202: 8-channel analog input, 4–20 mA / 0–10 V configurable per channel
• AI204: 16-channel analog input module, 16-bit resolution, differential inputs
• AI206: 8-channel thermocouple/RTD input module for temperature measurement

Analog Output (AO) Modules

• AO202: 4-channel analog output module, 4–20 mA current loop, 12-bit resolution
• AO204: 8-channel analog output module, voltage and current output modes

Communication & Fieldbus Adapter Modules

• CM202: PROFIBUS-DP master/slave communication module, FastBus to fieldbus gateway
• CM206: Modbus TCP/RTU communication module, Ethernet port and serial RS-485
• CM212: CANopen communication module, node management and PDO mapping

Power Supply Modules

• PS210: 24 VDC rack power supply module, 10 A output, FastBus backplane power
• PS212: Redundant power supply module, hot-swap capable, dual-feed input

Sourcing Hard-to-Find & Obsolete FastBus Fx210 Parts

DriveKNMS maintains a dedicated inventory program for Bachmann FastBus Fx210 series modules, including variants that have reached end-of-manufacture status. For facilities operating Fx210 racks under long-term service agreements or deferred migration schedules, sourcing certified replacement modules is a primary maintenance challenge. DriveKNMS sources Fx210 modules through verified industrial surplus channels, decommissioned plant equipment, and authorized distributor overstock. All units are catalogued by part number, hardware revision, and firmware version where applicable. Customers requiring specific hardware revisions for compatibility with existing rack configurations can specify revision requirements at the time of inquiry. Emergency same-day quotation is available for critical plant shutdown situations.

Quality Control for the FastBus Fx210 Range

Each Bachmann Fx210 module processed by DriveKNMS undergoes a structured inspection and functional test protocol before dispatch. Visual inspection covers backplane connector pin condition, PCB surface integrity, capacitor condition, and label legibility. Functional testing is performed using a dedicated Fx210 test rack configured to replicate live backplane bus conditions. CPU modules are tested for boot sequence completion, application memory read/write integrity, and FastBus communication handshake with adjacent I/O modules. Digital I/O modules are tested channel-by-channel for correct switching logic and output drive capability. Analog modules are calibrated against traceable reference standards and verified across the full input/output range. Communication modules are tested for protocol stack initialization and data exchange with a reference master device. Modules that fail any test stage are quarantined and not offered for sale. Test records are retained and available upon request for quality-critical procurement processes.
