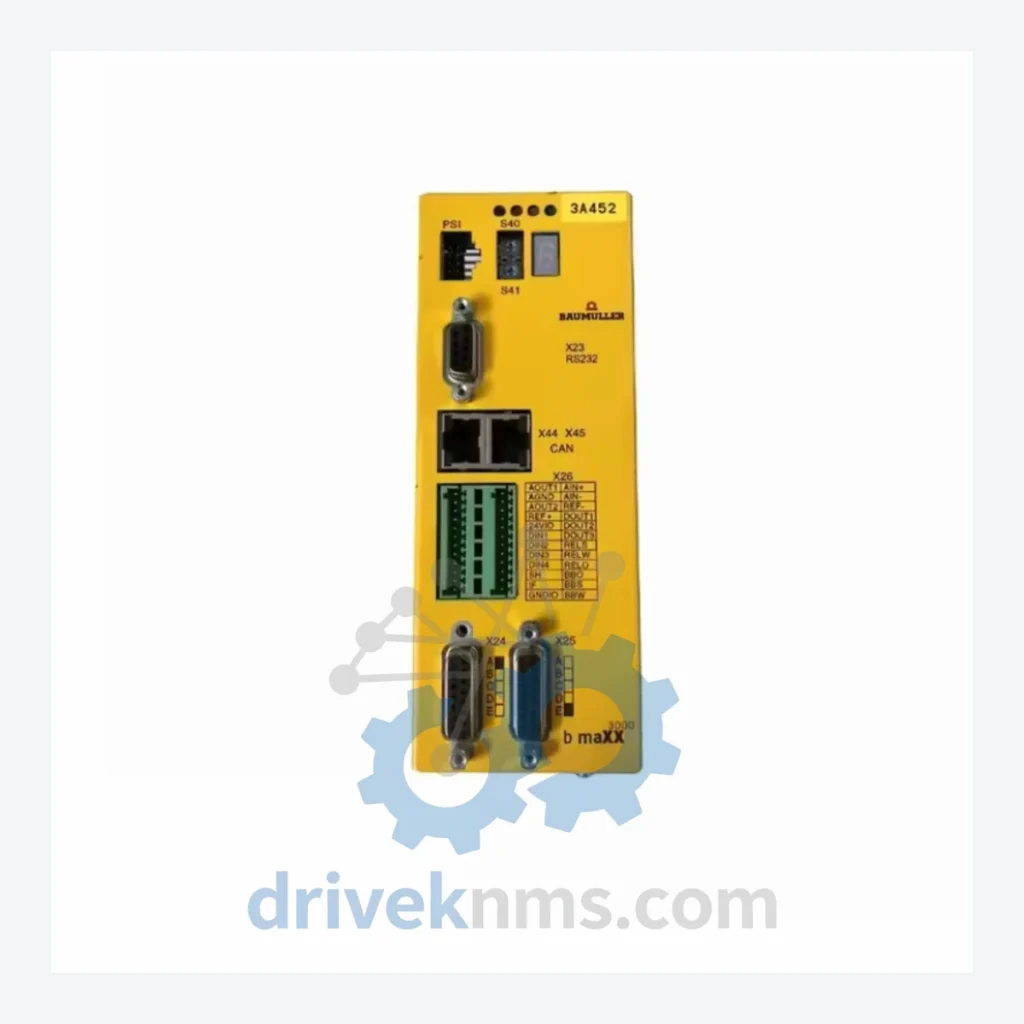

Baumuller BM3401-L1OOO-AEO00CB-O-00-O-0172-000 Servo Drive – Obsolete BM3400 Series Spare Part

When a Baumuller BM3401 servo drive fails on a production line built around the BM3400 series architecture, the consequences extend far beyond the cost of the component itself. A full system migration — replacing the drive platform, rewriting motion control programs, requalifying the machine, and absorbing unplanned downtime — routinely runs into hundreds of thousands of dollars, and in high-throughput manufacturing environments, the figure climbs higher. DriveKNMS maintains verified stock of the BM3401-L1OOO-AEO00CB-O-00-O-0172-000, a unit that has been out of standard production for years. Securing a spare now is not a procurement exercise — it is an asset protection decision.

Technical Specifications

Solving the Discontinued Hardware Crisis

The BM3400 series was deployed extensively in precision machine tool, printing, and packaging automation throughout the 1990s and 2000s. Many of these installations remain in productive service today — not because operators are unaware of newer platforms, but because the engineering cost of migration is prohibitive. A single BM3400-based axis controller may be deeply integrated with proprietary Baumuller fieldbus communication, custom cam profiles, and machine-specific parameter sets accumulated over years of tuning. Replacing the drive platform means replacing the control logic, the motor feedback interface, and in many cases the HMI. The capital and engineering hours required make migration a multi-year project.

For plant managers operating under these constraints, the calculus is straightforward: a verified spare drive extends the productive life of the asset by years, at a fraction of the cost of forced migration. The BM3401-L1OOO-AEO00CB-O-00-O-0172-000 is a direct hardware replacement within the BM3400 family. It does not require reprogramming of the motion controller or reconfiguration of the upstream PLC. The machine returns to production in hours, not months.

Facilities that have adopted a structured spare parts strategy for their Baumuller-equipped assets consistently report extended asset lifecycles of 5 to 10 years beyond the manufacturer's end-of-support date. The approach is not complicated: identify the single-point-of-failure components on each critical axis, secure verified stock of those components, and store them under appropriate conditions. The BM3401 drive is precisely the type of component that belongs in that inventory — it is non-repairable in the field, it is no longer available through standard distribution channels, and its failure results in immediate production loss.

Condition & Reliability Assurance

Every BM3401-L1OOO-AEO00CB-O-00-O-0172-000 unit processed by DriveKNMS passes a structured 5-step quality verification protocol before dispatch:

• Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy servo drives. Each unit is inspected for capacitor bulge, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned with manufacturer-grade replacements or rejected from stock.
• Firmware Version Verification: The firmware revision is confirmed and documented. Compatibility with the target control system version is verified prior to shipment where system information is provided by the customer.
• Pin and Connector Inspection: All connector pins, terminal blocks, and edge connectors are inspected under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned or the unit is rejected.
• Power Stage Functional Test: Where test equipment permits, the drive's power stage is exercised to confirm gate drive integrity and output stage response.
• Documentation and Traceability: Each unit is shipped with a condition report. New-in-box units are documented as such; refurbished units are clearly identified with the scope of work performed.

Key Features for System Maintenance

• Drop-in Replacement: The BM3401-L1OOO-AEO00CB-O-00-O-0172-000 installs directly into the existing BM3400 drive slot. No mechanical modification to the cabinet is required.
• No Reprogramming Required: Motion parameters, cam tables, and axis configurations stored in the upstream controller are not affected by a drive swap. The machine resumes operation with existing programs intact.
• Avoids Engineering Reconstruction Costs: Substituting a verified spare eliminates the need for control system redesign, motor feedback reconfiguration, and requalification testing — costs that routinely exceed the value of the machine itself in older installations.
• Supports Long-Term Spare Parts Inventory Planning: DriveKNMS can advise on multi-unit procurement strategies for facilities managing multiple BM3400-equipped machines, reducing per-unit cost and ensuring coverage across the fleet.

FAQ

What warranty applies to a discontinued part?
DriveKNMS provides a 90-day warranty covering functional defects on all refurbished units. New-in-box units carry a 12-month warranty. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All units are sourced through documented supply chains. New-in-box units are supplied in original Baumuller packaging where available. Refurbished units are inspected and tested as described above. We do not source from unverified secondary markets.

Should I buy more than one unit?
For any machine where the BM3401 is a single-point-of-failure component, holding at least one verified spare on-site is the minimum prudent position. For facilities with multiple affected machines, a fleet-level spare parts strategy — typically two to three units per drive type — provides meaningful protection against extended downtime. Available stock of discontinued components is finite and does not replenish. Procurement decisions deferred today are frequently unavailable options tomorrow.

Can DriveKNMS source other BM3400 series components?
Yes. Contact our technical team with your full part number list. We maintain stock across multiple BM3400 series variants and can advise on availability and lead times.
