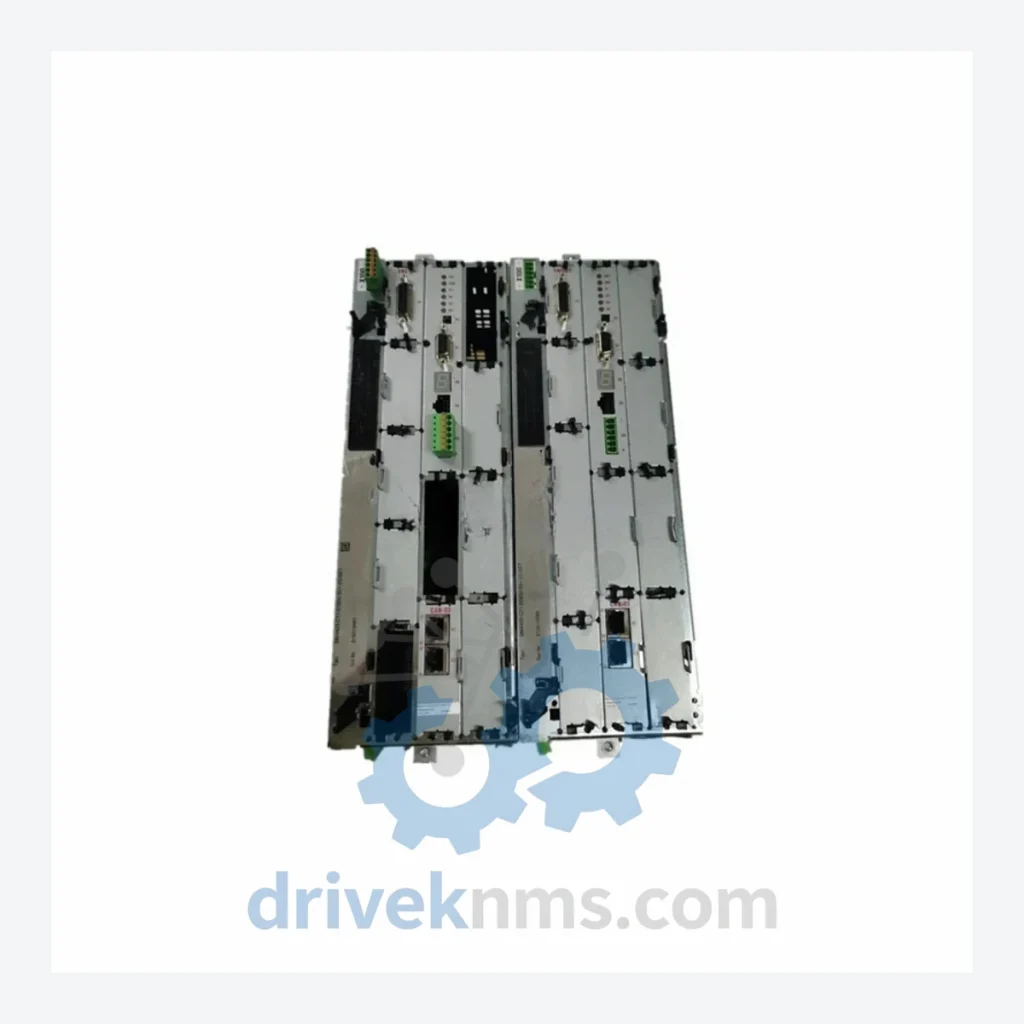

Baumuller BUM60-VC-AE-0036 AC Servo Drive – Obsolete BUM60 Series Spare Part

When a Baumuller BUM60-VC-AE-0036 servo drive fails on an active production line, the consequences extend far beyond the cost of the component itself. A full drive system retrofit — including new servo amplifiers, motor re-matching, cable harness replacement, PLC parameter migration, and recommissioning — routinely costs between $80,000 and $300,000 USD per axis, depending on machine complexity. For multi-axis systems built around the BUM60 platform, that figure multiplies accordingly. DriveKNMS maintains verified stock of the BUM60-VC-AE-0036 to eliminate that exposure. One unit, correctly sourced, preserves the operational integrity of an entire machine cell.

Technical Specifications

Note: Detailed electrical parameters (rated current, DC bus voltage, output frequency range) are confirmed on a per-unit basis prior to shipment. DriveKNMS does not publish unverified specifications.

Solving the Discontinued Hardware Crisis

The BUM60 series was Baumüller's core servo drive platform for industrial machine builders throughout the 1990s and into the 2000s. It was widely integrated into CNC machining centers, rotary printing presses, and high-speed packaging lines — applications where the servo axis is not a peripheral component but the primary motion control element. When Baumüller transitioned its product line toward the b maXX and BM4000/BM5000 platforms, BUM60 hardware entered end-of-life status. Baumüller ceased manufacturing replacement units and progressively discontinued spare parts support.

The problem for plant operators is structural: the BUM60 drive is deeply embedded in the machine's electrical architecture. The drive communicates with the CNC controller via proprietary interfaces, and the motor feedback system (resolver or encoder) is matched to the BUM60's input circuitry. Replacing the drive with a modern equivalent requires re-engineering the feedback loop, reconfiguring the controller interface, and in many cases, replacing the servo motor itself. This is not a swap — it is a capital project. For a machine that is otherwise mechanically sound and producing revenue, that project is difficult to justify.

The correct engineering decision, in most cases, is to source a verified replacement BUM60-VC-AE-0036 and restore the original configuration. This preserves the existing motor, the existing feedback wiring, and the existing CNC parameters. Downtime is measured in hours, not weeks. DriveKNMS specializes in exactly this scenario.

Condition & Reliability Assurance

Obsolete servo drives present specific failure modes that differ from standard electronic components. The BUM60-VC-AE-0036 units processed by DriveKNMS undergo a structured 5-step inspection protocol before any unit is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: DC bus capacitors and filter capacitors are measured for capacitance and ESR (equivalent series resistance). Units with capacitors showing more than 20% capacitance loss or elevated ESR are either recapped with equivalent-rated components or quarantined.
• Step 2 – Firmware Version Verification: Where accessible, the drive's firmware version is documented and cross-referenced against known compatibility records for BUM60 series CNC integrations. Version mismatches that could cause parameter incompatibility are flagged before shipment.
• Step 3 – Terminal and Connector Inspection: All power terminals, signal connectors, and resolver/encoder interface pins are inspected under magnification for oxidation, fretting corrosion, and mechanical deformation. Affected contacts are cleaned or the connector assembly is replaced.
• Step 4 – Power Stage Functional Test: The drive is energized under controlled conditions. Gate drive signals, IGBT switching behavior, and current feedback circuits are verified against expected operating parameters.
• Step 5 – Final Documentation: Each unit ships with an inspection record noting condition grade, capacitor status, firmware version (if applicable), and test date. This documentation supports the customer's internal maintenance records.

Key Features for System Maintenance

• Drop-in Replacement: The BUM60-VC-AE-0036 installs directly into the existing drive slot without mechanical modification. Existing motor cables, feedback cables, and control wiring connect to the same terminal layout.
• No Reprogramming Required: BUM60 drives store axis parameters in non-volatile memory. When replacing a failed unit with an identical model, the CNC controller retains its existing axis configuration. In most installations, no parameter re-entry is required at the drive level.
• Avoids Engineering Retrofit Costs: Sourcing a like-for-like replacement eliminates the need for a drive compatibility study, motor re-matching calculation, feedback interface redesign, and CNC parameter migration — work that typically requires a Baumüller-certified engineer and several days of machine downtime.
• Extends Asset Life by 5–10 Years: A machine built around the BUM60 platform that is otherwise in good mechanical condition can continue productive operation for a decade or more with access to verified spare drives. The economics are straightforward: the cost of one replacement drive is a fraction of the cost of machine replacement or full drive system retrofit.
• Supports Long-Term Spare Parts Strategy: DriveKNMS recommends that facilities operating BUM60-equipped machines maintain a minimum of one cold-spare drive per machine cell. Given the scarcity of remaining stock globally, procurement delay risk increases each year.

FAQ

Q: What warranty applies to an obsolete BUM60-VC-AE-0036 unit?
A: DriveKNMS provides a 90-day functional warranty on all tested and inspected units. The warranty covers failure under normal operating conditions and excludes damage caused by incorrect installation, overvoltage events, or environmental contamination.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: All units sourced by DriveKNMS are inspected for manufacturer markings, PCB construction, and component dating. Baumüller units have identifiable manufacturing characteristics that are verified during intake inspection. Inspection documentation is available on request.

Q: Should I buy one unit or stock multiple spares?
A: For any facility running more than one BUM60-equipped machine, stocking two to three units is the standard recommendation. Global availability of BUM60-VC-AE-0036 units is finite and declining. Procurement lead times from secondary market sources will increase over time. Purchasing spare inventory now, while stock exists, is the lower-cost option compared to emergency sourcing during an unplanned outage.

Q: Can DriveKNMS source other BUM60 series variants?
A: Yes. DriveKNMS maintains sourcing networks for the broader BUM60 family. Contact us with your specific part number for availability confirmation.
