Beijer Electronics E-Series Control Panels

Technical Dossier

Product Details And Specifications

Beijer Electronics E-Series Control Panels: Comprehensive Module Range and Technical Overview

The Beijer Electronics E-Series represents one of the most widely deployed Human-Machine Interface (HMI) platform families in global heavy industry. Installed across petrochemical complexes, nuclear power auxiliary systems, offshore oil & gas platforms, and continuous-process refineries, the E-Series established Beijer Electronics as a tier-one supplier of operator interface terminals in demanding 24/7 environments. The platform's ruggedized enclosure ratings, wide operating temperature tolerance (typically -20°C to +60°C), and compatibility with major PLC backplanes from Siemens, Allen-Bradley, Mitsubishi, and Omron made it a default specification in plant engineering standards throughout the 1990s and 2000s. Units such as the 02440G remain active in legacy installations where panel replacement would require full SCADA re-engineering — a cost-prohibitive undertaking for most plant operators.

The Evolution of E-Series Architecture

The Beijer Electronics E-Series evolved through three distinct hardware generations. The first generation (E100/E200 family, early 1990s) used monochrome STN LCD displays with membrane keypads and RS-232/RS-422 serial communication exclusively. Programming was performed via proprietary MAC Programmer+ software on DOS-based workstations. The second generation (E300/E600/E700/E900 family, mid-1990s to early 2000s) introduced color TFT displays, expanded driver libraries, and early Ethernet options on select models. The third generation (E1000/E1050/E1060/E1070 family, 2000s onward) added USB host ports, CF card media, and the transition to the EXTER and iX Developer software environment. The 02440G panel belongs to the mature second/third-generation transition period, featuring a compact form factor suited for retrofit installations in existing panel cutouts. Compatibility across generations is limited: E100/E200 projects require migration to newer driver sets when moving to E1000-class hardware, and recipe/data block structures are not directly portable without conversion utilities in iX Developer.

E-Series Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the Beijer Electronics E-Series and associated control panel product range. Units are classified by primary function:

Operator Terminals / HMI Panels:

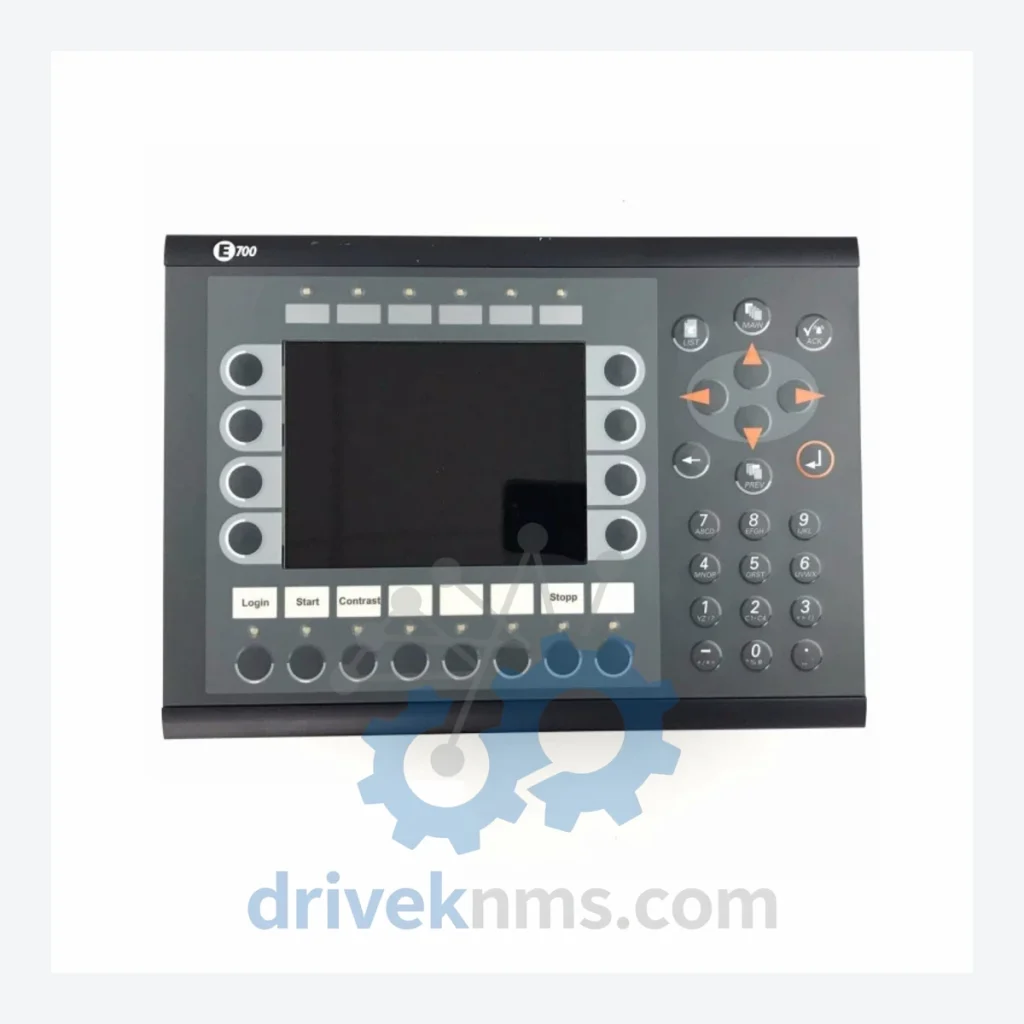

• 02440G: Compact E-Series operator panel, serial multi-protocol, membrane keypad interface
• E100: Entry-level monochrome HMI, RS-232 single-port, 4-line text display
• E200: Monochrome graphic HMI, 128×64 px STN LCD, RS-232/RS-422 dual port
• E300: Mid-range color TFT HMI, 5.7-inch display, multi-driver serial support
• E600: 6.5-inch color TFT, expanded tag capacity, analog resistive touch
• E700: 7.5-inch color TFT, USB programming port, CF card slot, Ethernet option
• E900: 9.4-inch color TFT, high-resolution graphic HMI, dual serial + Ethernet
• E1000: 10.4-inch color TFT, iX Developer platform, USB host, 256 MB flash
• E1050: 10.4-inch widescreen TFT, enhanced brightness, CF + USB dual media
• E1060: 10.4-inch high-brightness TFT, stainless steel bezel option, IP65 front
• E1070: 10.4-inch TFT, integrated web server, VNC remote access, 512 MB RAM

Communication & Connectivity Modules:

• JC-E1ETH: Ethernet expansion module for E700/E900 base units, 10/100 Mbps
• JC-E1COM: Isolated RS-485 serial expansion card, DIN-rail mount adapter
• JCBP-E1: Backplane interface adapter for legacy E200/E300 to E1000 migration

Power Supply & Accessories:

• E-PWR-24V: 24 VDC regulated panel power supply, 2A, DIN-rail, E-Series compatible
• E-MEM-CF512: 512 MB CompactFlash card, pre-formatted for E1000/E1050/E1060/E1070

Sourcing Hard-to-Find & Obsolete E-Series Parts

Beijer Electronics has formally discontinued several E-Series product lines, including the E100, E200, E300, and E600 families. OEM new-stock availability from authorized distributors is exhausted for these models. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished E-Series units sourced from decommissioned plant equipment, controlled factory shutdowns, and OEM overstock liquidations. For the 02440G and comparable compact panel variants, DriveKNMS provides: (1) unit-level functional testing against original Beijer Electronics communication protocol specifications; (2) display backlight replacement service for units exhibiting luminance degradation; (3) firmware version verification and, where applicable, re-flashing to the last stable release; (4) 12-month operational warranty on all refurbished units. Customers operating legacy E-Series installations in regulated industries (nuclear auxiliary, pharmaceutical batch control, water treatment SCADA) are advised to establish a minimum buffer stock of two spare units per installed panel type to mitigate unplanned downtime risk during the extended lead times typical of obsolete HMI sourcing.

Quality Control for the E-Series Range

E-Series panels present specific test challenges due to their integrated backplane communication architecture and proprietary serial driver stacks. DriveKNMS applies the following test protocol to all E-Series units prior to dispatch: (1) Power-on self-test (POST) verification — unit must complete internal diagnostics without error codes on display; (2) Display uniformity check — full-screen white, black, red, green, and blue test patterns to identify dead pixels, backlight non-uniformity, or touch calibration drift; (3) Serial port loopback test — RS-232 and RS-422/RS-485 ports tested at 9600, 19200, and 38400 baud with hardware handshaking verification; (4) Driver communication simulation — where test equipment permits, units are connected to a live PLC or protocol simulator to verify tag read/write integrity across the driver library; (5) Memory integrity scan — internal flash and any installed CF card are verified for read/write consistency and absence of bad sectors; (6) Enclosure inspection — front bezel, membrane keypad actuation force, and rear connector integrity are physically inspected and documented. All test results are logged and available to customers upon request.
