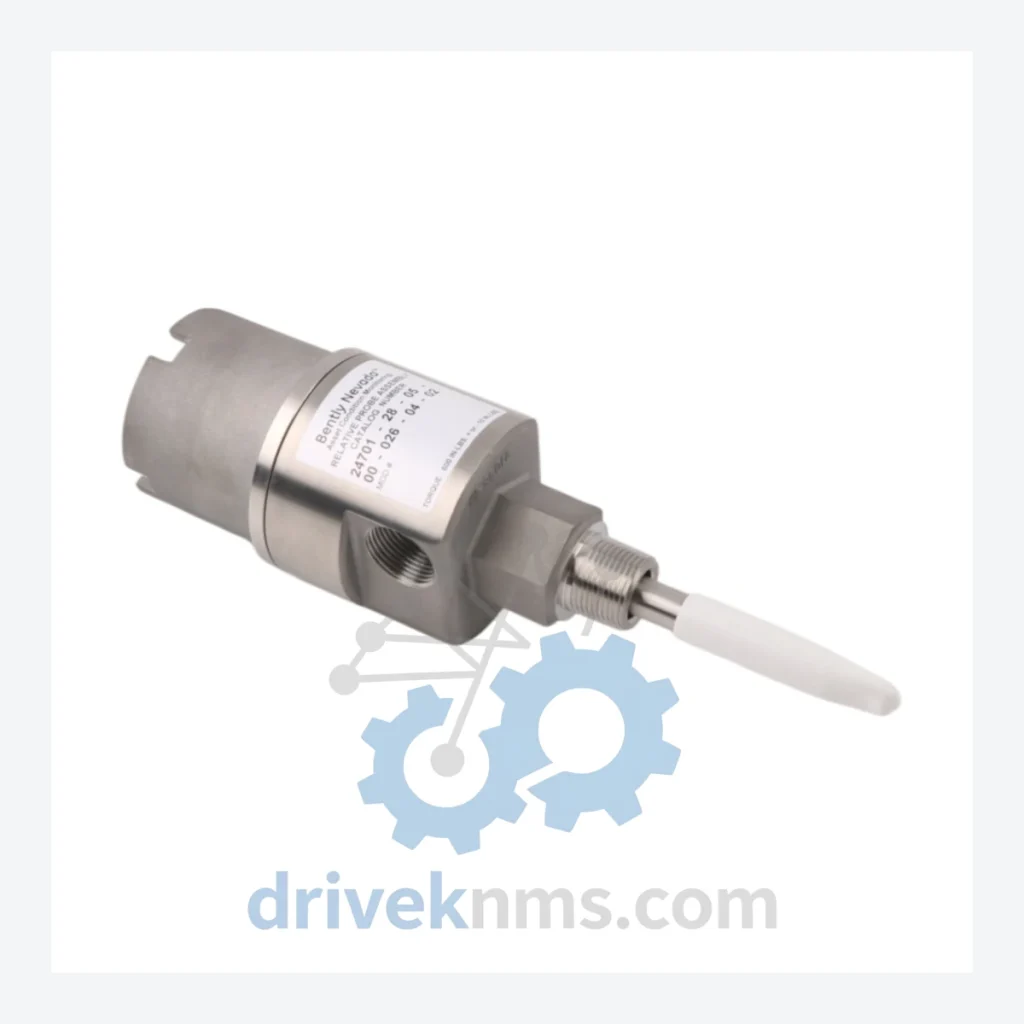

Bently Nevada 24701-28-05-05-105-03-02 Proximity Probe Housing Assembly – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 24701-28-05-05-105-03-02 Proximity Probe Housing Assembly – Obsolete 3300 Series Spare Part

When a proximity probe housing assembly fails on a turbomachinery protection system, the consequences extend far beyond a line item on a maintenance budget. The Bently Nevada 3300 Series eddy-current proximity system is the backbone of vibration and position monitoring on gas turbines, steam turbines, compressors, and large rotating machinery across refineries, power generation facilities, and petrochemical plants worldwide. A single failed housing assembly — left unresolved — forces plant engineers into a binary choice: source the obsolete part, or commit to a full system migration that routinely costs USD $500,000 to $2,000,000 per train, excluding production downtime.

DriveKNMS holds verified physical stock of the Bently Nevada 24701-28-05-05-105-03-02 Proximity Probe Housing Assembly. This is not a catalog listing. Inventory is finite and allocated on a first-confirmed basis.

Technical Specifications

Note: Electrical parameters specific to probe gap voltage, sensitivity, and extension cable length are configuration-dependent. Contact DriveKNMS with your full system configuration for compatibility verification before ordering.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for turbomachinery protection monitoring for decades. Its eddy-current proximity transducer architecture — comprising the probe, extension cable, and proximitor — operates as a matched system. The housing assembly is the mechanical and environmental interface that protects probe integrity under continuous high-temperature, high-vibration operating conditions.

GE / Baker Hughes formally discontinued the 3300 Series product line, redirecting customers toward the 3500 Series platform. The migration path is technically sound but financially severe. A full 3500 Series retrofit on a single turbine train requires new rack hardware, new transducers, new cabling, reconfiguration of trip setpoints, and — critically — a planned shutdown window that many continuous-process facilities cannot schedule without significant production loss.

For plant asset managers operating on a 5-to-10-year equipment lifecycle extension strategy, the calculus is straightforward: sourcing a verified 24701-28-05-05-105-03-02 housing assembly at a fraction of the retrofit cost preserves the existing monitoring architecture, maintains calibrated alarm and trip setpoints, and defers capital expenditure to a planned budget cycle rather than an emergency one. The housing assembly is not a consumable — it is a structural component. When it fails, the entire probe channel is compromised. Delaying replacement is not a maintenance decision; it is an operational risk decision.

Facilities running legacy Bently Nevada 3300 systems alongside older DCS platforms — including Honeywell TDC 3000, ABB Advant, or Foxboro I/A Series — face compounded obsolescence risk. The monitoring system and the control system are both past end-of-life. In this environment, every verified spare part in inventory represents months of additional operational continuity without a forced capital project.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality assurance protocol to all obsolete and aged inventory before shipment:

1. Visual and Mechanical Inspection: Housing integrity check for cracks, thread damage, and seal condition. Any unit with compromised mechanical structure is rejected.
2. Electrolytic Capacitor Assessment: Where applicable to associated electronics, capacitor aging and ESR (Equivalent Series Resistance) are evaluated. Aged electrolytic capacitors are a primary failure mode in legacy instrumentation stored beyond 10 years.
3. Pin and Connector Corrosion Audit: All electrical contact points are inspected under magnification for oxidation, pitting, and contamination. Corroded contacts are cleaned to IPC standards or the unit is downgraded.
4. Firmware and Configuration Verification: For units with embedded configuration, firmware version is documented and cross-referenced against known compatible revisions for the 3300 Series ecosystem.
5. Functional Bench Test: Where test fixtures permit, units undergo functional verification prior to packaging. Test records are available upon request for critical applications.

Units that do not pass all five stages are not offered for sale. DriveKNMS does not ship untested stock for safety-critical turbomachinery applications.

Key Features for System Maintenance

• Drop-in replacement: The 24701-28-05-05-105-03-02 is a direct mechanical and electrical replacement within the 3300 Series probe system. No re-engineering of the probe channel is required.
• No reprogramming required: Replacing the housing assembly does not alter probe sensitivity, gap voltage calibration, or proximitor configuration. Existing alarm and trip setpoints remain valid.
• Avoids engineering rework costs: A forced migration to 3500 Series hardware requires licensed Bently Nevada engineers, new cable routing, and a full functional acceptance test. Sourcing this spare eliminates that cost entirely for the current budget cycle.
• Preserves existing safety certification: Facilities with SIL-rated machinery protection loops benefit from maintaining the certified hardware configuration rather than triggering a re-validation process under IEC 61511.
• Long-term stockpiling strategy: Given OEM discontinuation, procurement teams managing multi-train facilities are advised to secure multiple units. DriveKNMS can discuss volume allocation and reserved inventory arrangements for facilities with documented long-term maintenance plans.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on verified New Old Stock (NOS) units. Warranty covers functional failure under normal operating conditions and excludes damage from installation error or operating environment outside original OEM specifications.

How do I confirm the unit is new or quality-refurbished?
Each unit shipped by DriveKNMS is accompanied by an inspection report documenting condition grade, QA steps completed, and — where applicable — functional test results. NOS units retain original OEM packaging where available. Refurbished units are clearly labeled with refurbishment date and technician reference.

Should I buy more than one unit?
For any facility operating more than one turbine or compressor train on a 3300 Series monitoring system, holding a minimum of two spare housing assemblies is a defensible maintenance strategy. OEM supply is permanently closed. Secondary market availability will continue to tighten. The cost of a second spare unit is negligible relative to the cost of an unplanned shutdown while sourcing becomes the critical path.

Can DriveKNMS source other 3300 Series components?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components. Contact us with your full bill of materials for a sourcing assessment.
