Bently Nevada 32000 Series Modules - 32000-28-05-06-020-07-02

Technical Dossier

Product Details And Specifications

Bently Nevada 32000 Series Technical Notes

The Bently Nevada 32000 Series represents one of the most widely deployed proximity probe and transducer assembly systems in global heavy industry. Installed across petrochemical refineries, nuclear power stations, offshore platforms, and large-scale rotating machinery facilities, the 32000 Series established the foundational architecture for eddy-current-based shaft displacement monitoring. Its modular probe-extension cable-driver topology became the de facto standard for API 670-compliant vibration and position measurement systems throughout the 1980s and 1990s. Facilities operating steam turbines, gas compressors, centrifugal pumps, and large induction motors continue to rely on 32000 Series components as primary or redundant sensing elements, making long-term parts availability a critical operational concern for maintenance engineers worldwide.

The Evolution of 32000 Series Architecture

The 32000 Series was introduced by Bently Nevada Corporation (subsequently acquired by GE in 2002, and later integrated into Baker Hughes in 2017) as a standardized proximity transducer system designed to interface with the 3300 and 3500 Series monitoring racks. The system operates on the eddy-current principle: a high-frequency oscillator drives the probe tip coil, and changes in the conductive target gap modulate the oscillator output, producing a DC voltage proportional to displacement.

Early 32000 configurations used a three-component architecture: the probe body (housing assembly), the extension cable, and the proximitor/driver module. This separation allowed field replacement of individual components without disturbing the entire measurement chain. The 32000 Series was designed for 5-meter and 9-meter system lengths, with the extension cable bridging the gap between the probe tip and the proximitor mounted in the junction box or rack.

Compatibility considerations are significant: 32000 Series probes are not directly interchangeable with 3300 XL probes without recalibration of the proximitor output scale factor. Engineers performing upgrades must verify the driver module gap voltage range and scale factor (typically -200 mV/mil or -7.87 V/mm) against the monitor module input specification before substitution.

32000 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Bently Nevada 32000 Series proximity transducer system. Each entry reflects a distinct assembly configuration defined by probe diameter, cable length, connector type, and housing specification.

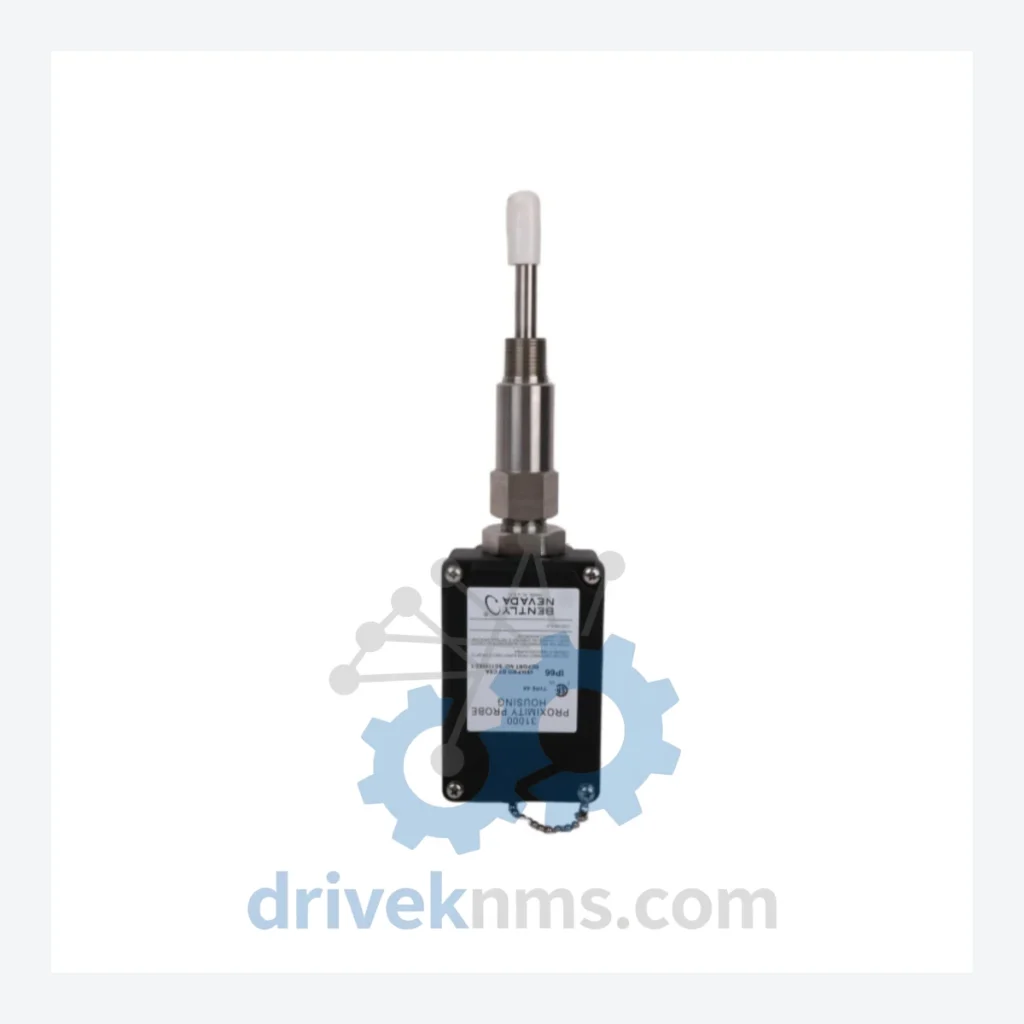

32000-28-05-06-020-07-02: 8mm proximity probe housing assembly, 5m system, standard temperature, 020 cable, reverse mount configuration.
32000-28-05-06-020-07-01: 8mm proximity probe housing assembly, 5m system, standard temperature, 020 cable, standard mount configuration.
32000-28-05-06-050-07-02: 8mm proximity probe housing assembly, 5m system, standard temperature, 050 cable, reverse mount.
32000-28-09-06-020-07-02: 8mm proximity probe housing assembly, 9m system, standard temperature, 020 cable, reverse mount.
32000-28-09-06-020-07-01: 8mm proximity probe housing assembly, 9m system, standard temperature, 020 cable, standard mount.
32000-28-05-06-050-07-01: 8mm proximity probe housing assembly, 5m system, standard temperature, 050 cable, standard mount.
32000-28-09-06-050-07-02: 8mm proximity probe housing assembly, 9m system, standard temperature, 050 cable, reverse mount.
32000-28-09-06-050-07-01: 8mm proximity probe housing assembly, 9m system, standard temperature, 050 cable, standard mount.
32000-28-05-06-020-08-02: 8mm proximity probe housing assembly, 5m system, high-temperature rated, 020 cable, reverse mount.
32000-28-05-06-020-08-01: 8mm proximity probe housing assembly, 5m system, high-temperature rated, 020 cable, standard mount.
32000-28-09-06-020-08-02: 8mm proximity probe housing assembly, 9m system, high-temperature rated, 020 cable, reverse mount.
32000-28-09-06-020-08-01: 8mm proximity probe housing assembly, 9m system, high-temperature rated, 020 cable, standard mount.
32000-28-05-06-050-08-02: 8mm proximity probe housing assembly, 5m system, high-temperature rated, 050 cable, reverse mount.
32000-28-09-06-050-08-01: 8mm proximity probe housing assembly, 9m system, high-temperature rated, 050 cable, standard mount.
32000-28-09-06-050-08-02: 8mm proximity probe housing assembly, 9m system, high-temperature rated, 050 cable, reverse mount.
32000-28-05-06-050-08-01: 8mm proximity probe housing assembly, 5m system, high-temperature rated, 050 cable, standard mount.

Sourcing Hard-to-Find & Obsolete 32000 Series Parts

The Bently Nevada 32000 Series has been in end-of-life status for the majority of its sub-assemblies since the mid-2010s. GE/Baker Hughes no longer manufactures new 32000 Series probe housing assemblies through standard distribution channels. This creates a sourcing gap for facilities that cannot undertake a full 3300 XL or 3500 Series upgrade within their current maintenance cycle — a common constraint in nuclear-licensed facilities, long-term petrochemical contracts, and legacy turbine OEM agreements where instrumentation change management requires extended regulatory approval timelines.

For facilities requiring a documented upgrade path, DriveKNMS can supply both the legacy 32000 component for immediate replacement and technical guidance on equivalent 3300 XL assemblies for planned future migration, allowing maintenance teams to manage the transition on their own schedule without forced outage risk.

Quality Control for the 32000 Series Range

Proximity probe housing assemblies in the 32000 Series present specific quality verification challenges due to the precision-wound coil embedded in the probe tip and the impedance-matched characteristics of the extension cable. DriveKNMS applies the following test protocol to all 32000 Series units prior to dispatch:

Coil Impedance Verification: Each probe tip is measured for inductance and resistance at 1 MHz using an LCR meter. Values are compared against Bently Nevada factory specification bands for the 8mm probe geometry. Units outside tolerance are rejected.
Cable Continuity and Insulation Resistance: Extension cables are tested for conductor continuity, shield integrity, and insulation resistance (minimum 100 MΩ at 500 VDC) along the full cable length.
System Gap Voltage Calibration Check: Where a matched proximitor is available, the probe-cable-driver system is assembled and the gap voltage output is verified against the standard -200 mV/mil scale factor at the nominal 50-mil (1.27 mm) calibration gap using a certified non-conductive gap tool and AISI 4140 steel target.
Connector Inspection: All connectors are inspected for pin integrity, thread condition, and O-ring seating. Connectors showing corrosion, deformation, or thread damage are replaced before dispatch review.
Documentation: Each unit ships with a test record identifying the serial number, test date, measured parameters, and technician ID. Calibration equipment traceability certificates are available on request.
